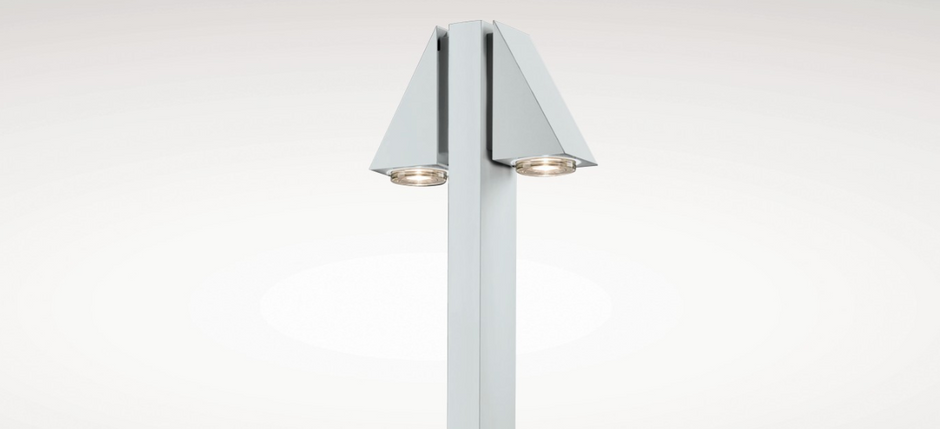

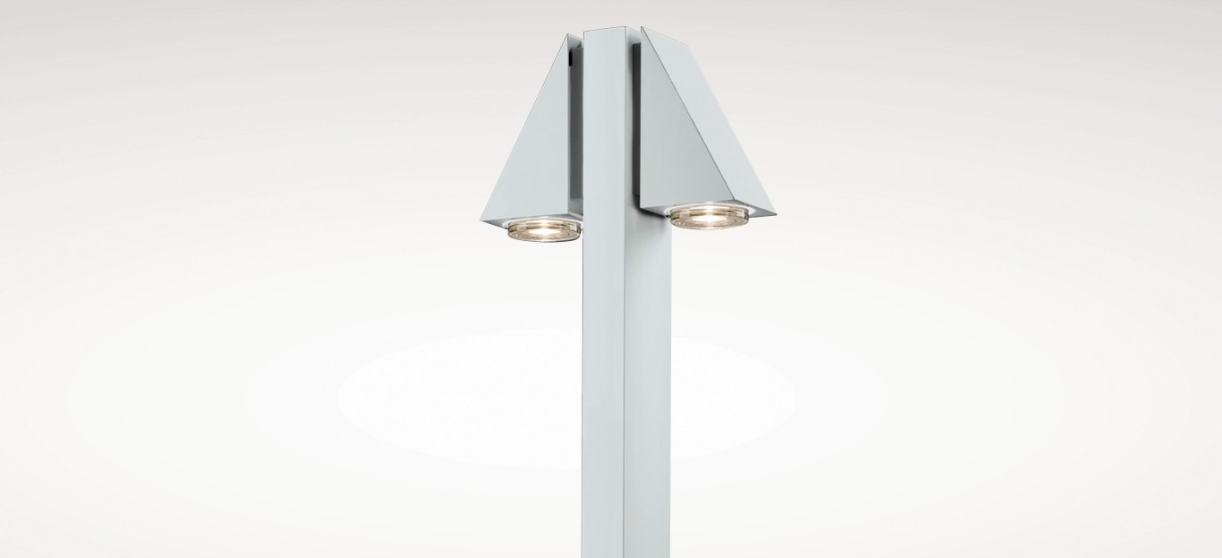

TRILUX BOLLARD HS 80 M2 RM1L/600-840

Simple, but far from boring

The designer Peter Zegers has a uniquely fine feeling for an unadorned, chaste design language that still proves to be exciting. In accordance with a strict, mathematical basic order, the wall and bollard luminaires of the HS series enrich any type of architecture.

Luminaire type
Decorative bollard luminaire. With integrated LED system.

Applications
For decorative, accentuating lighting solutions in outdoor areas, for building access areas, facades, paths and green areas.

Mounting methods
Installation of bollard luminaire via direct fastening of baseplate to solid underground or with use of an underground support in the substrate to be ordered separately.

Optical system
As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. Cylindrical cover of durable borosilicate glass.

LED system
Luminaire luminous flux 135 lm, connected load 8,00 W, luminous efficiency of luminaire 75 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Further LED light colours available on request.

Luminaire body
Luminaire body of cast aluminium components and cover glass. Colour anthracite, similar to DB 703 with metal effect, powder-coated, highly weather resistant. Sea weather-suitable coating on request.

Electrical connection
Electrical connection to 3-pole connection terminal to 4?mm² on connection unit of the flange plate.

Electrical version
With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
