Control Panels (16xxx)

 The 16xxx Series is a range of DALI-compatible button panels that allow control of the lighting system.

The buttons have LEDs indicating the selected scene. Each module is fitted with an infrared receiver that gives the option of remote operation using DIGIDIM hand-held remote control.

The 16xxx control panels are fully programmable in Helvar’s Designer or Toolbox software.

 Key Features

  • Range of switch combinations, including customisable versions
  • LED brightness programmable
  • Suited for UK back box only

 Fascia Options

16xAB: Antique bronze

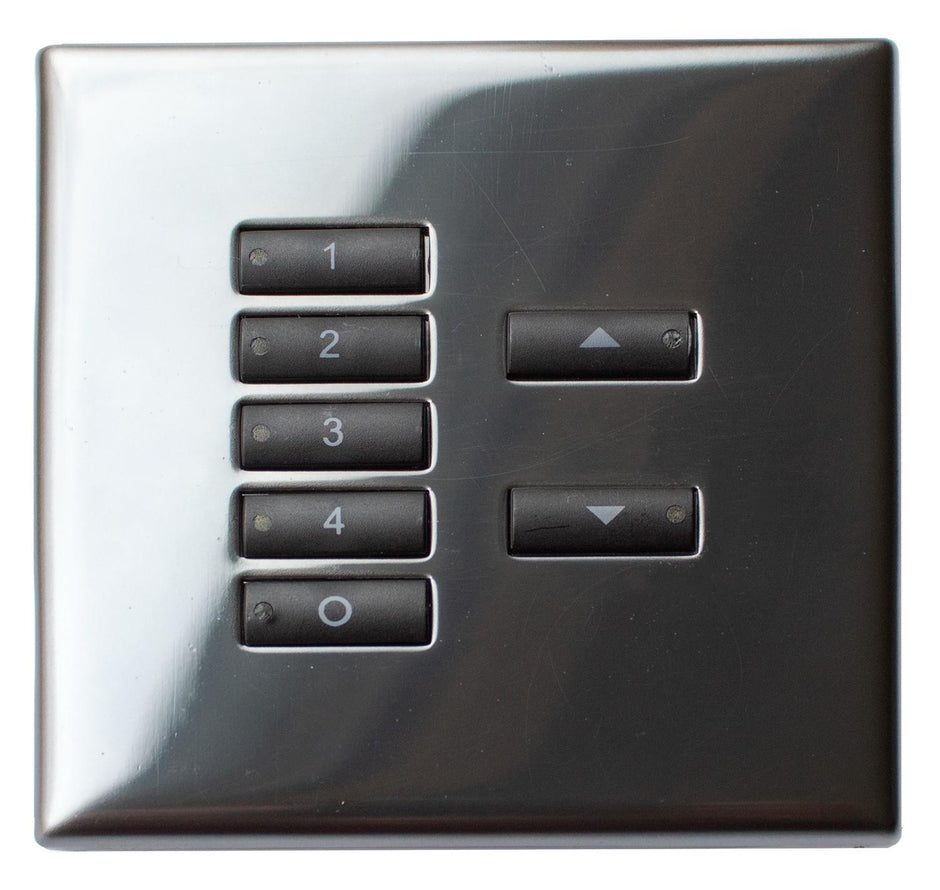

16xBN: Black nickel

16xMS: Mirrored stainless

16xPB: Polished brass

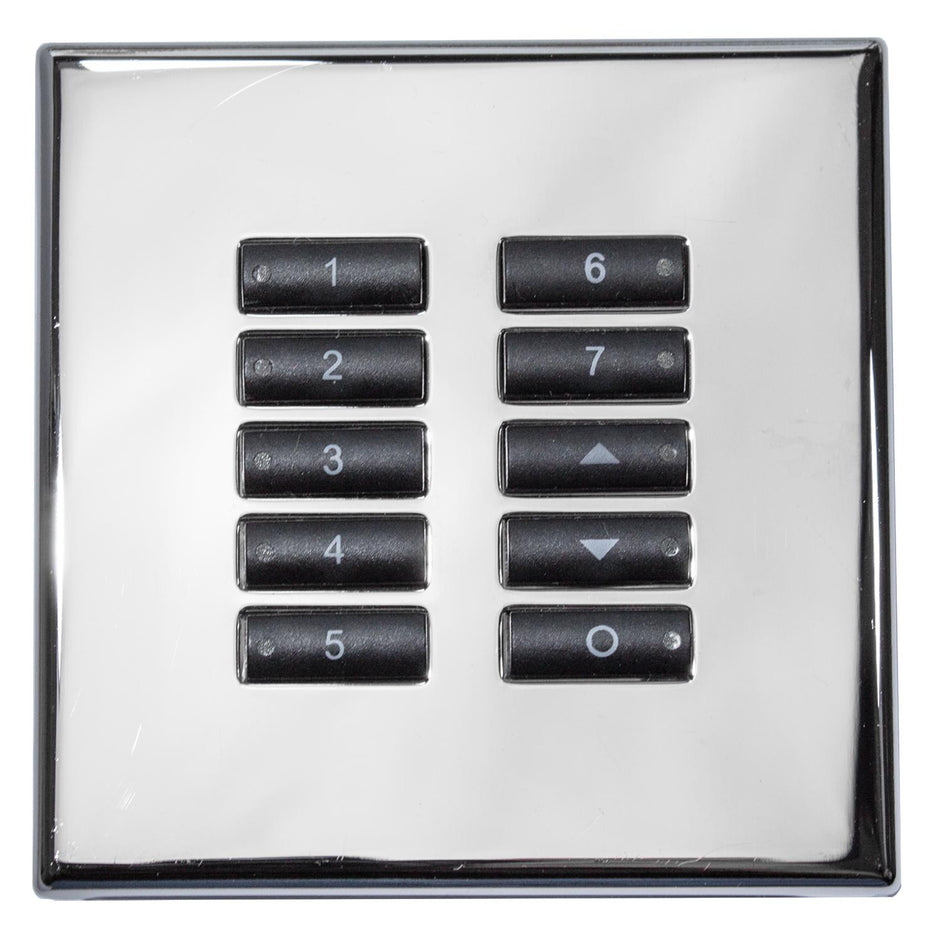

16xPN: Polished nickel

16xSS: Stainless steel

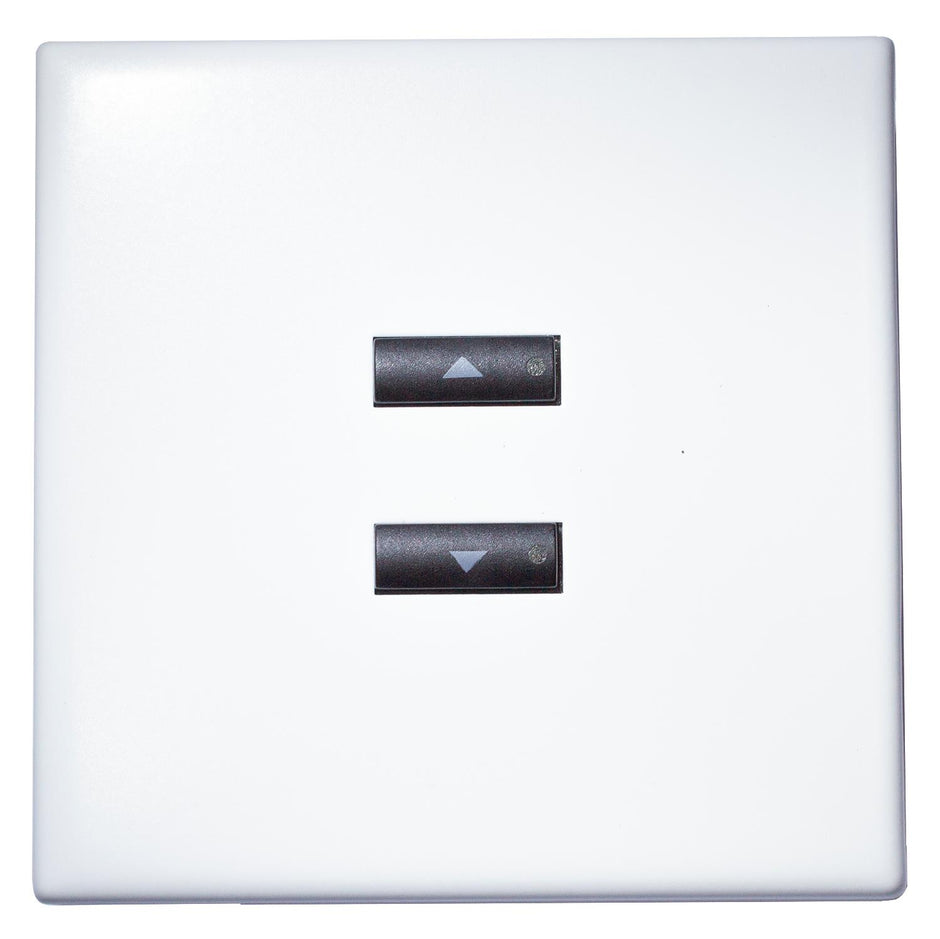

16xWH: Painted white

Customisable Versions

Both the button layout of the panels and the images or labels that are printed on each button can be customised:

  • Any button layout can be specified to a maximum of two columns of five buttons.
  • The image or labels printed on the buttons can be chosen from the gallery shown on the next page.
  • Other images or labels to meet individual tastes or themes can be tailored upon request.

Technical Data


2-pole connector block, rising clamp terminals, captive screw Wire section: 0.5 mm² – 2.5 mm² Recommended: 1 mm² – 1.5 mm² Max. length: 300 m @ 1.5 mm²

Cable rating:

All cables must be mains rated.


DALI supply input:

13 V to 22.5 V

DALI consumption:

10 mA


IR frequency:

36 kHz

Mechanical data


86 mm × 86 mm × 25 mm


150 g


Buttons: black plastic Fascia: metal


Mount to back box

IP code:


Operating conditions

Ambient temperature:

0 °C to +40 °C

Relative humidity:

Max. 90 %, noncondensing

Storage temperature:

–10 °C to +70 °C

Conformity and standards

EMC emission:

EN 55015

EMC immunity:

EN 61547


EN 61347-2-11


Complies with WEEE and RoHS directives.


EN 62386

Software compatibility


4.2.18 or higher


2.3.3 or higher
