Description
EnOcean Switches (18xx)
The 18xx wireless switch modules are EnOcean-compatible and allow wireless control of a Helvar DALI system.
The switches communicate with the lighting network via a Helvar 434 EnOcean Gateway, which supports up to 20 EnOcean switch panels.
The switches are batteryless, thanks to energy harvesting technology, and are maintenance-free. Energy is generated by pressing the EnOcean button, and a radio signal is sent to the Gateway. Similarly, a radio signal is sent when the button is released, allowing for dimmer and blinds control.
The EnOcean switches are fully programmable in Helvar’s Designer or Toolbox software.
Key Features
- Choice of single or dual rocker, and black (B) or white (W) panels.
- Self-power: batteryless and wireless
- EnOcean RF technology
- Easy installation:
- double-sided mounting film (included)
- screwed onto flat surfaces
- back box
Product Order Codes
Stainless steel frame

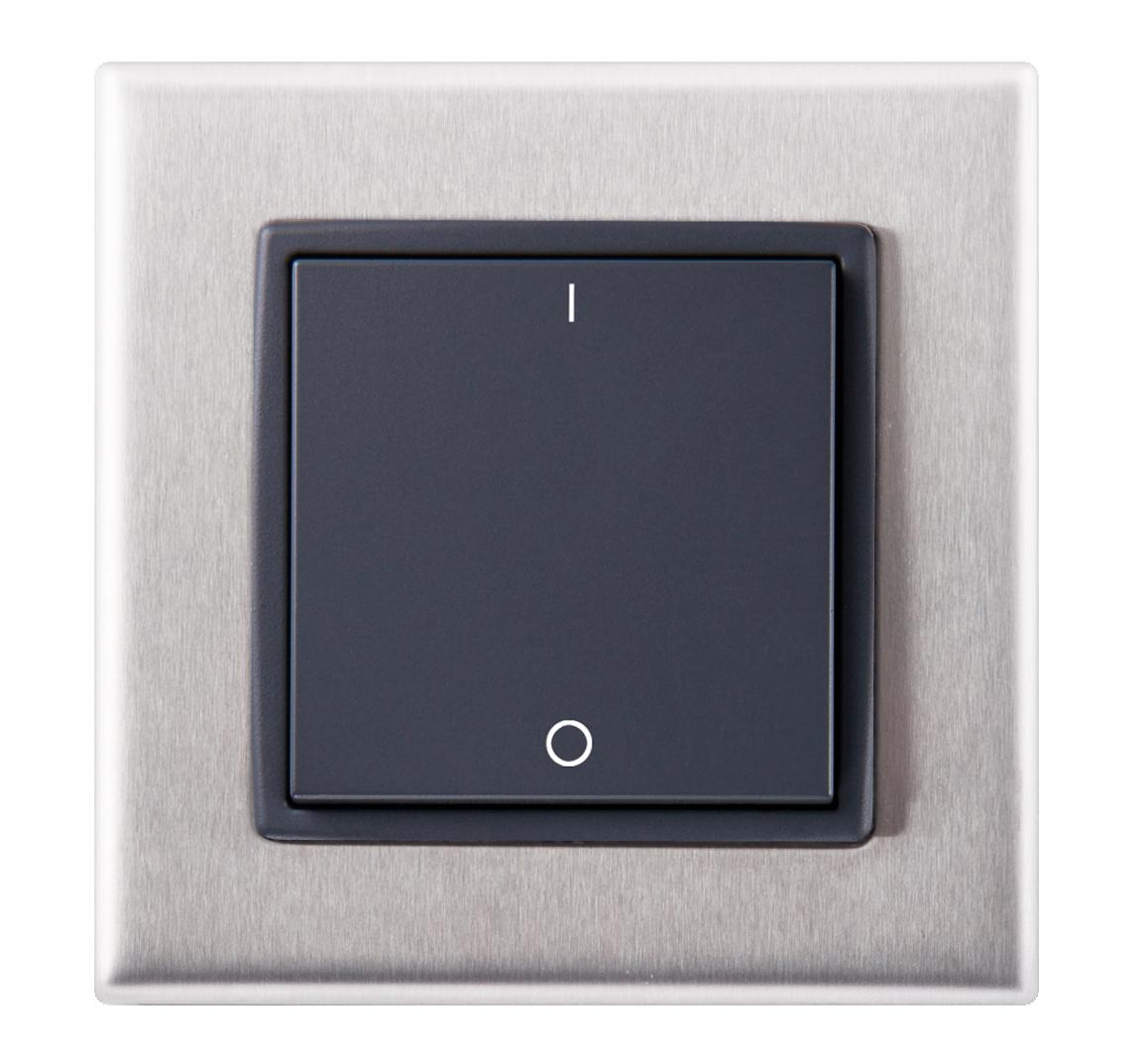

Single Rocker Switch: 181B (black) / 181W (white)

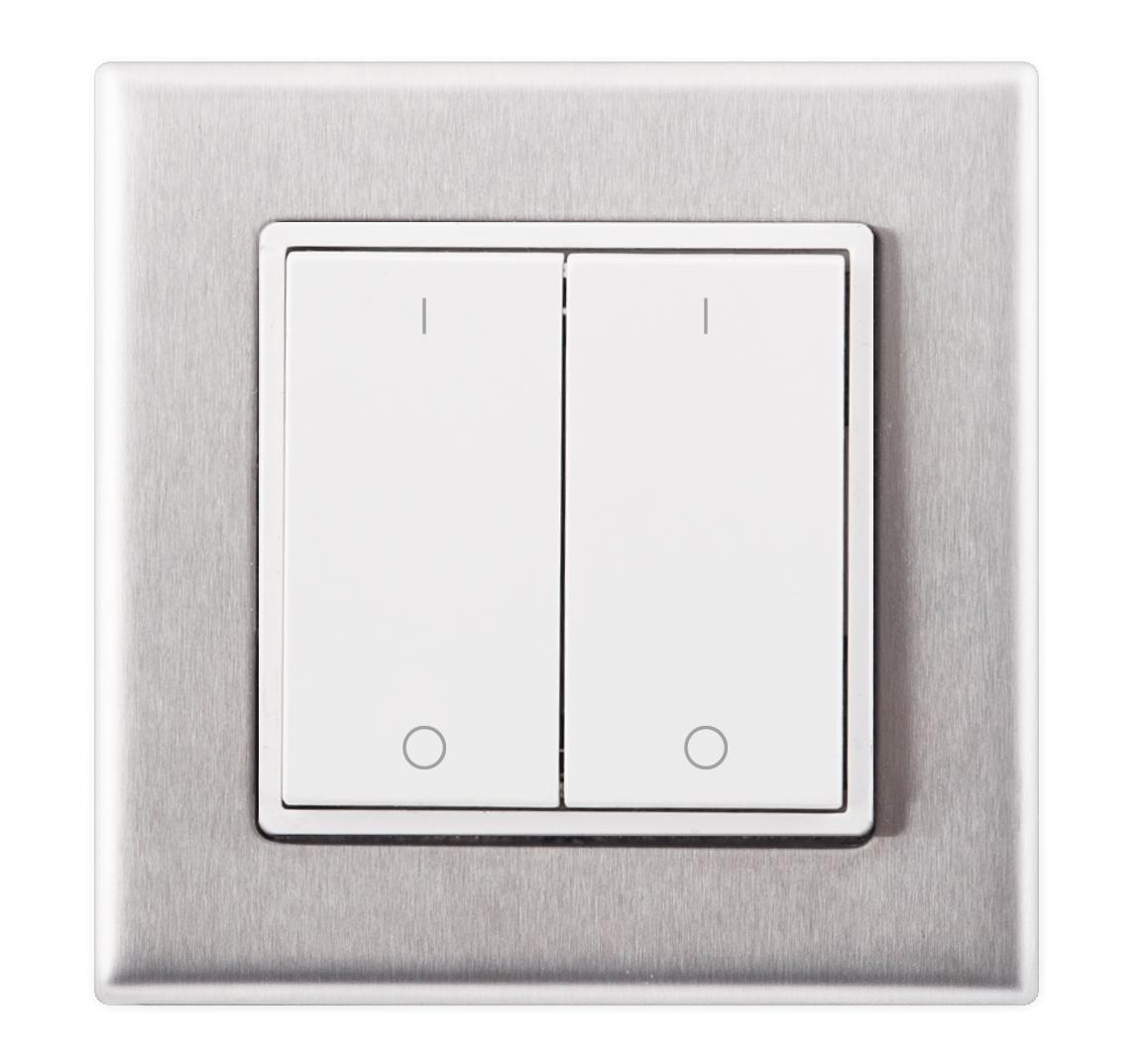

Dual Rocker Switch: 182B (black) / 182W (white)
Plastic frame

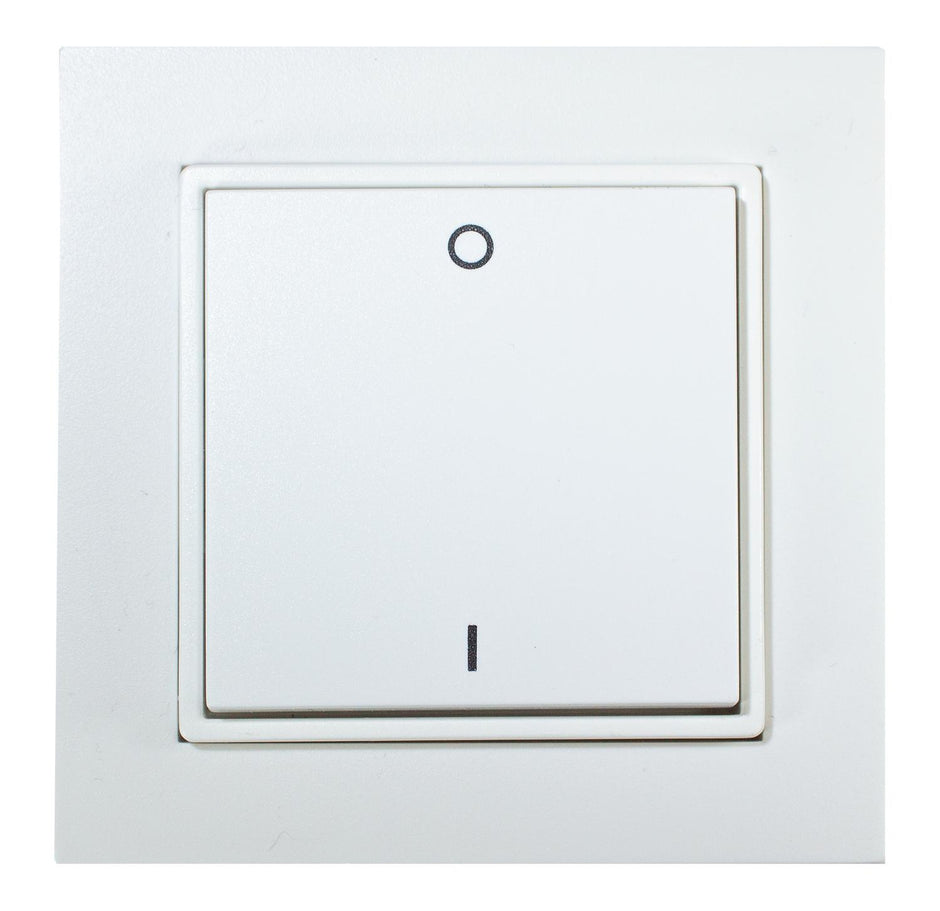

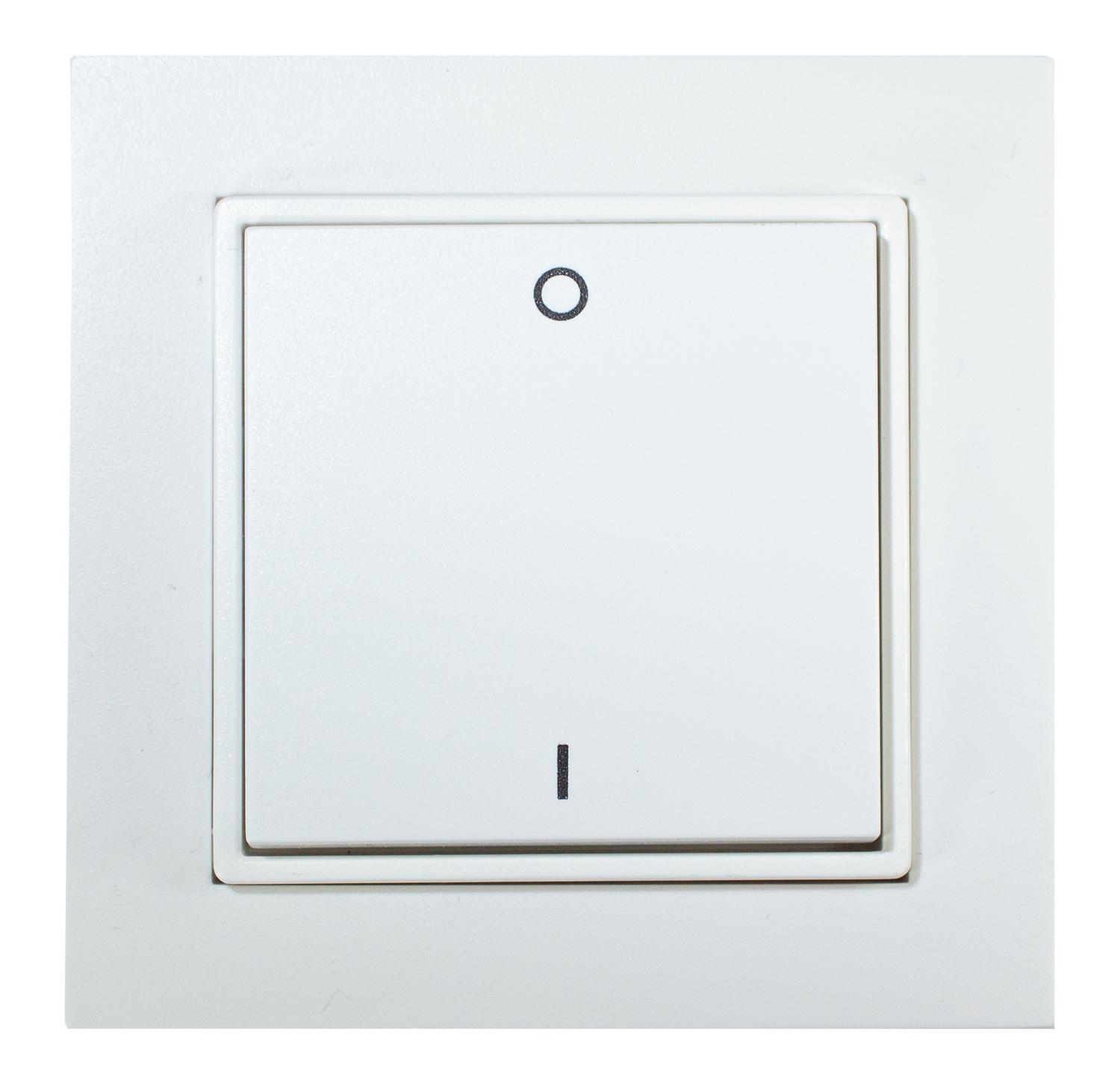

Single Rocker Switch: 183B (black) / 183W (white)

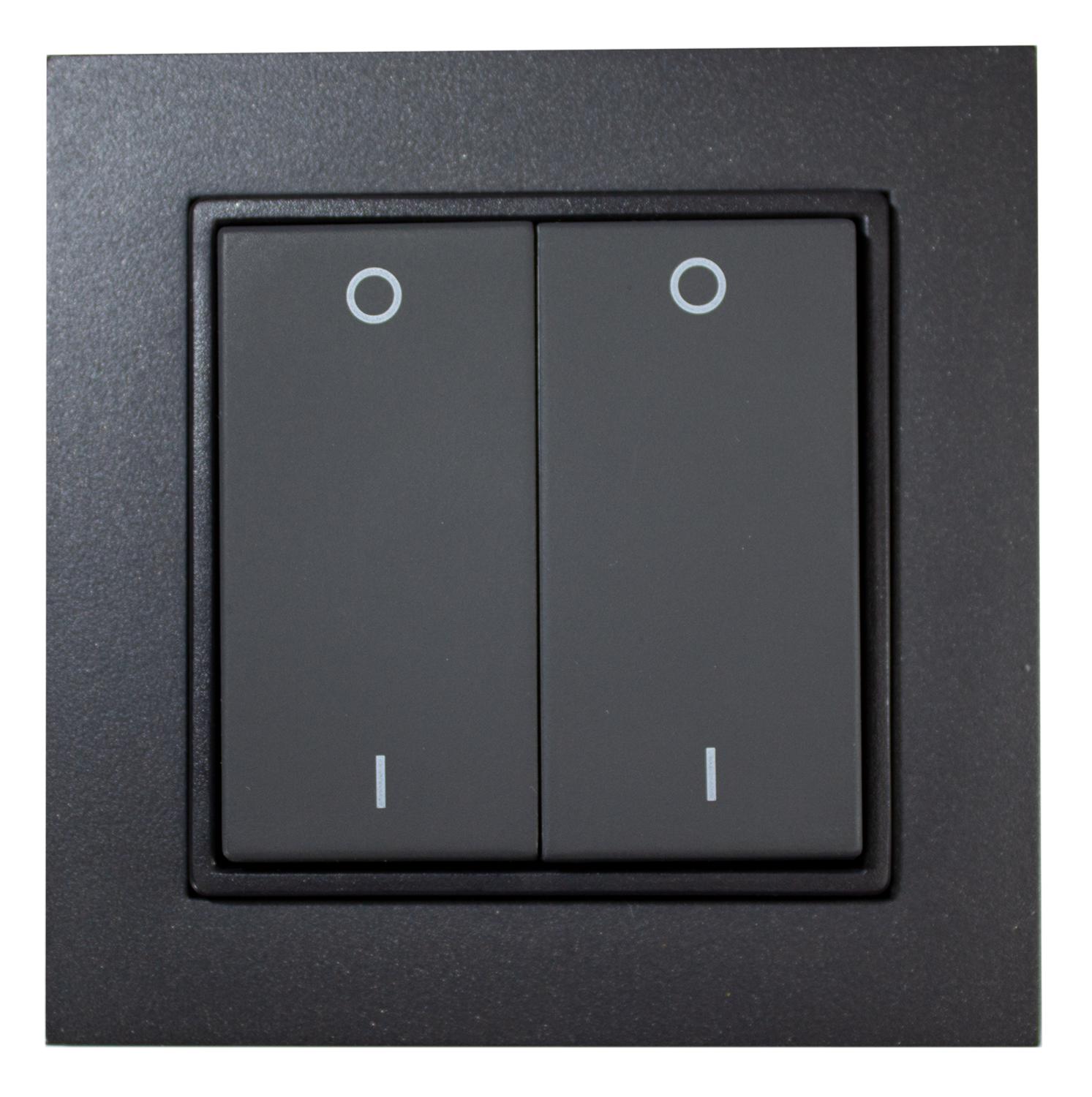

Dual Rocker Switch: 184B (black) / 184W (white)
Technical Data
|
Connections |
|
|
No wiring (power or communications) is required. |
|
|
Power |
|
|
Signal power is generated by pressing the EnOcean button. |
|
|
Operation |
|
|
Operating frequency: |
868 MHz ISM band (Europe) |
|
Range: |
30 m (unobstructed space) |
|
Max. No. of switch panels per gateway: |
20 |
|
Mechanical data |
|
|
Dimensions: |
86 mm × 86 mm × 15 mm |
|
Weight: |
150 g |
|
Switch colour: |
18xW: white18xB: black |
|
Material: |
Switch rockers: plastic |
|
Frame: |
Stainless steel (181 & 182)Plastic (183 & 184) |
|
Mounting: |
Mount to back box, or mount on glass or flat surface. |
|
IP code: |
IP30 |
|
Operating conditions |
|
|
Ambient temperature: |
0 °C to +50 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Storage temperature: |
–10 °C to +70 °C |
|
Conformity and standards |
|
|
Safety: |
EN 60950-1 |
|
RED 2014/53/EU: |
EN 301489-3EN 300220-2 |
|
Wireless protocol: |
ISO/IEC 14543–3–10 |
|
Environment: |
Complies with WEEE and RoHS directives. |
