315 iDim Sense System Sensor

 iDim Sense System & Standalone (315)

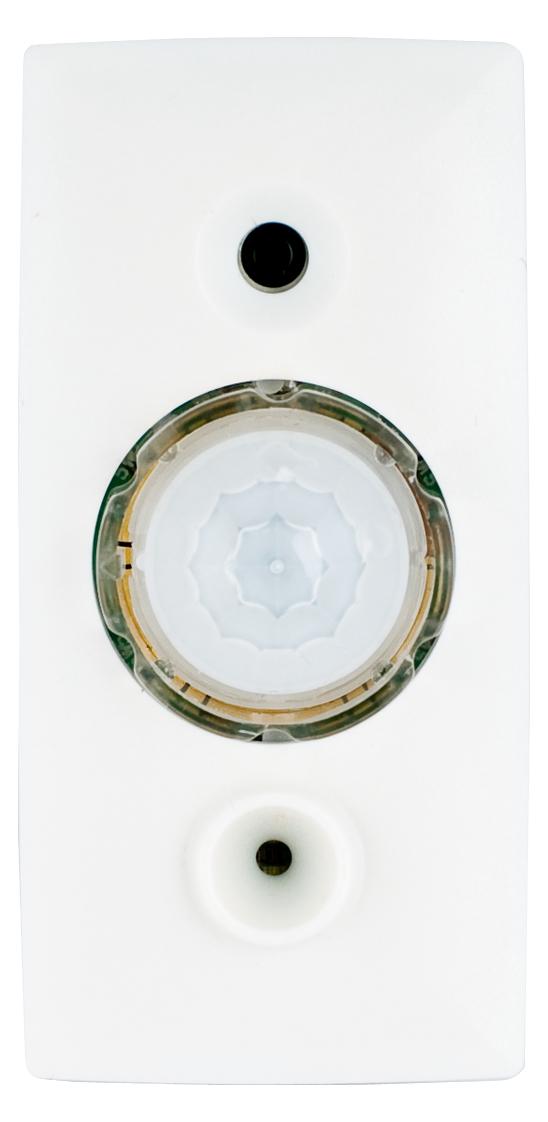

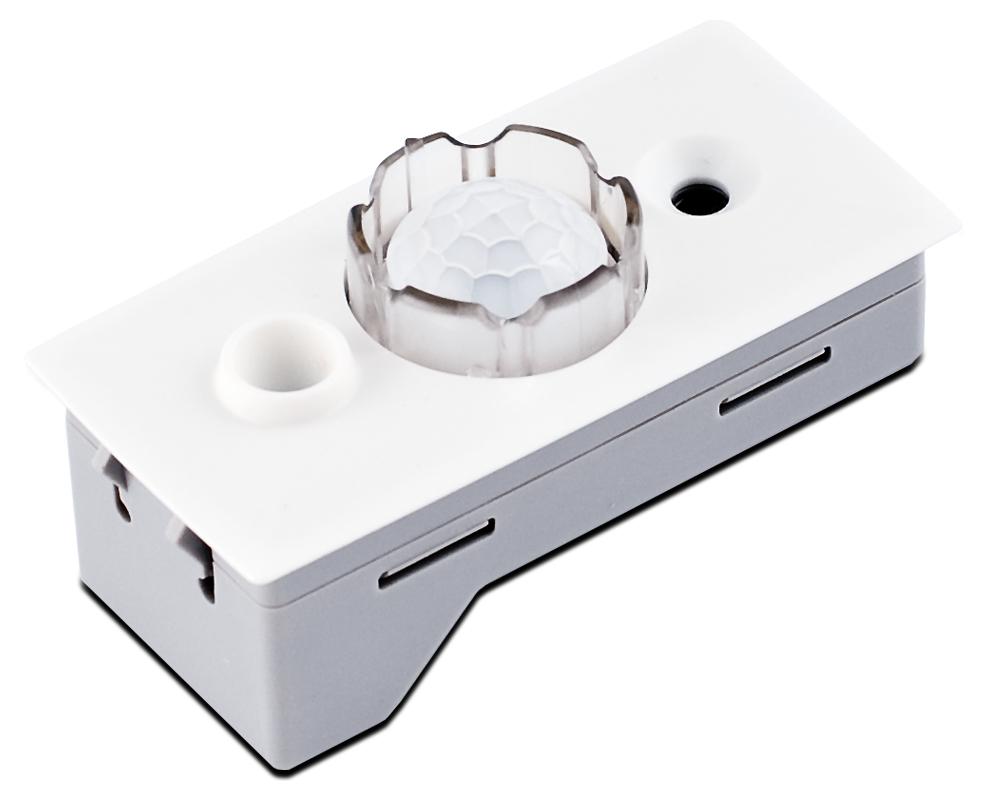

 The iDim Sense is a luminaire-based DALI sensor suitable both for standalone use and for operation with a Helvar router system. It provides:

  • a passive infrared (PIR) movement detector
  • a remote control receiver (IR) for remote control
  • a light sensor (CL) for constant light function
  • a manual mode selector for choosing among six out-of-box application modes (operational only in standalone mode).

 Key Features

  • PIR, constant light and infrared control
  • Easy-to-select application modes

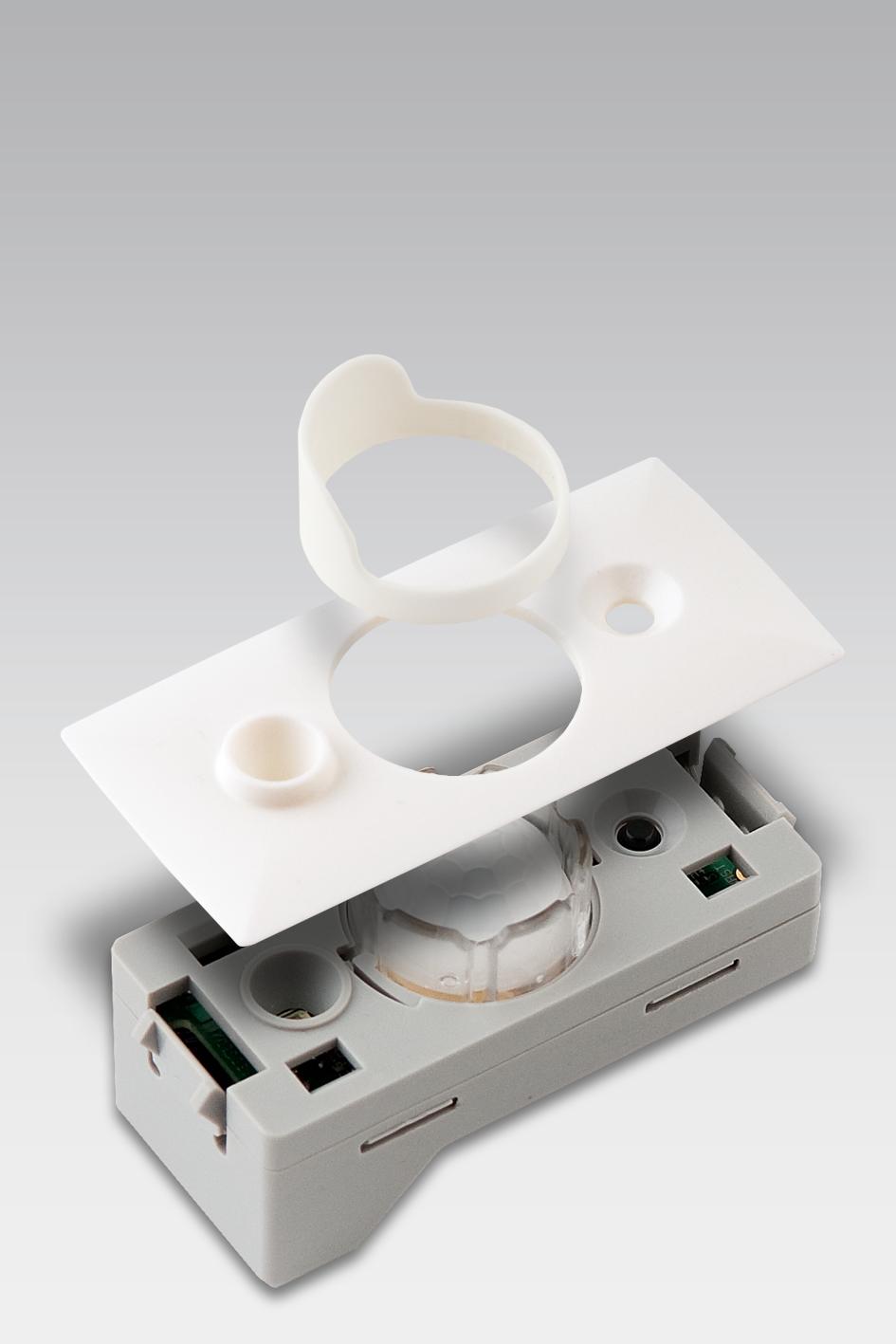

  • Clip-on fascia in different colours

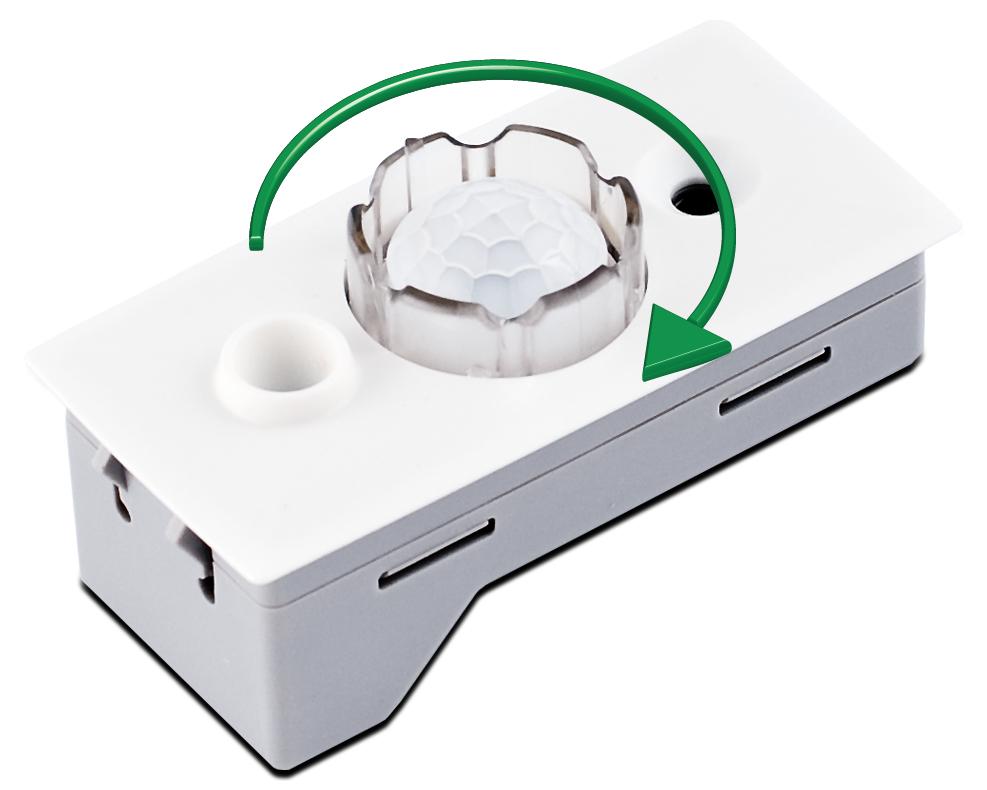

  • Clip-on PIR restrictor
  • Remote control and manual control
  • Compatible with Helvar’s lighting system design and control software (Designer and Toolbox).



Technical Data




Wire size: 0.5 mm² – 1.5 mm²Solid, flexible or strandedStrip length: 9 mm

iDim Solo:

RJ Style 4P4C crossover (max. 3 m) Accessory cable available

Power cable rating:

All cables must be mains rated.


DALI consumption:

10 mA


Light sensor:

For constant light functions

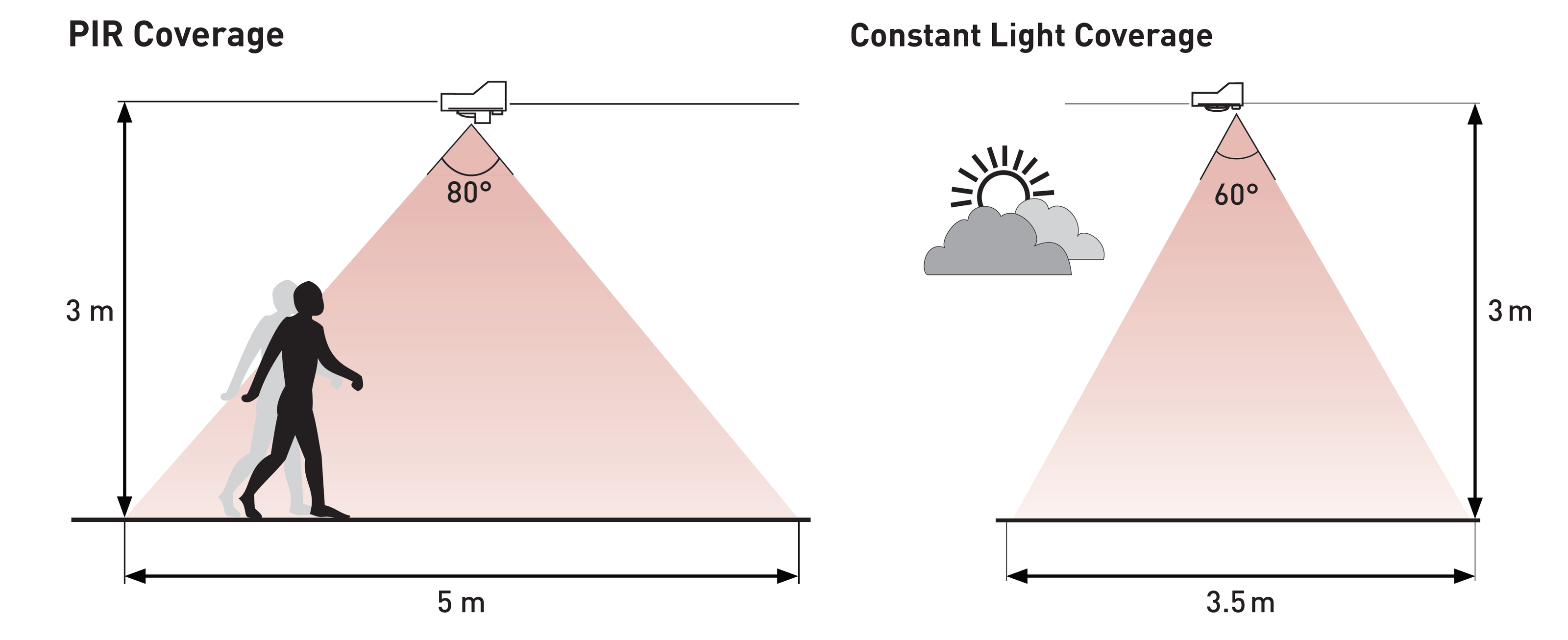

Presence detector:

PIR: Passive infrared presence detector

infrared receiver:

For remote control commands

Remote control functions

Infrared remote control:

Infrared remote control: Modify preset light levels (constant light or fixed light)Scene store and recallActivate special test functions

Mechanical data

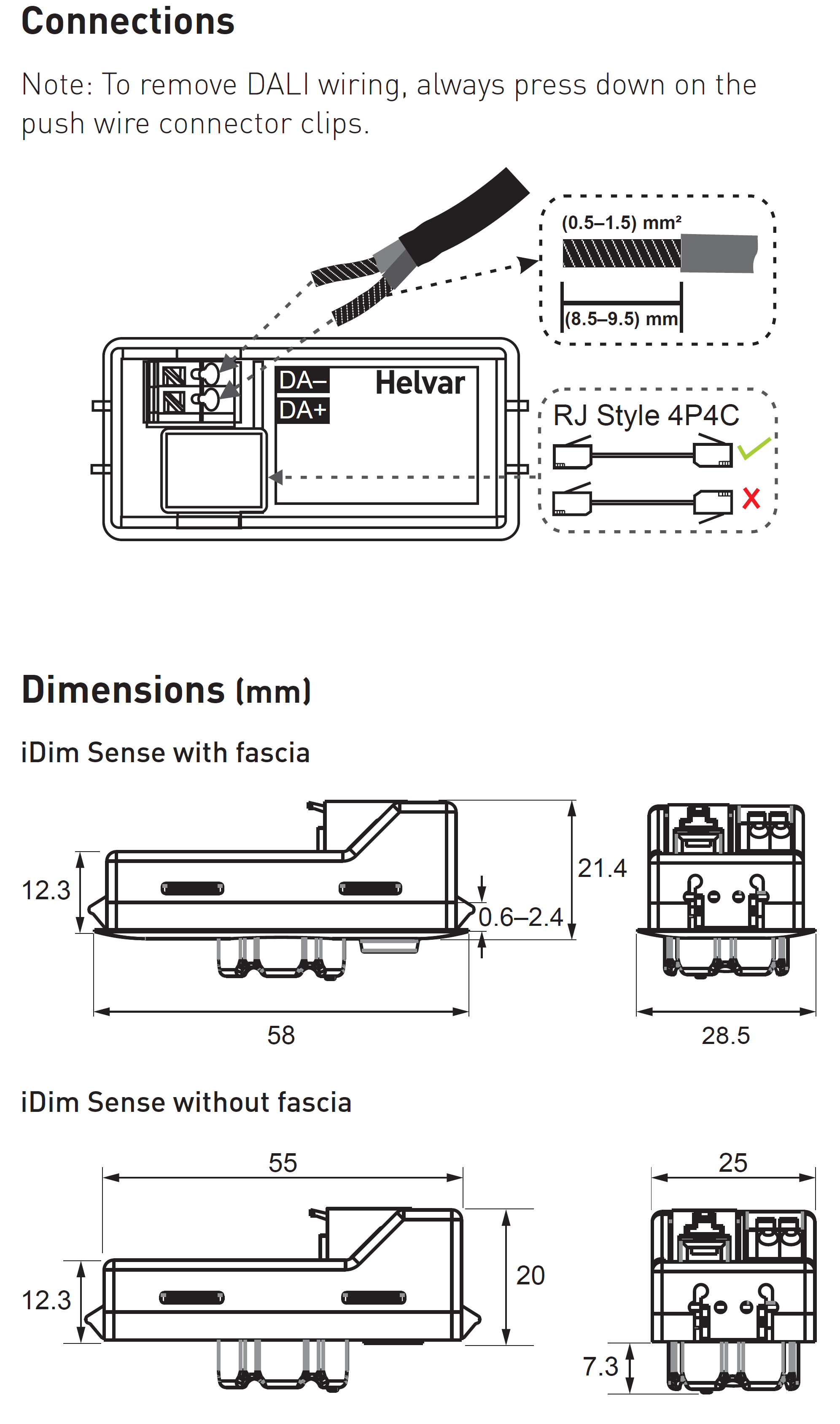

55 mm × 25 mm × 20 mm (without fascia). See diagram.58 mm × 28.5 mm × 21.4 mm (with fascia). See diagram.

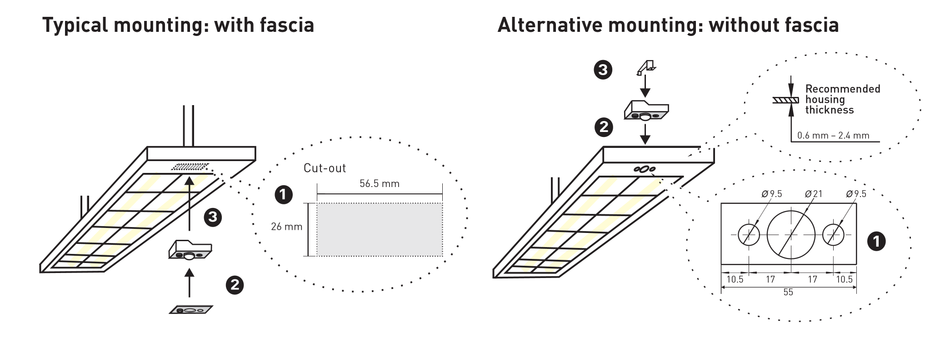

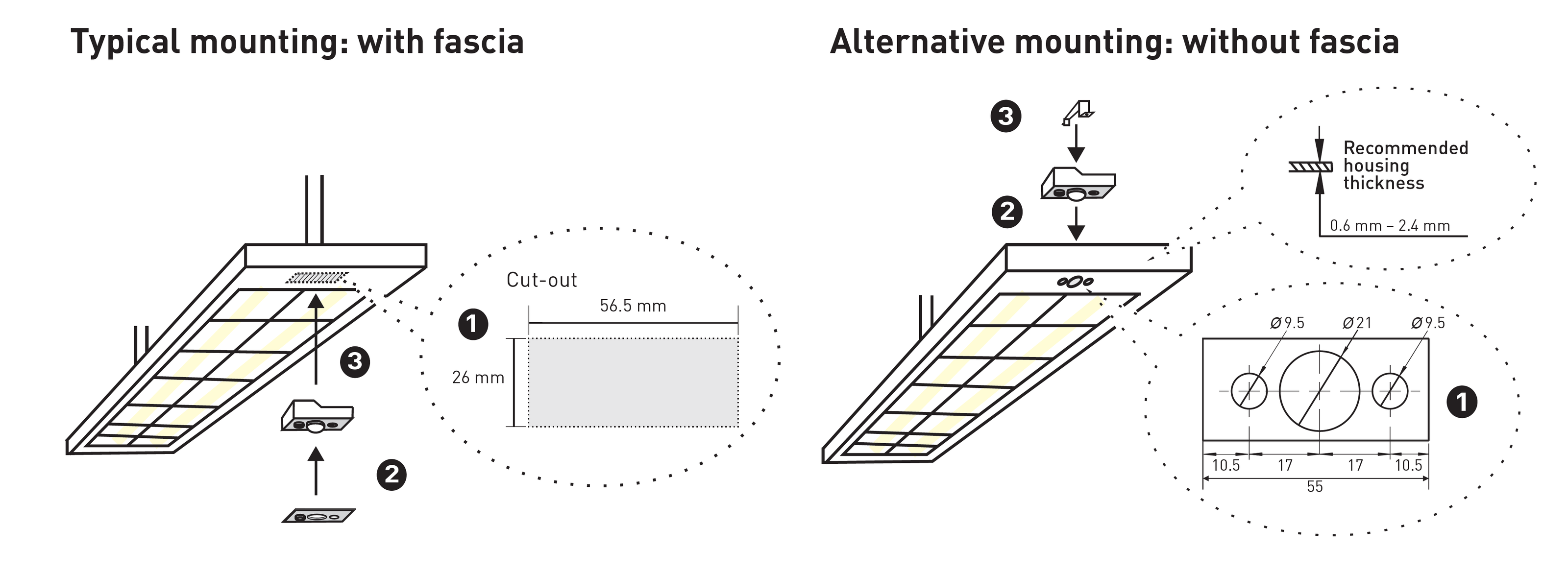

Recommended luminaire thickness:

0.6 mm – 2.4 mm

Material (casing):

Fire-retardant polycarbonate


iDim Sense: Grey (RAL 9006)iDim Fascia: White (RAL 9016) or Grey (RAL 9006)

IP code:



15 g

Operating conditions

Ambient temperature:

+10 °C to +50 °C

Relative humidity:

Max. 90 %, noncondensing

Storage temperature:

−25 °C to +75 °C


5 lx – 5000 lx

Conformity and standards

EMC Emission:

EN 55015

EMC Immunity:

EN 61547


EN 61347–2–11


Double isolated


Complies with WEEE and RoHS directives.
