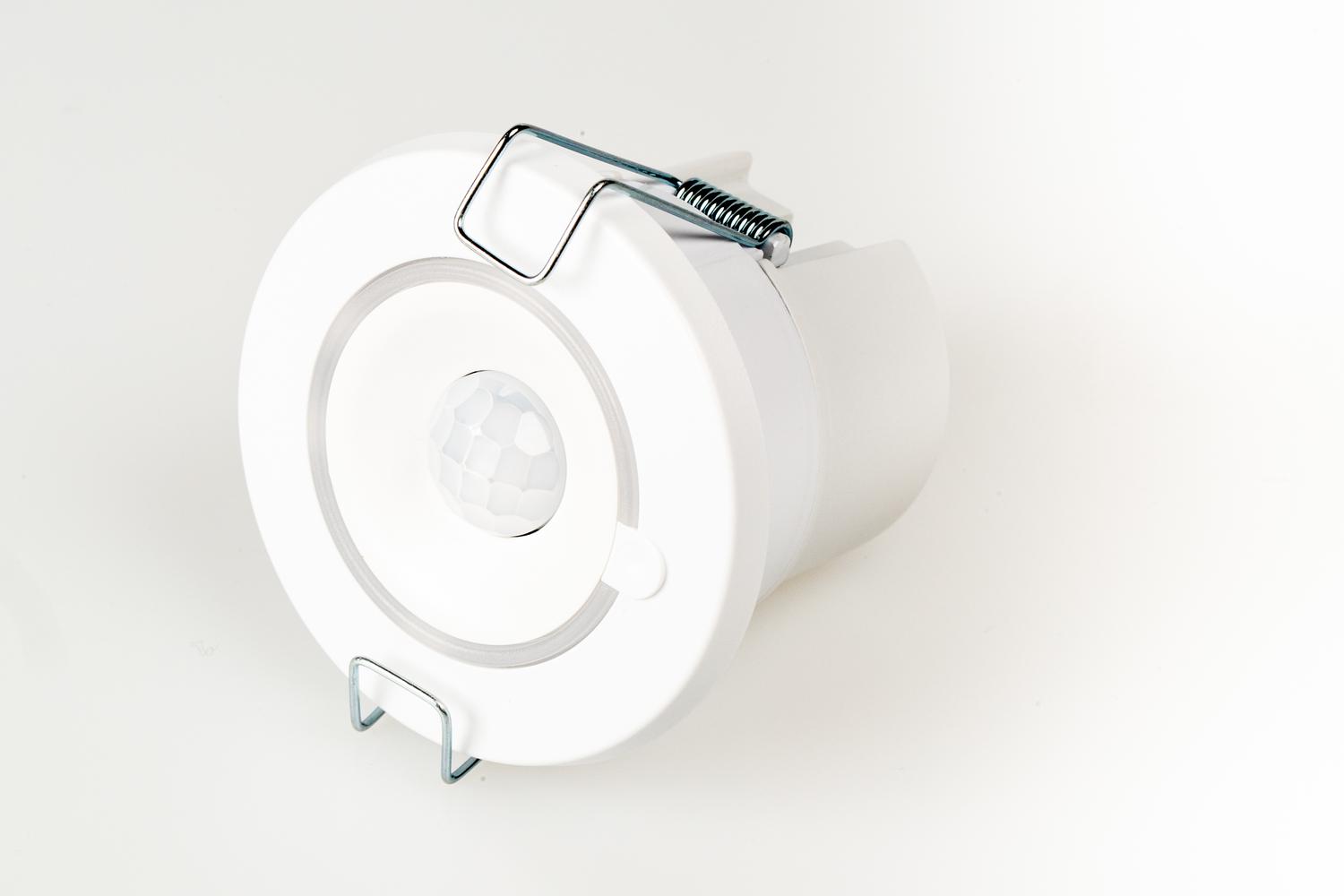

320 PIR Sensor


 PIR Sensor (320, 320B, 320P, 320PB) Datasheet


 The PIR Sensor is a compact sensor that provides energy saving functions in a DALI system. It can turn the lights on when its coverage area is occupied, and off when it is unoccupied. The sensor’s settings are adjusted using Helvar’s Designer or Toolbox software.

Due to its excellent detection performance, the PIR Sensor is especially suitable for applications where small or slow movements take place for extended periods of time, such as offices or classrooms. Since its detection sensitivity is less dependent on movement direction than that of most PIR sensors, fewer units are required to reliably cover a target area.

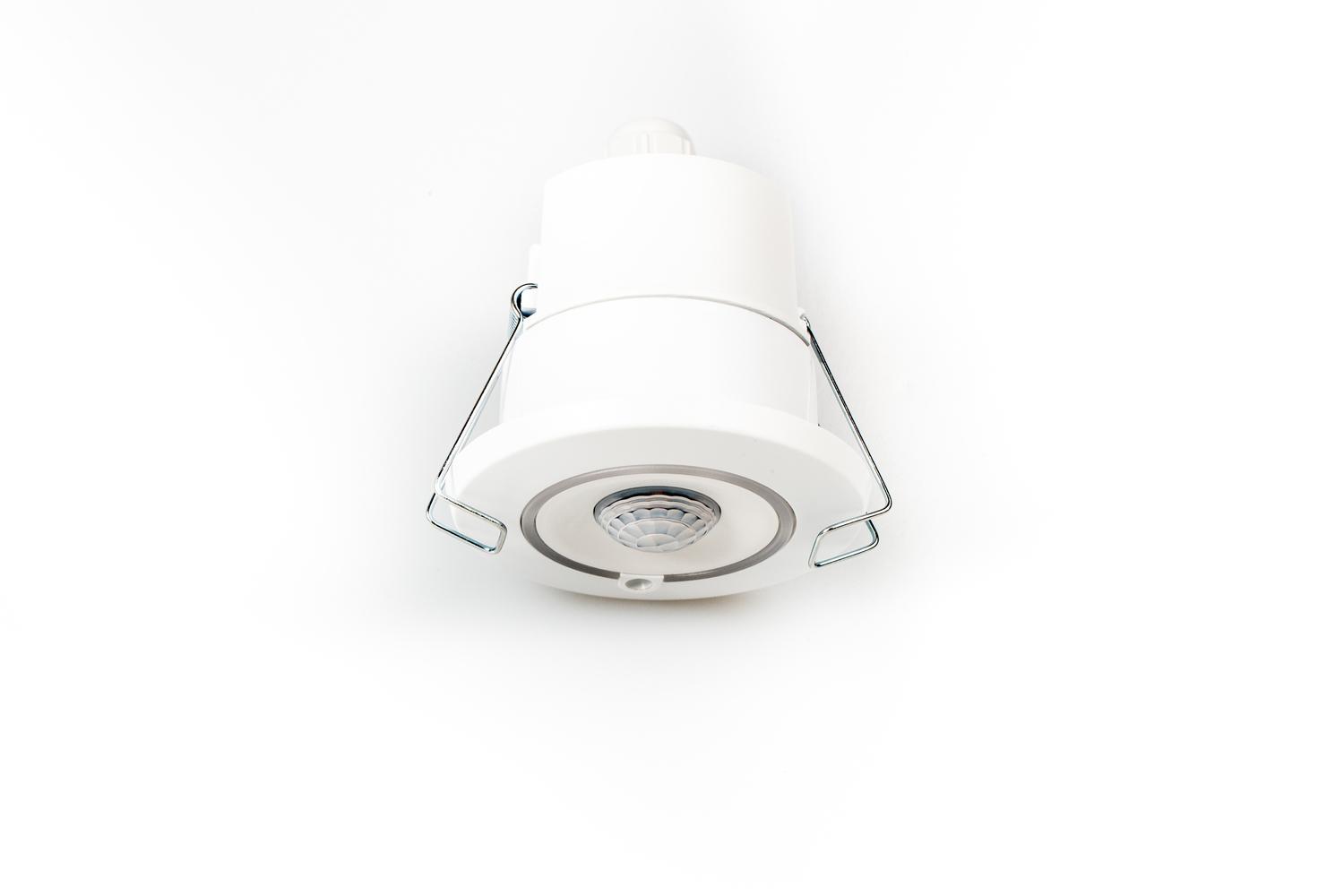

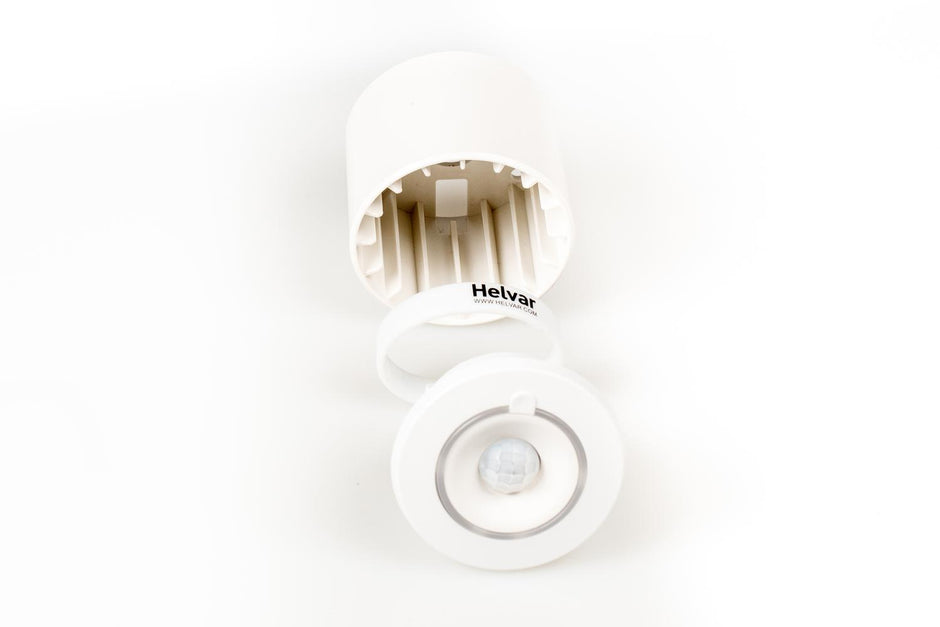

The unit can be mounted into a ceiling void or onto a solid surface using Helvar’s SBB-C (white) or SBB-CB (black) mounting box (sold separately).



 Key Features

  • Excellent detection performance through high sensitivity and multidirectional coverage.
  • 10 mA DALI current consumption.
  • Compact and functional design.
  • Programmable in Designer and Toolbox


Technical Data



Removable connector block

Wire section:

0.5 mm² – 1.5 mm² solid or stranded

Cable rating:

All cables must be mains rated.

Electrical Data

DALI supply input:

13 V – 22.5 V

DALI consumption:

10 mA Max


Presence detector:

Passive infrared (PIR)

Mechanical data

Max. recommended mounting height:

4 m

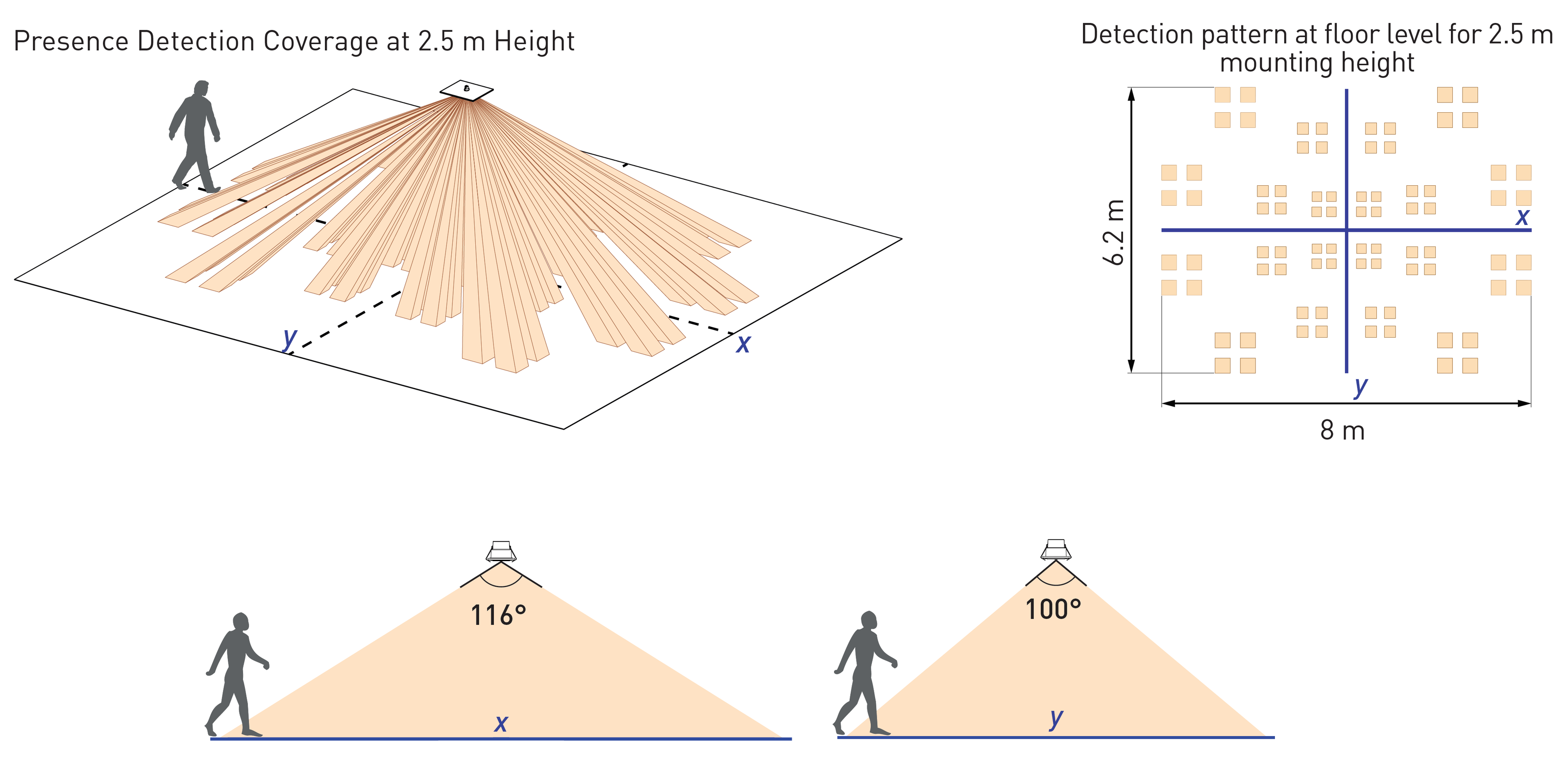

Presence detection coverage area:

46 m² @ 2.5 m mounting height

Mounting hole diameter:

51 mm +/- 1 mm

Note: If replacing older sensor then 52 mm to 55 mm mounting hole is acceptable.

Ceiling thickness:

Maximum 25mm

Bezel diameter:

66 mm

Recommended clearance depth:

10 cm (with cable cover, incl. 5 cm for cabling)

Material (casing):

Nonflammable PC/ABS (UL94–V0)

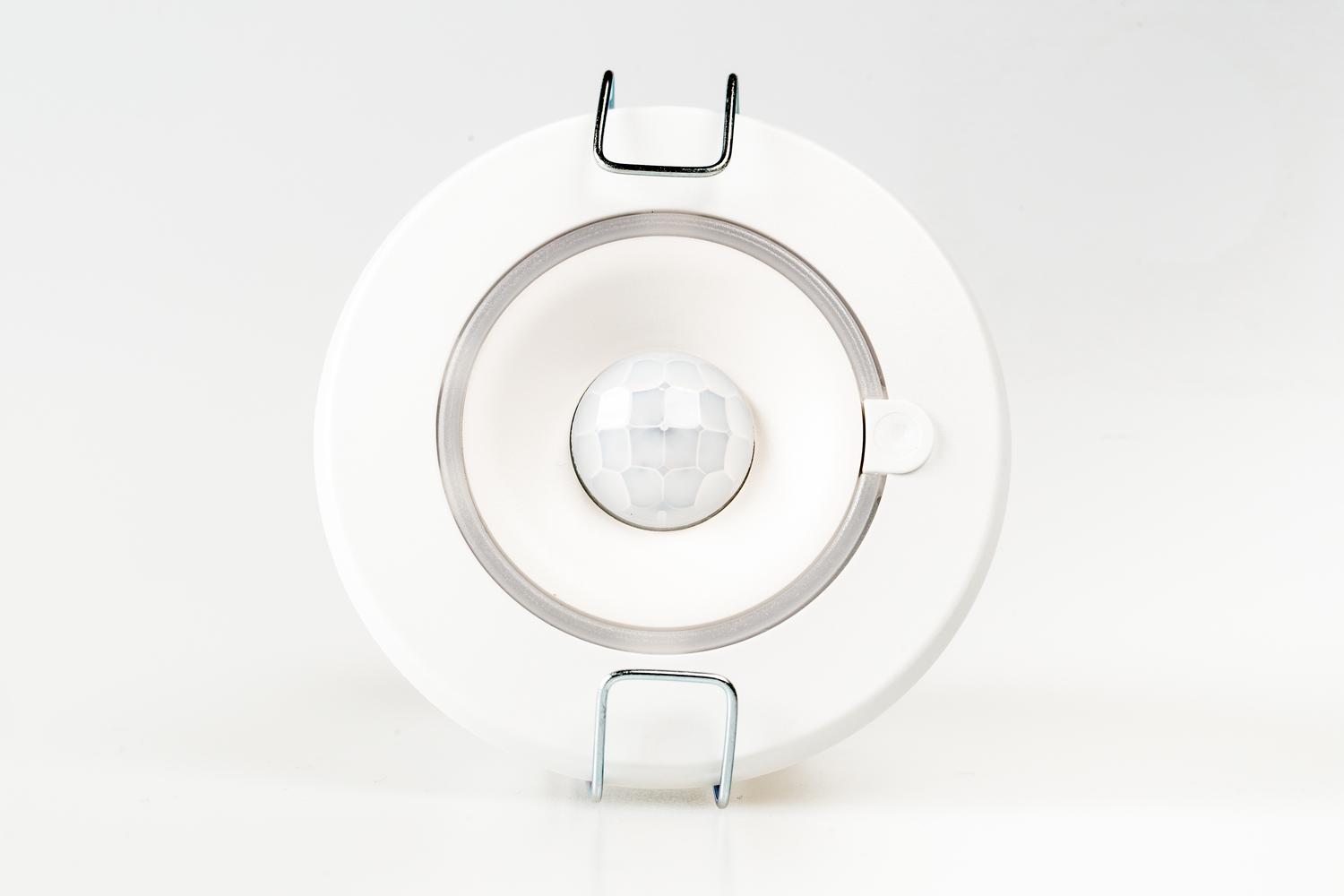

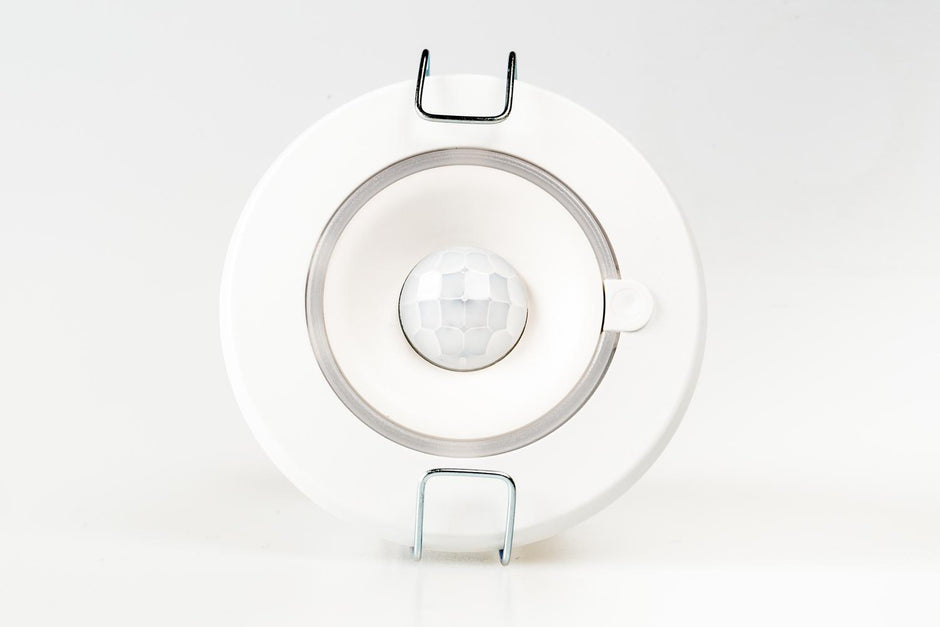

Finish/Colour:320, 320P:

Semi-matt / White RAL 9003

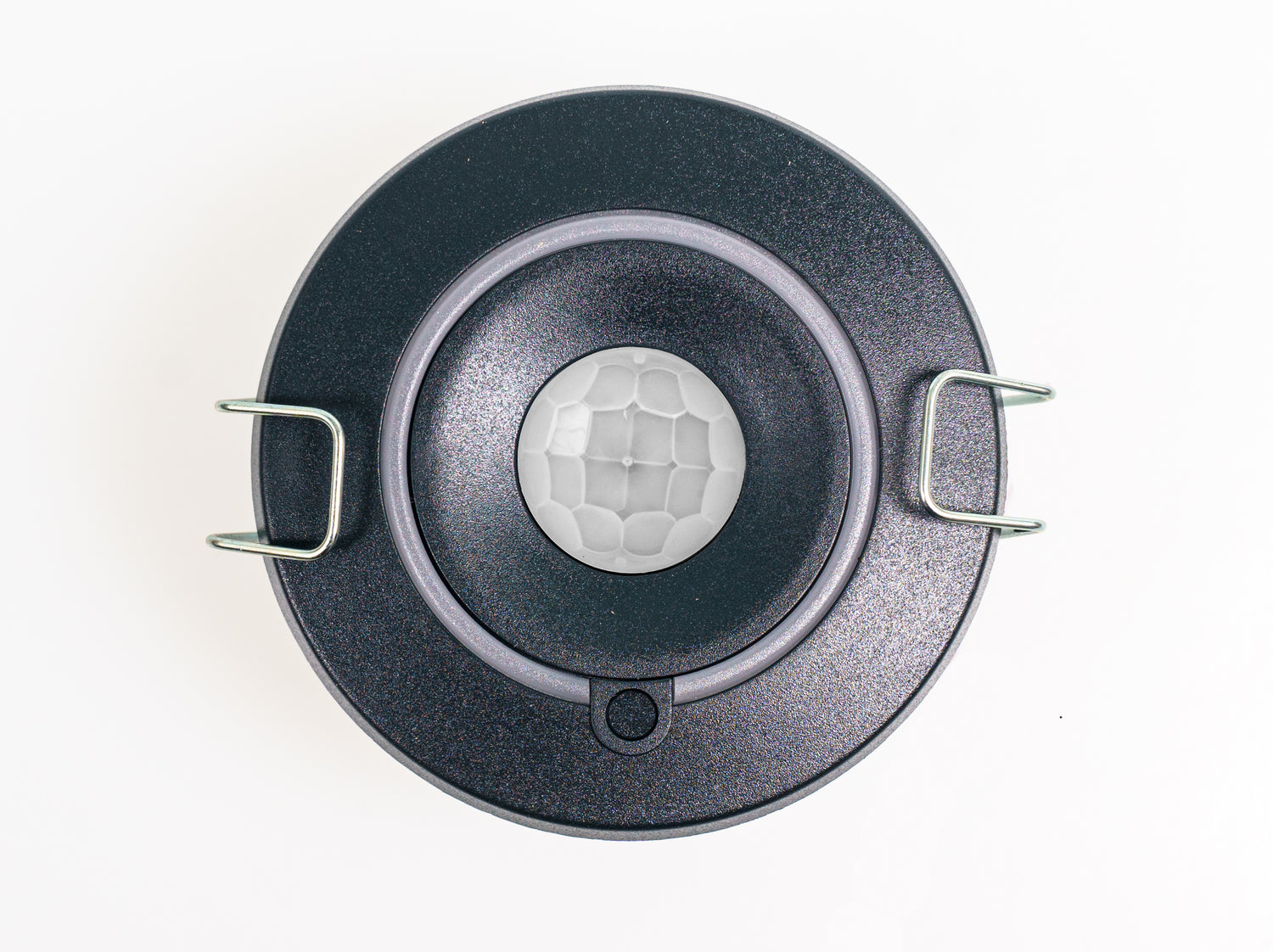

320B, 320PB:

Semi-matt / Anthracite grey RAL 7016


66.3 g

IP rating:

IP30 [IP20 cable cover]


Start-up time:

≤ 1 sec

Operating and storage conditions

Ambient temperature:

0 °C to +50 °C

Relative humidity:

Max. 90 %, noncondensing

Storage temperature:

–10 °C to +70 °C

Conformity and standards

EMC emission:

EN 55015

EMC immunity:

EN 61547


EN 61347-2-11


Complies with WEEE and RoHS directives.

Software compatibility


5.4 or later


2.4.2 or later
