MULTISENSOR FOR ROOMSET 331, 331B

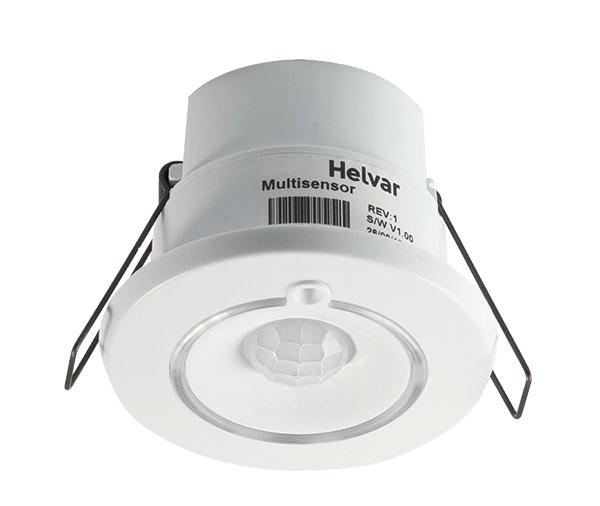

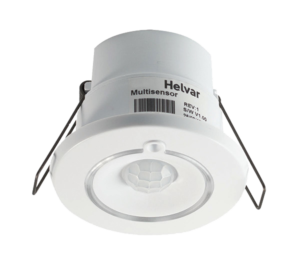

The 331 and 331B Multisensor for RoomSet are the heart of Helvar RoomSet single-room lighting solution for commissioning classrooms, offices and meeting rooms. For the installer, the automatic preset programming allows for swift out-of-the-box installation, with no configuration needed.
RoomSet supports advanced graphical configuration via an easy-to-use Android app that enables a quick and simple setup for different purposes, such as presentations, lectures or conferences, or for daylight-harvesting. For commissioning large numbers of rooms, the RoomSet app allows copying room layouts, thus making the commissioning process faster and consequently more cost-effective.
The Multisensor for RoomSet has a light sensor for constant-light control, and a passive infrared (PIR) presence detector to provide energy-saving functions in a DALI system. It also hosts a microcontroller running RoomSet firmware with Bluetooth® low-energy connectivity to allow tablet-based configuration.
Key Features
- Excellent detection performance through high sensitivity and multidirectional coverage. Automated addressing and defaults programming to allow installer testing. Functional system just by powering on the sensor.
- Drag-and-drop graphical configuration of rooms with an intuitive Android app. Over-the-Air upgrades via the RoomSet app to keep the system up to date with the latest available functionality. Programmable constant-light control for energy efficiency. Cost-effective deployment of large numbers of rooms
Technical Data
|
Connections
|
|

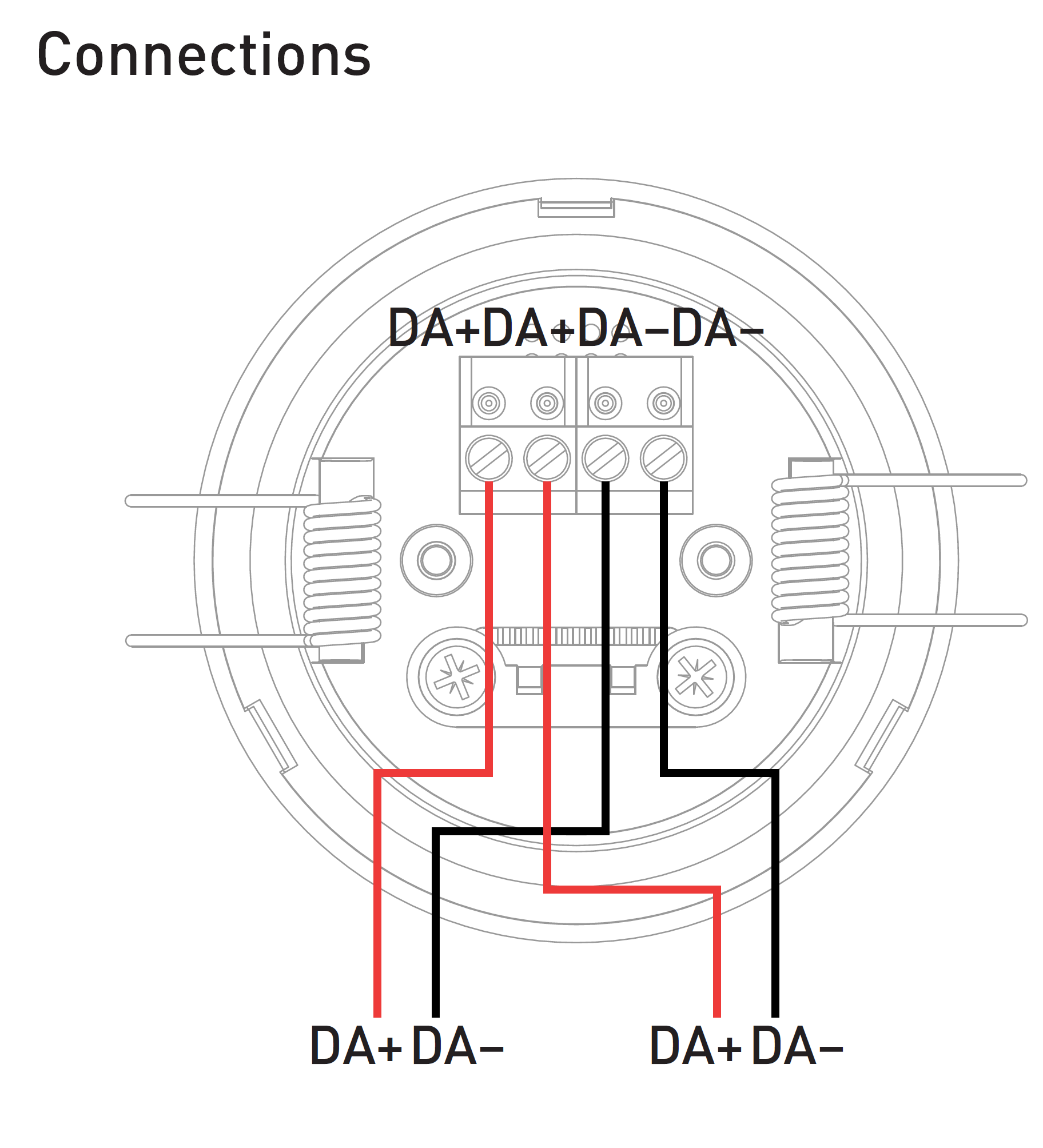

DALI:
|
Removable connector block
|
|
Bluetooth®:
|
BLE 4.1
|
|
Wire section:
|
0.5 mm² – 1.5 mm² solid or stranded
|
|
Cable rating:
|
All cables must be mains rated.
|
|
Power
|
|
DALI supply input:
|
9.5 V – 22.5 V
|
|
DALI current consumption:
|
40 mA
|
|
Sensors
|
|
Light sensor:
|

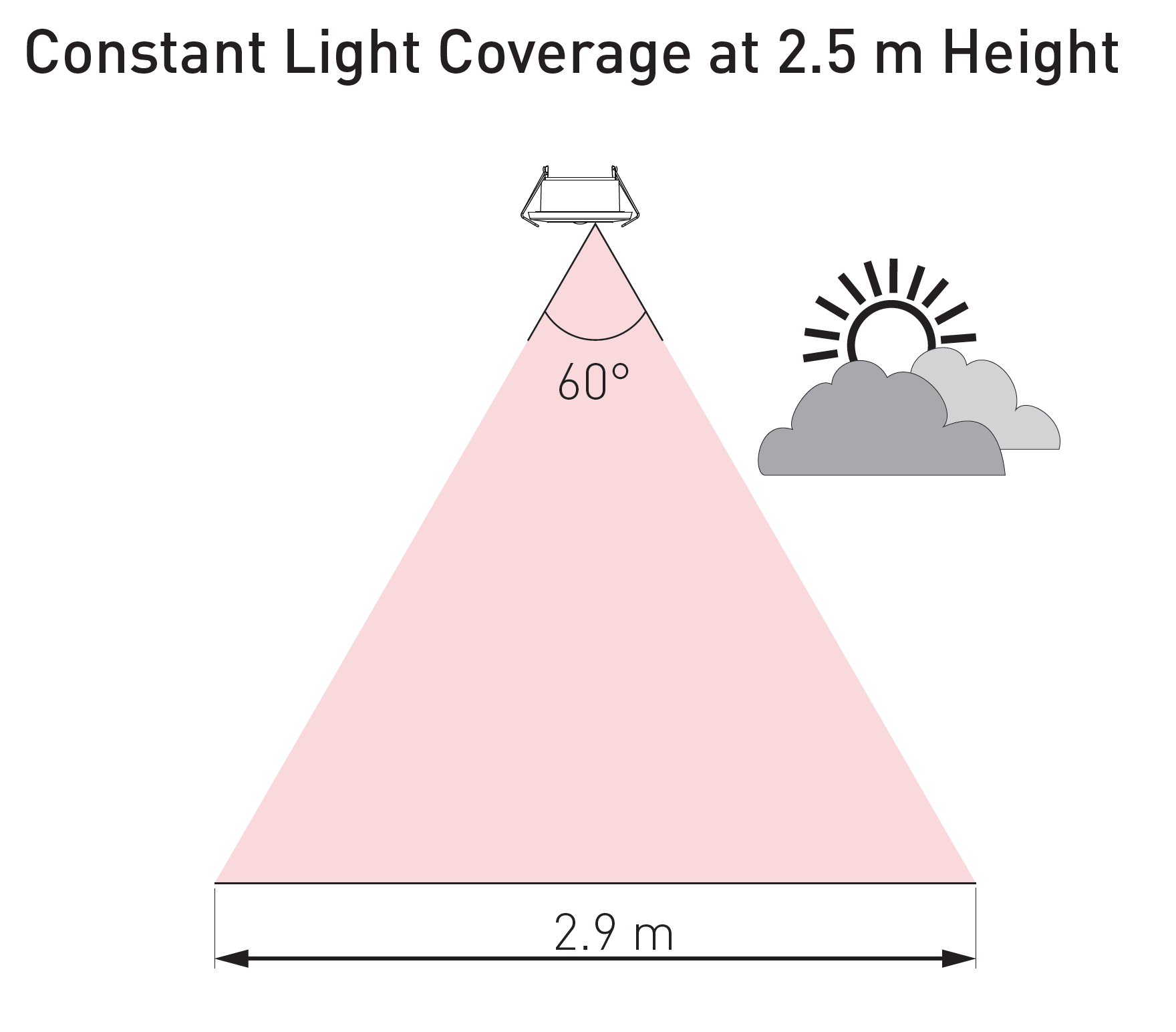

For constant-light functions
|
|
Presence detector:
|
Passive infrared (PIR)
|
|
Mechanical data
|
|
Max. recommended mounting height:
|
4 m
|
|

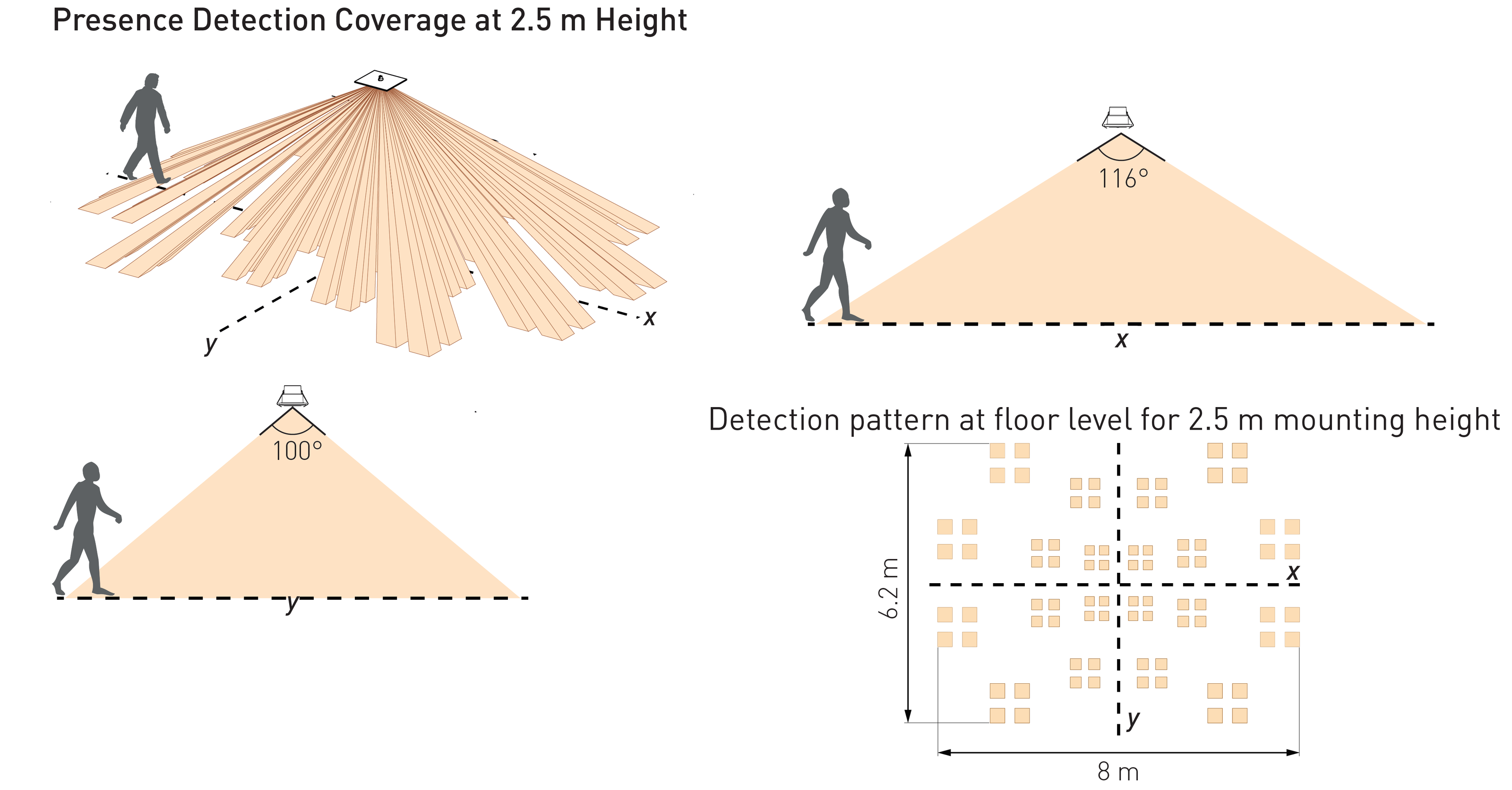

Presence detection coverage area:
|
46 m² @ 2.5 m mounting height
|
|

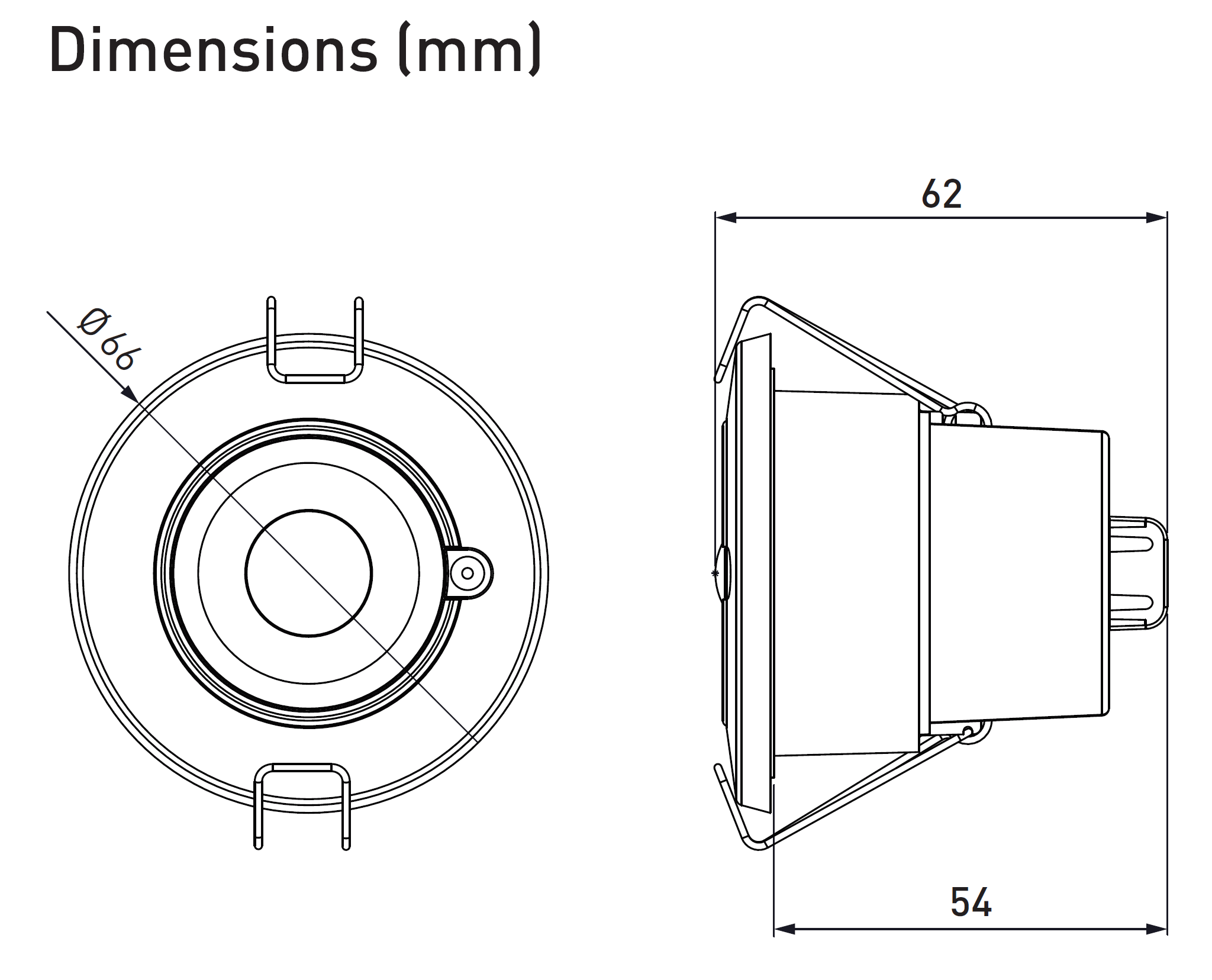

Mounting hole diameter:
|
51 mm +/- 1 mm
|
|
Note: If replacing older sensor then 52 mm to 55 mm mounting hole is acceptable.
|
|
Ceiling thickness:
|
Maximum 25 mm
|
|
Bezel diameter:
|
66 mm
|
|
Recommended clearance depth:
|
10 cm (with cable cover, incl. 5 cm for cabling)
|
|
Material (casing):
|
Nonflammable PC/ABS (UL94-V0)
|
|
Finish / Colour: 331:
|
Semi-matt / White RAL 9003
|
|

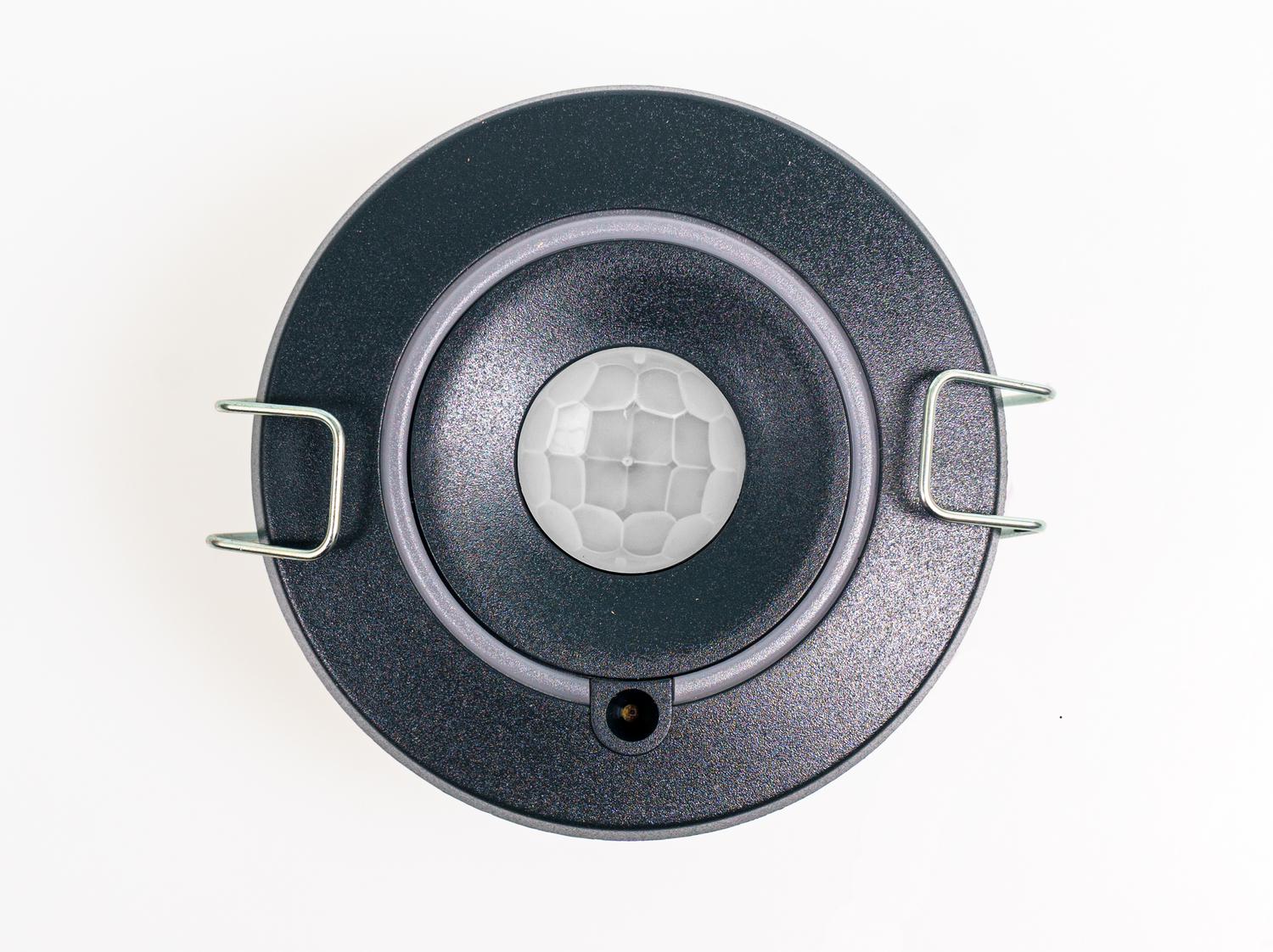

331B:
|
Semi-matt / Anthracite Grey RAL 7016
|
|
Weight:
|
56 g
|
|
IP code:
|
IP30 [IP20 cable cover]
|
|
Operating and storage conditions
|
|
Ambient temperature:
|
0 °C to +50 °C
|
|
Relative humidity:
|
Max. 90 %, noncondensing
|
|
Storage temperature:
|
–10 °C to +70 °C
|
|
Conformity and standards
|
|
DALI standard:
|
IEC 62386
|
|
EMC emission:
|
EN 61000-6-3
|
|
RED:
|
EN 300328 EN 301489-17
|
|
EMC immunity:
|
EN 61547
|
|
Safety:
|
EN 61347-2-11
|
|
Environment:
|
Complies with WEEE and RoHS.
|
|
RoomSet compatibility
|
|
Device:
|
Tablet (9.7" screen or larger recommended)
|
|
Software:
|
Android 6.0.2 or later BLE 4.1 or later
|
