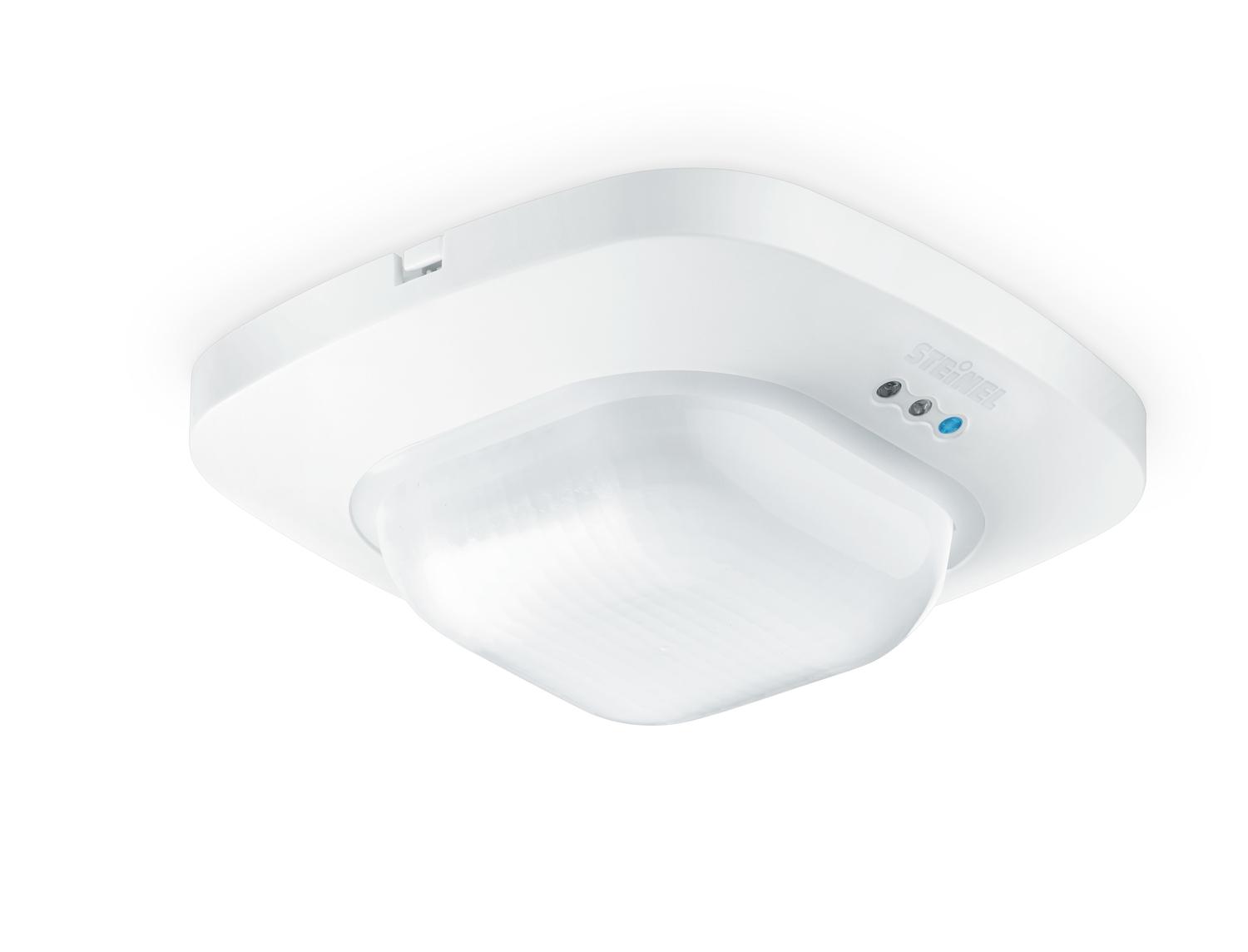

IR Quattro HD Large Coverage Area PIR Multisensor

IR Quattro HD

DALI-2 Input Device

EAN 4007841 069278

Article number



Function description

Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD DALI-2 Input Device for indoors, ideal for medium to large-size offices,

conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m. DALI-2 Input Device enables

sensors to communicate collected sensor data to higher-level lighting management systems (e.g. LiveLink).



Technical specifications

Type Presence detector

Dimensions (L x W x H) 70 x 120 x 120 mm

Mains power supply 12 – 22,5 V

Power supply, detail DALI bus

Number of Dali users 4

Sensor Technology passive infrared

Application, place Indoors

Installation site ceiling

Installation Concealed wiring

Mounting height 2,50 – 10 m

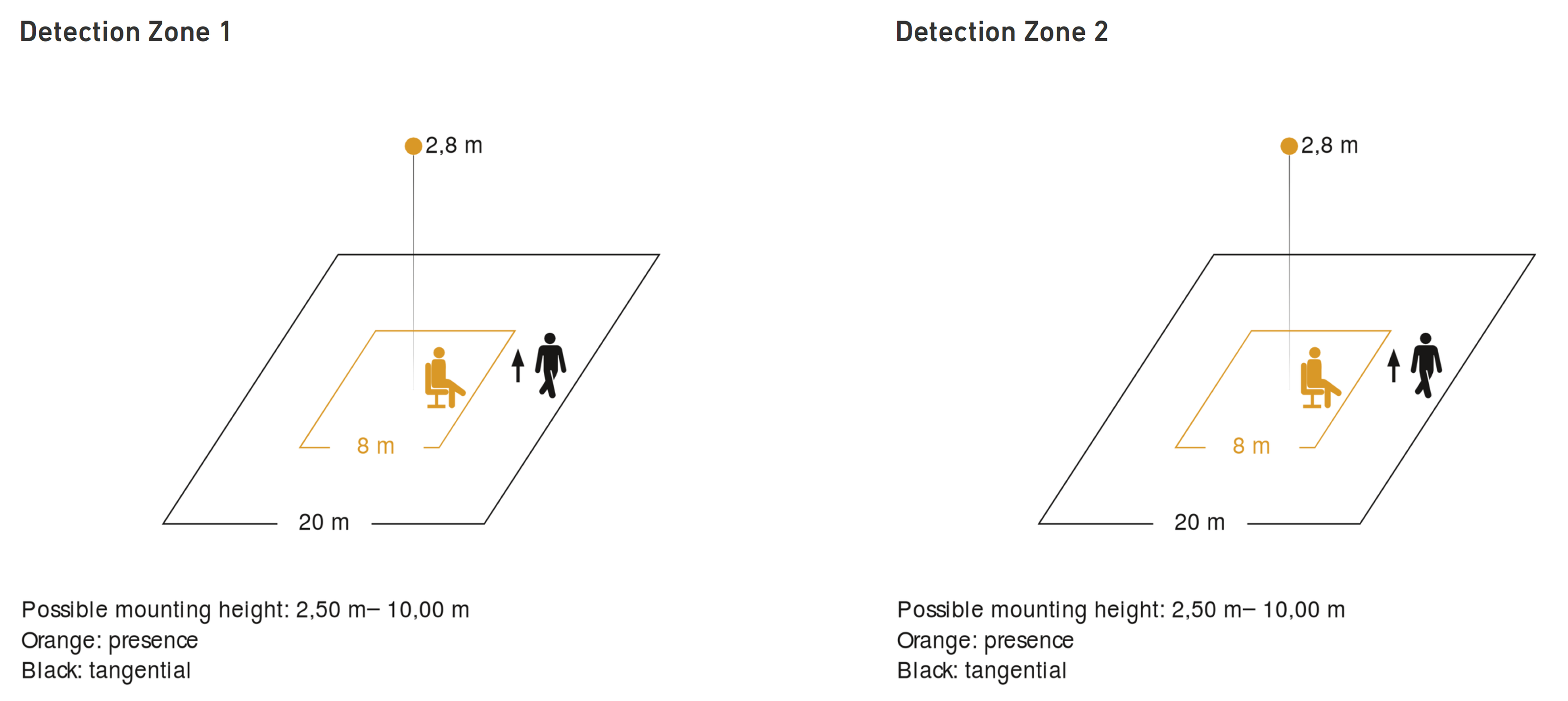

Reach, radial 8 x 8 m (64 m²)

Reach, tangential 20 x 20 m (400 m²)

Reach, presence 8 x 8 m (64 m²)

Detection angle 360 °

Angle of aperture 160 °

Switching zones 4800 switching zones

Optimum mounting height 2,8 m

Mechanical scalability Yes

Sneak-by guard Yes

Capability of masking out individual

segments No



Electronic scalability No

Twilight setting TEACH No

Twilight setting 10 – 1000 lx

Switching output 2, floating No

Control output, Dali Addressable/slave

Constant-lighting control No

Basic light level function No

Functions Presence function

Settings via Bus

With remote control No

Interconnection Yes

Type of interconnection Master/slave

Material Plastic

Ambient temperature -25 – 50 °C

Application, room

classroom, lecture hall, open-plan

office, high-bay warehouse,

production facilities, conference

room / meeting room, duty room,

recreation room, changing room,

sports hall, reception / lobby,

multi-storey / underground car park,


Colour white

Colour, RAL 9010

Manufacturer's Warranty 5 years

Version DALI-2 Input Device

PU1, EAN 4007841069278
