8-Channel Ballast Controller Module (458/CTR8)
The 458/CTR8 is an eight-channel digital ballast controller module capable of controlling 0–10 V, 1–10 V, DSI®, DALI broadcast or PWM loads. It has both a DALI and an SDIM/ DMX interface, and therefore can be fully integrated into a DIGIDIM or an Imagine router system. It can also be used on the TouchPanel or on standalone DALI or DIGIDIM systems.
The module has eight high-inrush relays, rated at 16 A per channel.

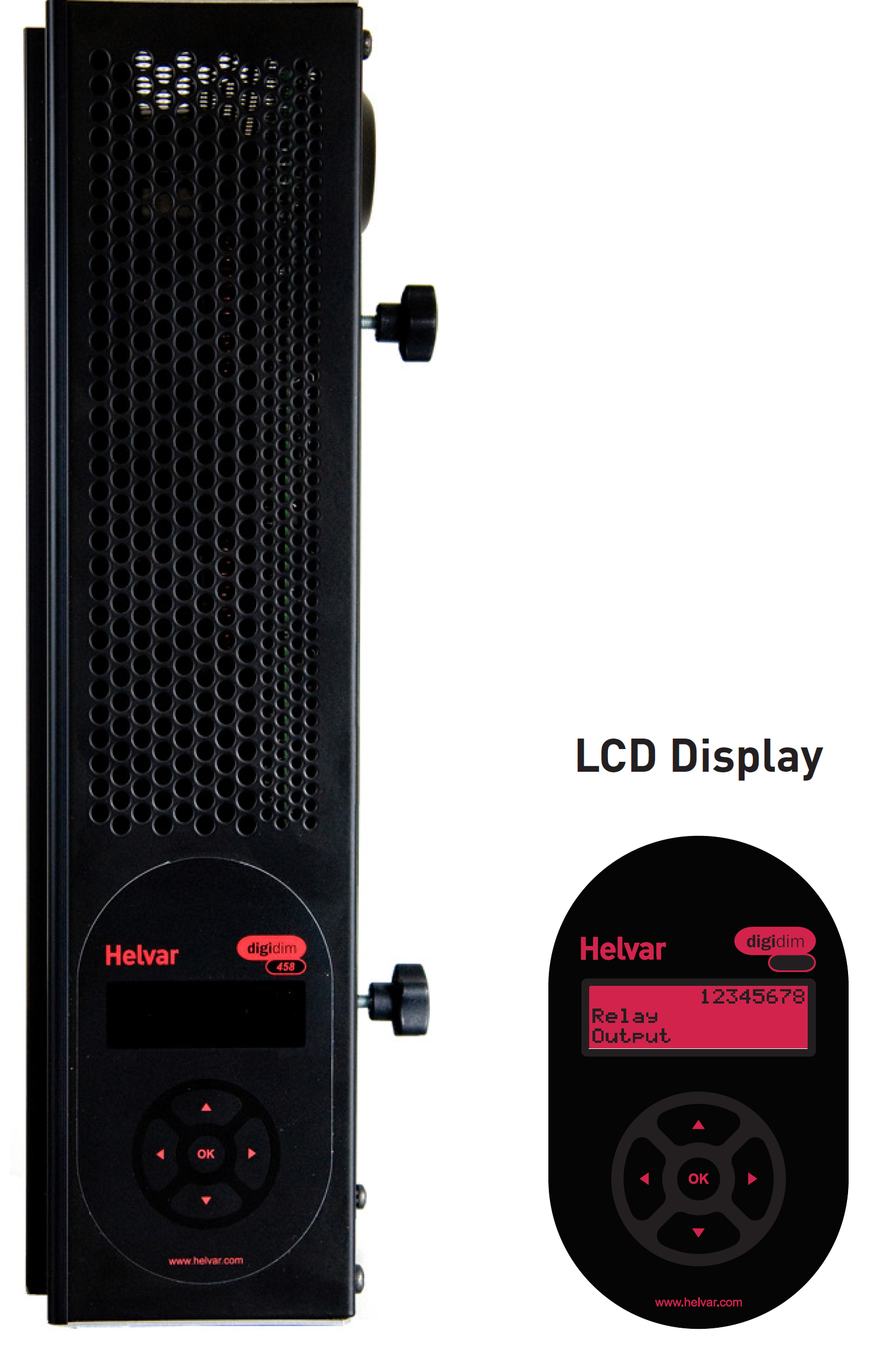

The front of the module is equipped with an LCD display and a keypad to set basic configuration parameters and provide basic control of channel and output levels.

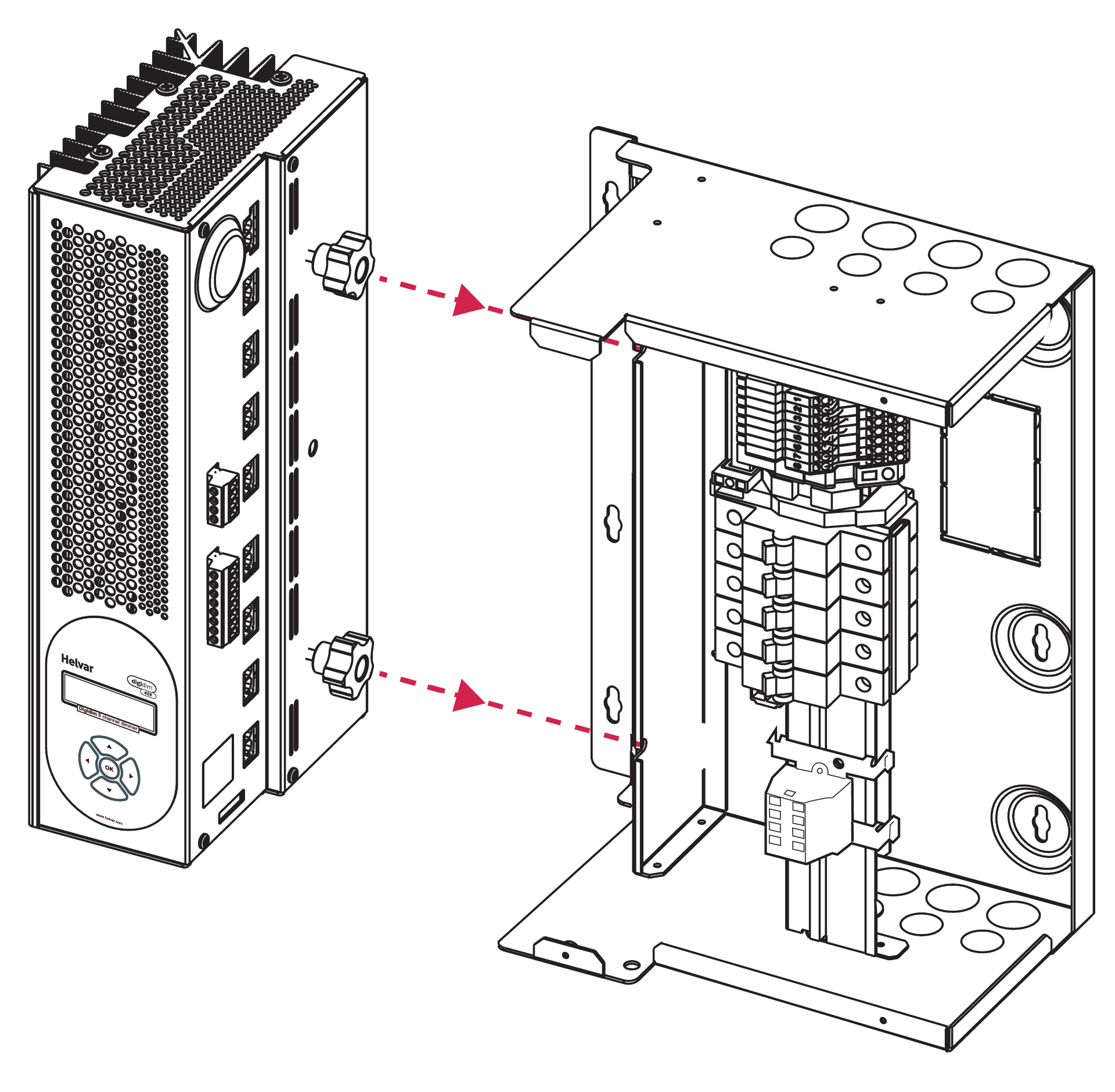

The module is easily fitted to a 458Mx chassis, in which each load channel is protected by an individual MCB.
Note: The 458/CTR8 8-Channel Ballast Controller Modules are supplied separately from the 458Mx chassis.
Key Features
- Easily attached to a 458Mx chassis and connected to the mains supply for quick installation.
- LCD display screen and a five-button keypad for monitoring, configuration and manual control.
- Universal mains power supply: 85 VAC – 264 VAC (absolute).
Control Features
Each channel of the control module can be configured to operate in any of the following modes:
- 0–10 V → source 20 mA
- 1–10 V → sink 100 mA
- DSI® (Digital Signal Interface) → source 100 mA
- PWM (Pulse Width Modulation) → source 100 mA
- DALI broadcast → source 100 mA
Technical Data
|

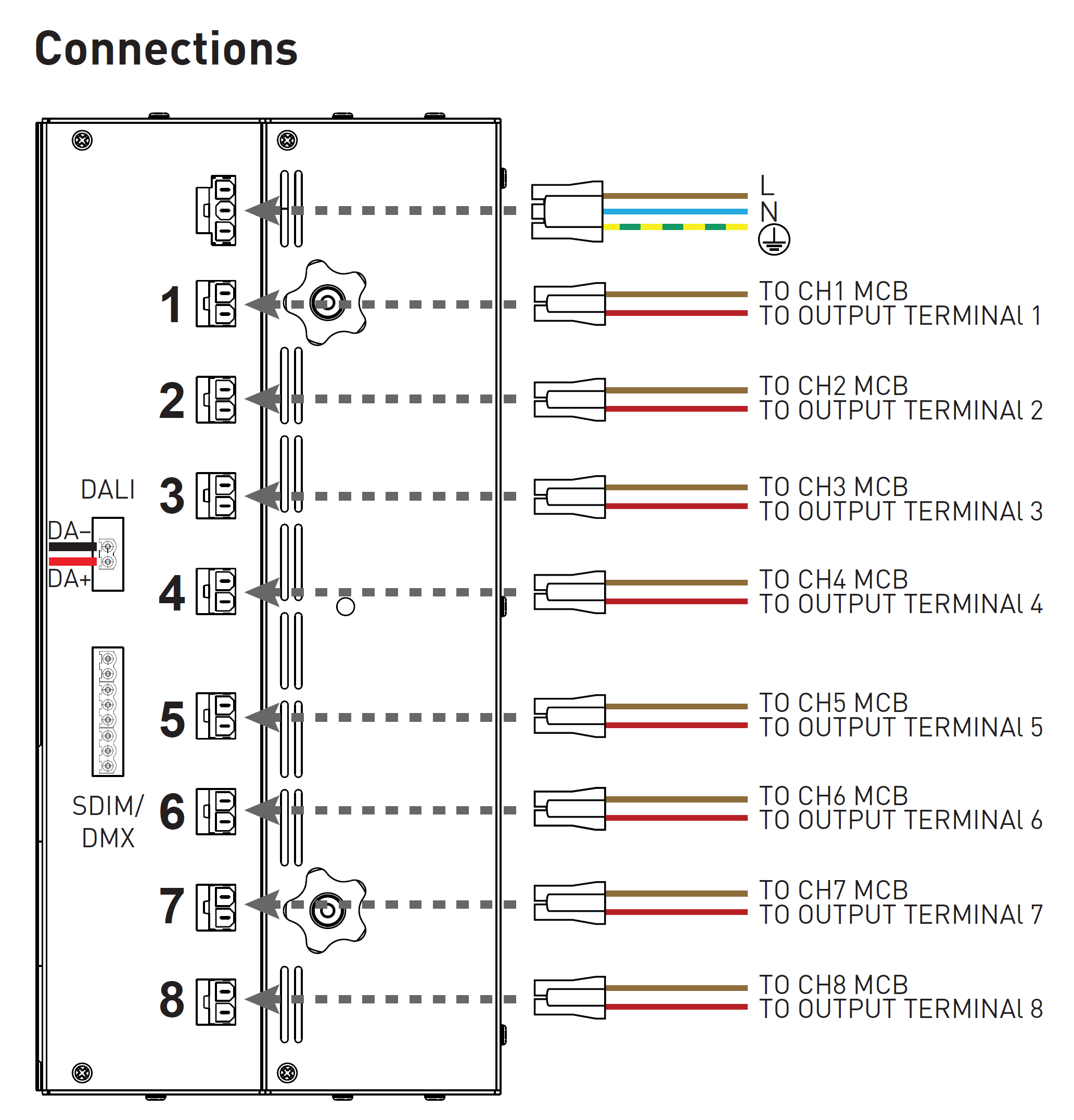

Connections |
|
|
DALI: |
0.5 mm² – 1.5 mm² (max. 300 m @ 1.5 mm²) |
|
SDIM/DMX: |
0.22 m² – 1.5 mm² low-loss RS485 Type (multistranded, twisted and shielded) |
|
Override (OVR): |
0.5 mm² – 1.5 mm² (screened and twisted) |
|
Relay |
|
|
Relay contacts: |
High inrush, single pole, single throw (SPST), normally open (NO), volt-free |
|
Voltage: |
400 VAC |
|
Max. load per contact: |
16 A resistive/incandescent, 10 A HID (cos y = 0.6).Note: For ballasts, quantity is limited by MCB: refer to manufacturer’s data. External protection must not exceed 16 A type C MCB. |
|
Outputs |
|
|
0–10 V: |
Source 20 mA |
|
1–10 V (50 ballasts): |
Sink 100 mA |
|
DALI/DSI® (50 ballasts): |
Source 100 mA |
|
PWM +/– (50 ballasts): |
Source 100 mA |
|
Power |
|
|
Mains supply: |
100 VAC – 240 VAC (nominal)85 VAC – 264 VAC (absolute)45 Hz – 65 Hz |
|
Power consumption: |
1.2 W (excluding loads) |
|
Protection |
|
|
Power circuit protection: |
6 A max. external protection, earth mandatory |
|
Thermal protection: |
Control board – resettable fuse |
|
Installation |
|
|
Mounting: |
Attached to 458M1, 458M2, or 458M3 chassis |
|

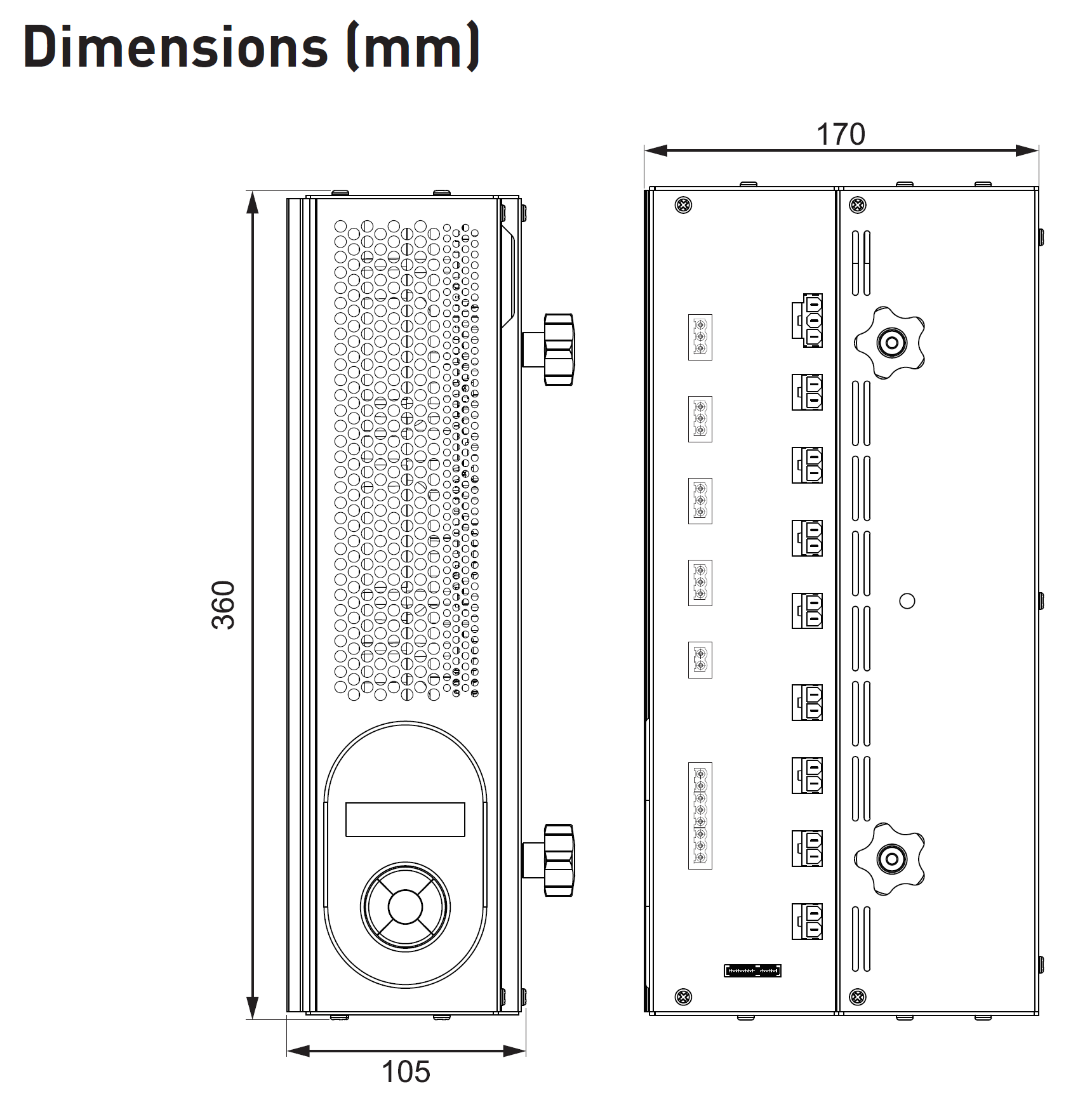

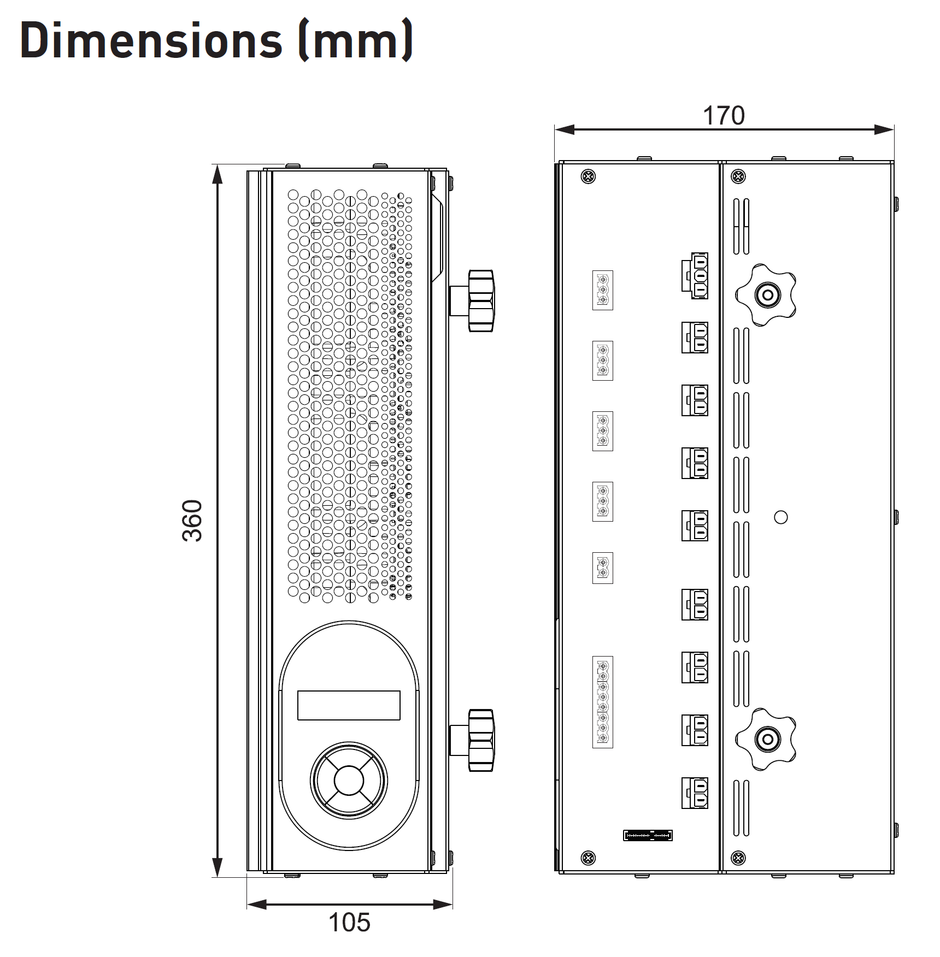

Mechanical data |
|
|
Dimensions: |
105 mm × 360 mm × 170 mm |
|
Housing: |
Powder coated steel (black) |
|
Weight: |
2.2 kg |
|
IP code: |
IP20 |
|
Operating conditions and storage |
|
|
Ambient temperature: |
0 °C to +40 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Storage temperature: |
–10 °C to +70 °C |
|
Conformity and standards |
|
|
EMC emission: |
EN 55015 |
|
EMC immunity: |
EN 61547 |
|
Safety: |
EN 60950 |
|
DALI data transfer: |
According to DALI standard IEC 60929, with Helvar extensions |
|
SDIM data: |
Helvar protocol (RS485, 115 kbps) |
|
DMX data: |
DMX512-A protocol (max. refresh rate: 33 Hz) |
|
Environment: |
Complies with WEEE and RoHS directives. |
