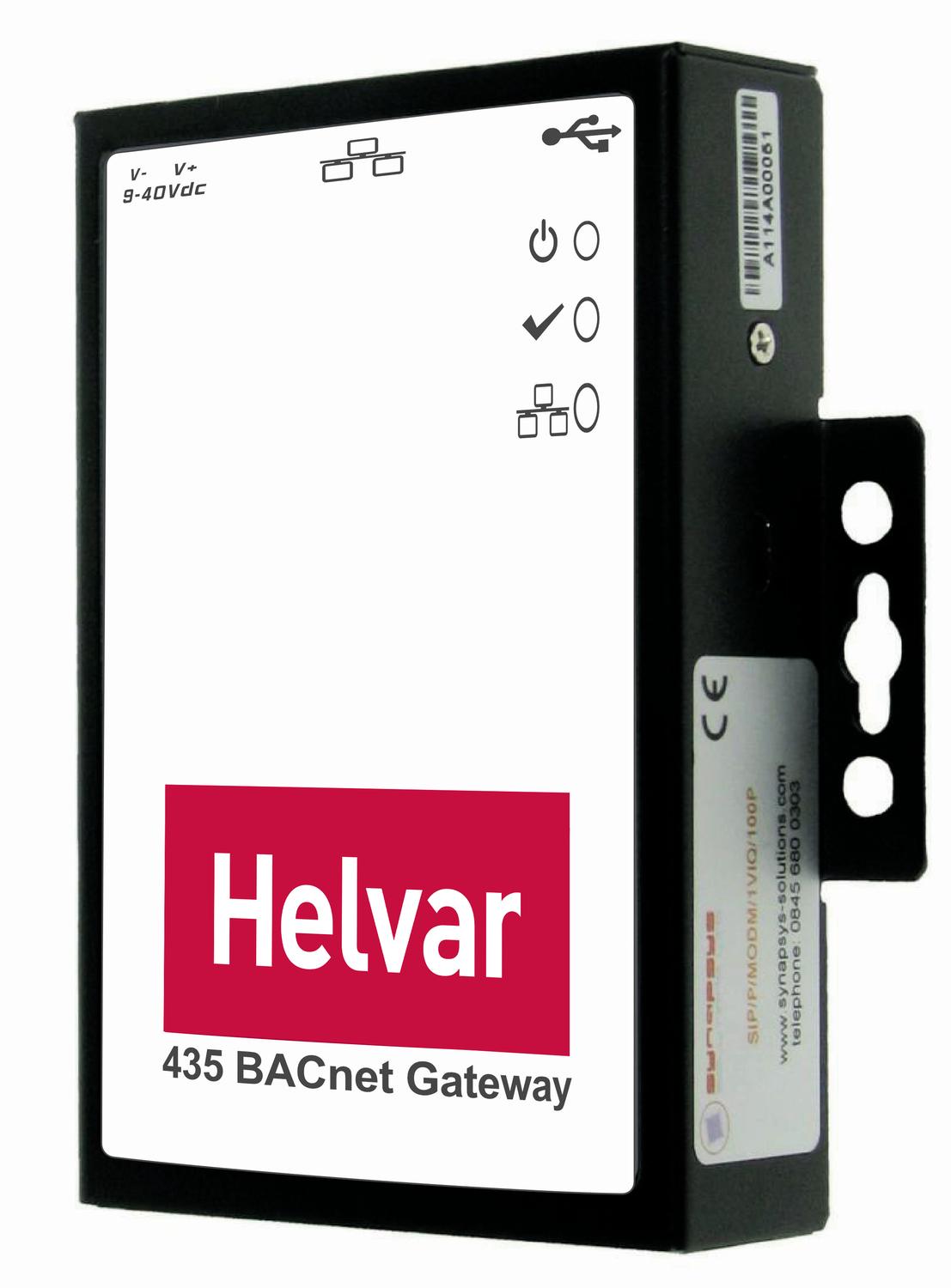

BACnet Gateway (435)
The 435 BACnet Gateway provides a simple interface to a Helvar router system and allows lighting system data to appear in a BACnet Building energy Management System

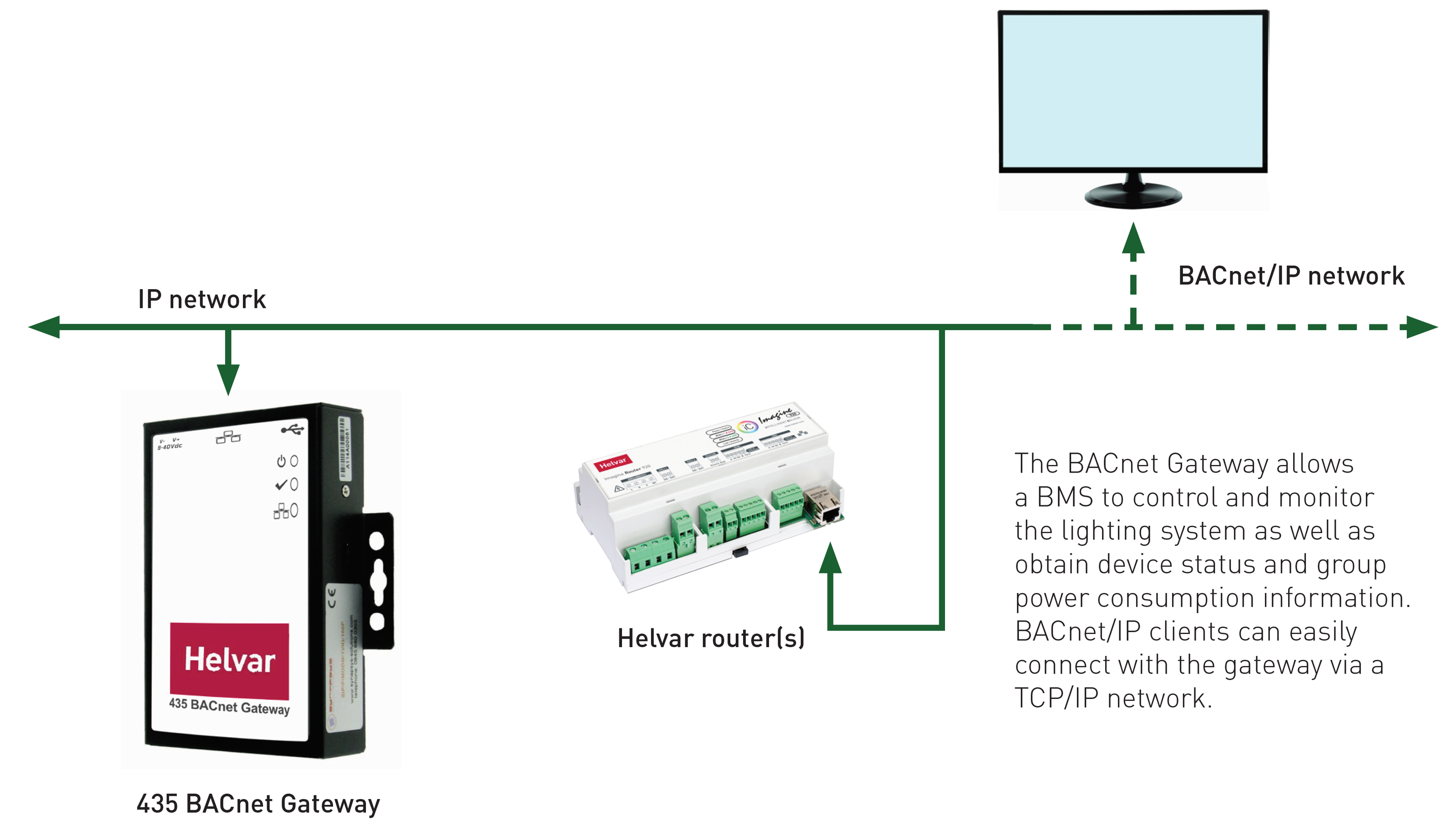

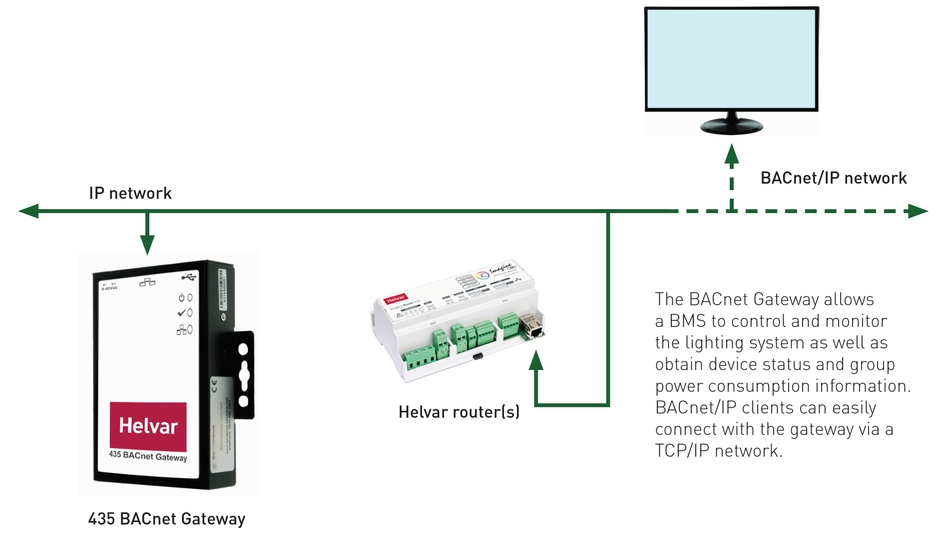

The BACnet Gateway allows a BMS to control and monitor the lighting system as well as obtain device status and group power consumption information. BACnet/IP clients can easily connect with the gateway via a TCP/IP network
Key Features
- Operates as BACnet server
- Helvar workgroup discovery tool
- Helvar router selector
- Automatic Helvar point identification
- BACnet/IP compatible
- Automatic BACnet instance labelling
- COV (change of value) BACnet feature
- Browser programming interface
Device Limits
- Single workgroup
- 20 routers
- 300 groups
- 2000 BACnet/IP points
Available Router to BACnet/IP Communication
|
Helvar router |
BACnet point instance |
|
Group or DALI device |
|
|
Group scene |
AV – Analogue value (read and write) |
|
Group consumption |
AI – Analogue input (read only) |
|
Group direct level |
AO – Analogue output (write only) |
|
Router fail |
BI – Binary inputs (read only) |
|
Device missing |
BI – Binary inputs (read only) |
|
Lamp fail |
BI – Binary inputs (read only) |
Technical Data
|
Connections |
|
|
Connection type: |
1 × 10/100 Mb/s for TCP/IP |
|
Default IP address: |
10.254.0.100 |
|
Default subnet mask: |
255.0.0.0 |
|
Power input: |
9 VDC – 40 VDC |
|
Power consumption: |
300 mA @12 VDC 150 mA @ 24 VDC |
|
Mechanical data |
|
|

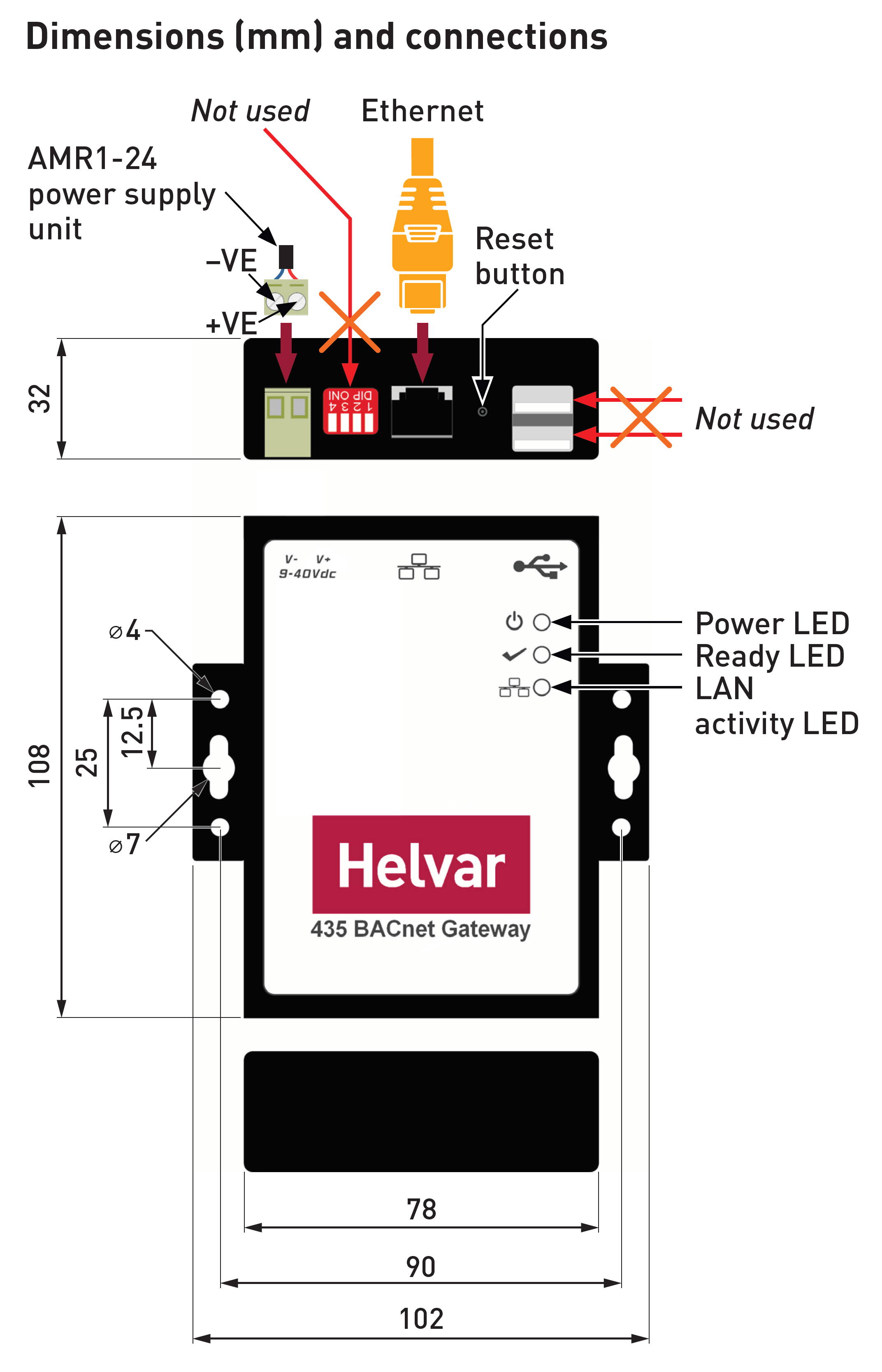

Dimensions: |
78 mm × 108 × 32 mm (excl. brackets) 102 mm × 108 × 32 mm (incl. brackets) |
|
Weight: |
330 g per unit (excl. DIN rail clips) 410 g shipped (incl. DIN rail clips) |
|
Operating and storage conditions |
|
|
Operating temperature: |
0 °C to +70 °C |
|
Storage temperature: |
0 °C to +70 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Conformity and standards |
|
|
EMC emission: |
EN 55032 Class A |
|
EMC immunity |
EN 55024 |
|
Environment: |
Complies WEEE and RoHS directives. |
|
Compatibility |
|
|
Helvar router firmware: |
v5.2 and above |
|
Web browsers: |
Firefox (recommended), Chrome, Internet Explorer |
