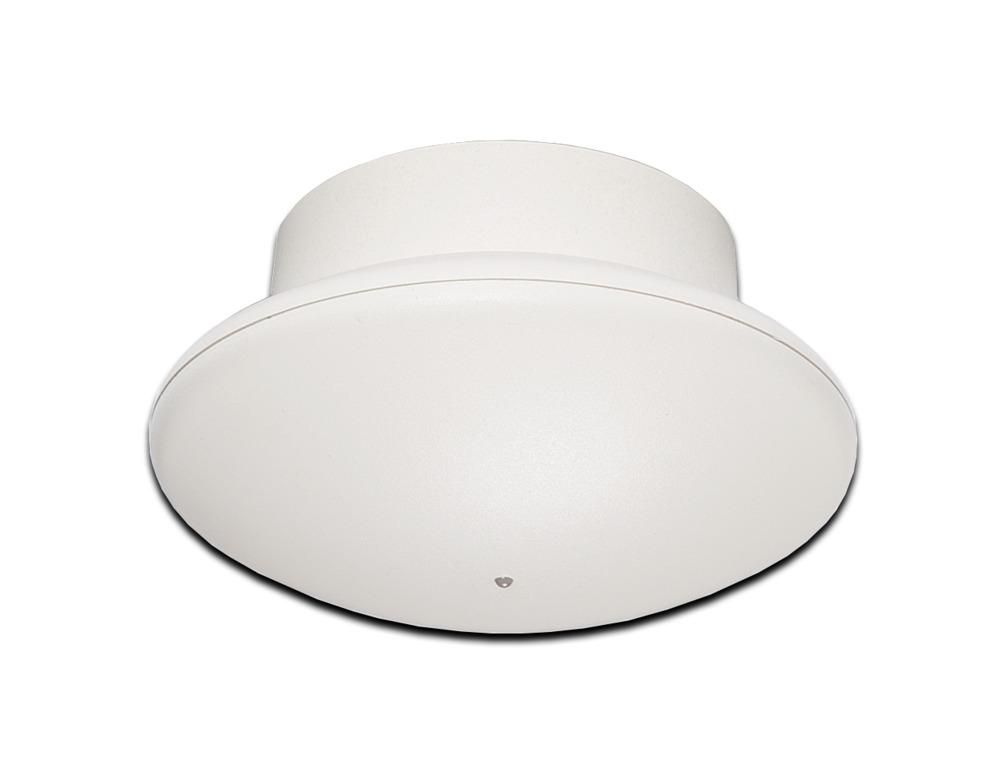

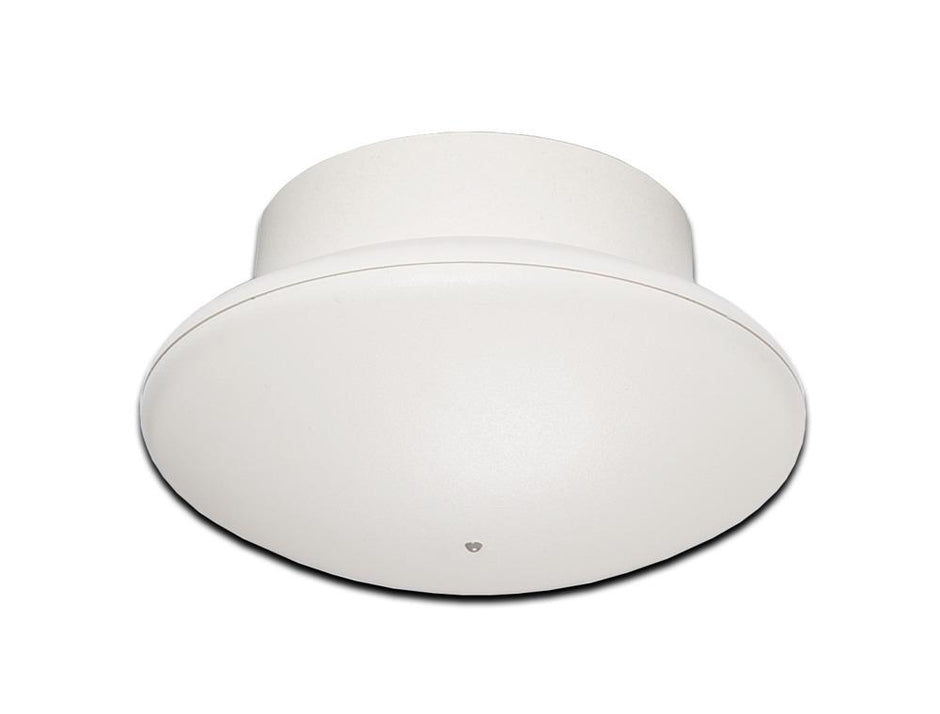

EnOcean Gateway (434)

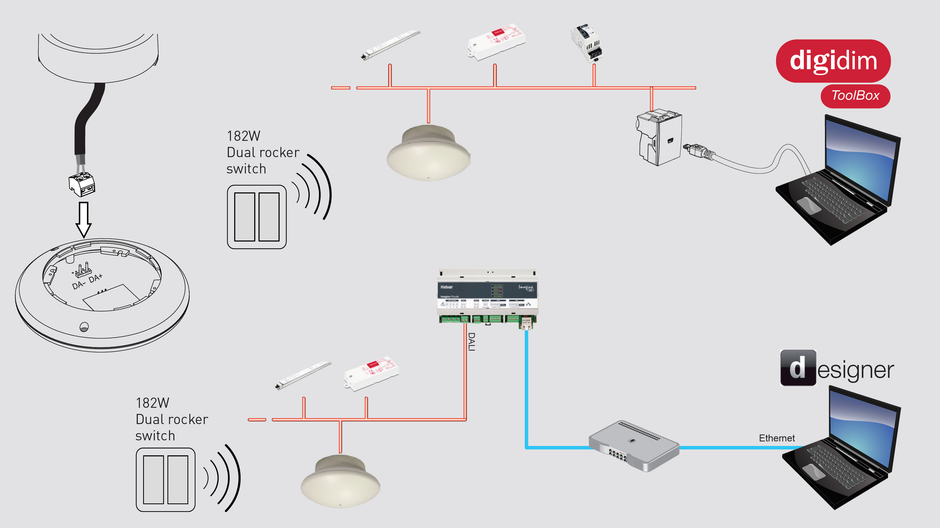

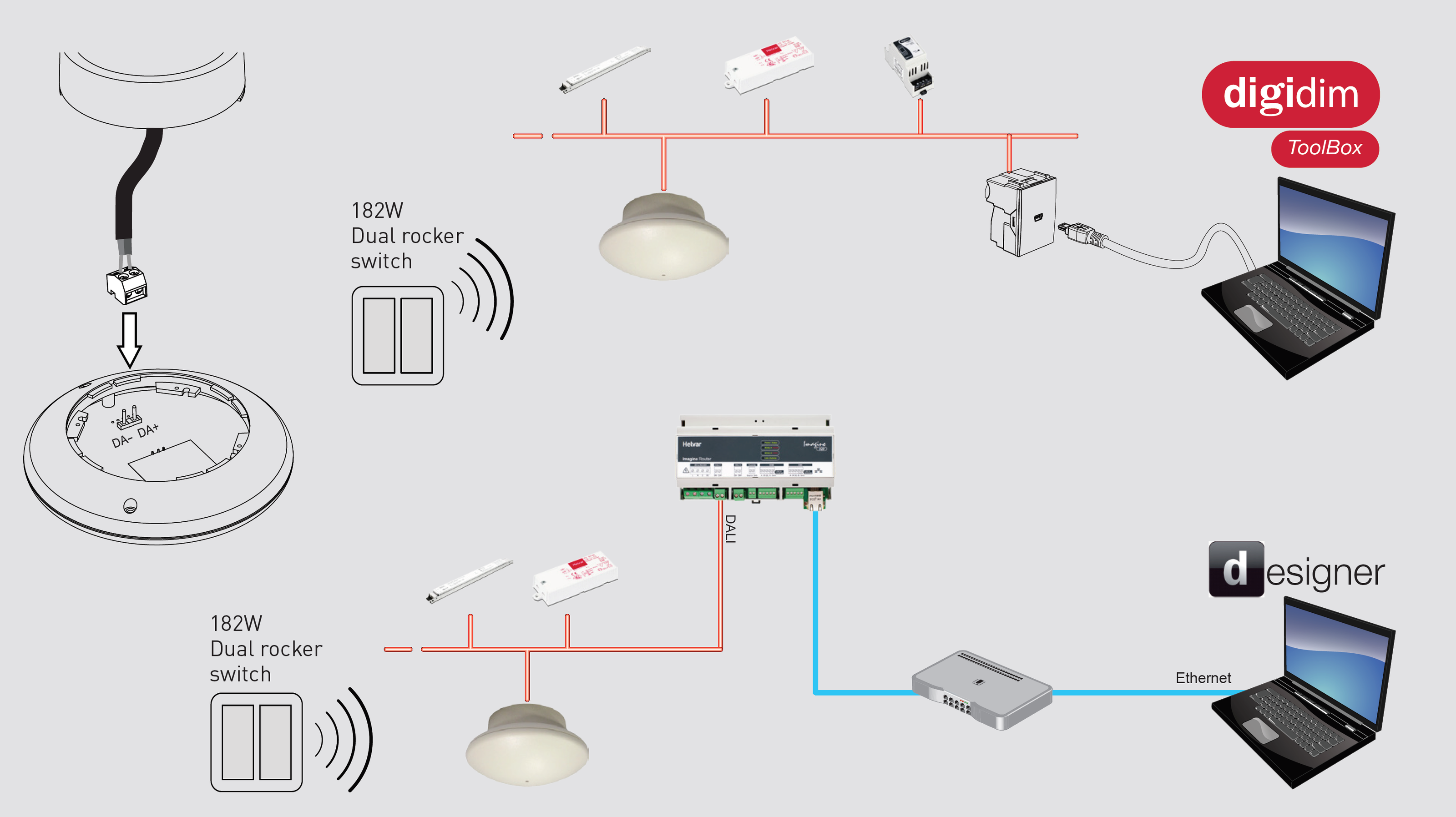

The 434 EnOcean Gateway allows you to connect wireless and batteryless EnOcean controls to a Helvar DALI lighting network.
It can be mounted on the ceiling or on walls, and requires only a single electrical connection to a DALI network.
Once installed, the 434 will support up to 20 EnOcean switches without any other wiring. The switches are batteryless, thanks to energy-harvesting technology, and maintenance-free. Energy is generated by pressing the EnOcean button, and a radio signal is sent to the Gateway.
The EnOcean switches can be configured in just a few minutes using Helvar’s Designer or Toolbox software.
Key Features
- Integrate wireless, batteryless switches into DALI
network.
- Simple installation.
- Gateway is powered by the DALI network.
- Up to 20 switches can be integrated via one gateway.
Technical Data
|
Connections |
|
|
DALI: |
Removable 2-part connector block Wire size: 0.5 mm² – 2.5 mm² solid or stranded |
|
Cable rating: |
All cables must be mains rated. |
|
Power |
|
|
DALI supply input: |
13 V – 22.5 V |
|
DALI consumption: |
20 mA |
|
Operation |
|
|
Supported profile: |
EnOcean EEP F6–02–xx, F6-04–xx (PTM 210/215 normal mode) |
|
Range (switches): |
Typical EnOcean Switches: 30 m (unobstructed space) |
|
Max. No. of switch units per gateway: |
20 |
|
Operating frequencies |
|
|
The following models can be safely used in the countries listed below: |
|
|
Model |
Frequency and countries |
|
434 |
868 MHz European Union, Iceland, Liechtenstein, Norway, Switzerland and other countries adopting the RED directive. |
|
434/R2* |
928 MHz Japan and other countries adopting the ARIB specification. |
|
Mechanical data |
|
|
Dimensions: |
110 mm (⌀) × 58 mm |
|
Weight: |
75 g |
|
Colour: |
White: RAL 9002 |
|
IP code: |
IP30 |
|
Operating conditions |
|
|
Ambient temperature: |
0 °C to +50 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Storage temperature: |
–10 °C to +70 °C |
|
Conformity and standards |
|
|
EMC: |
EN 55015 EN 61547 |
|
Safety: |
EN 60950-1 |
|
RED: |
EN 300220-2 (434) EN 301489-3 (434) |
|
ARIB: |
STD-T108 (434/2) |
Status LED
EnOcean Receiver
Receives control commands from EnOcean switches (available separately).
Status LED: red or green.
In normal operation, the LED remains unlit.
The red LED flashes to indicate one of the following:
- FAST: DALI network in process of discovering the Gateway.
- FAST: Designer or Toolbox software identifying the Gateway.
- SLOW (every 1.25 s): Gateway is in Learning Mode.
The green LED flashes to indicate the following:
- The Gateway is in Learning Mode, and has detected a switch (received a signal from a switch unit).
