The DIGIDIM Modular control panels are a DALI-compatible range of user interfaces that allow basic adjustments to the lighting system.

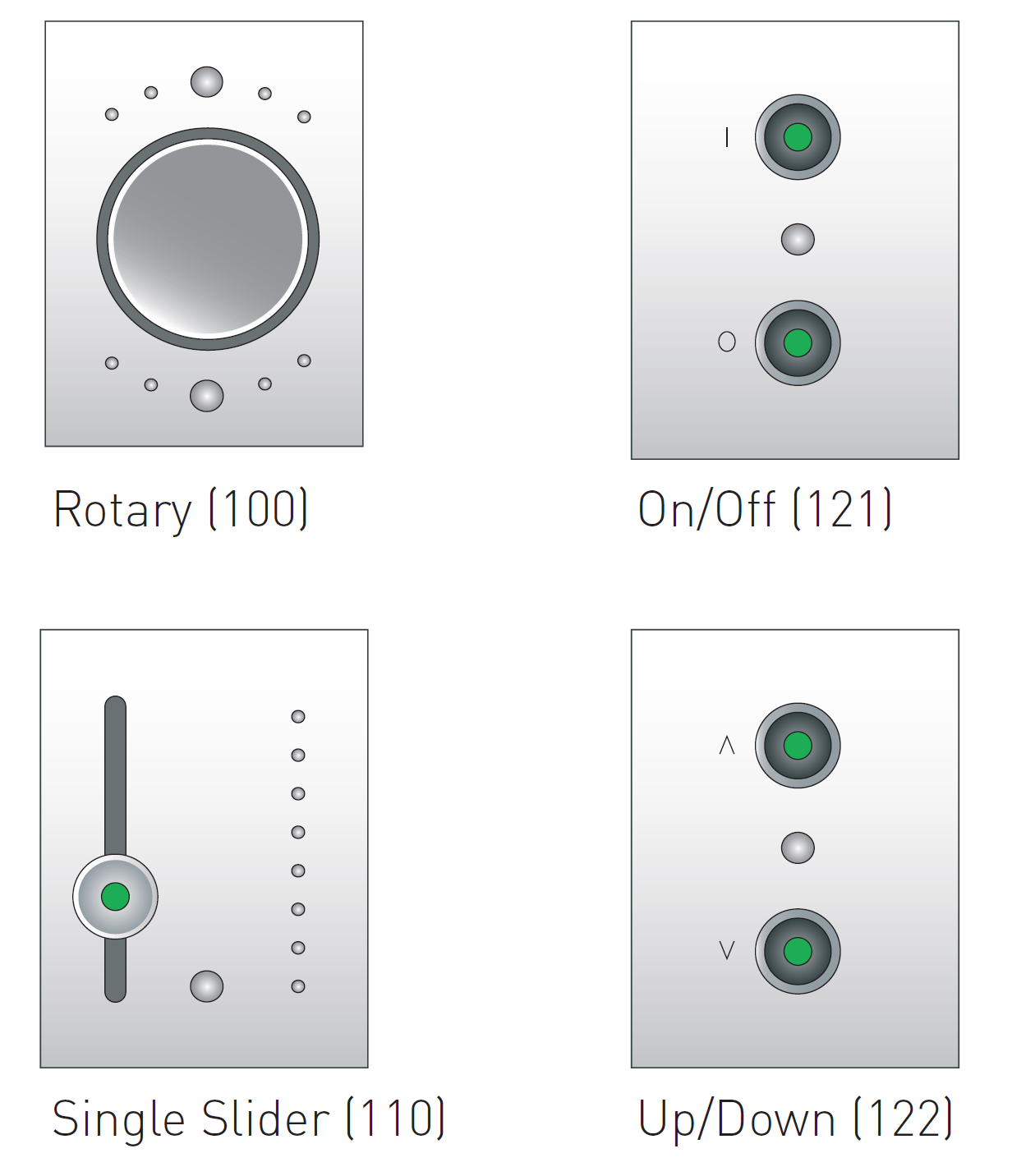

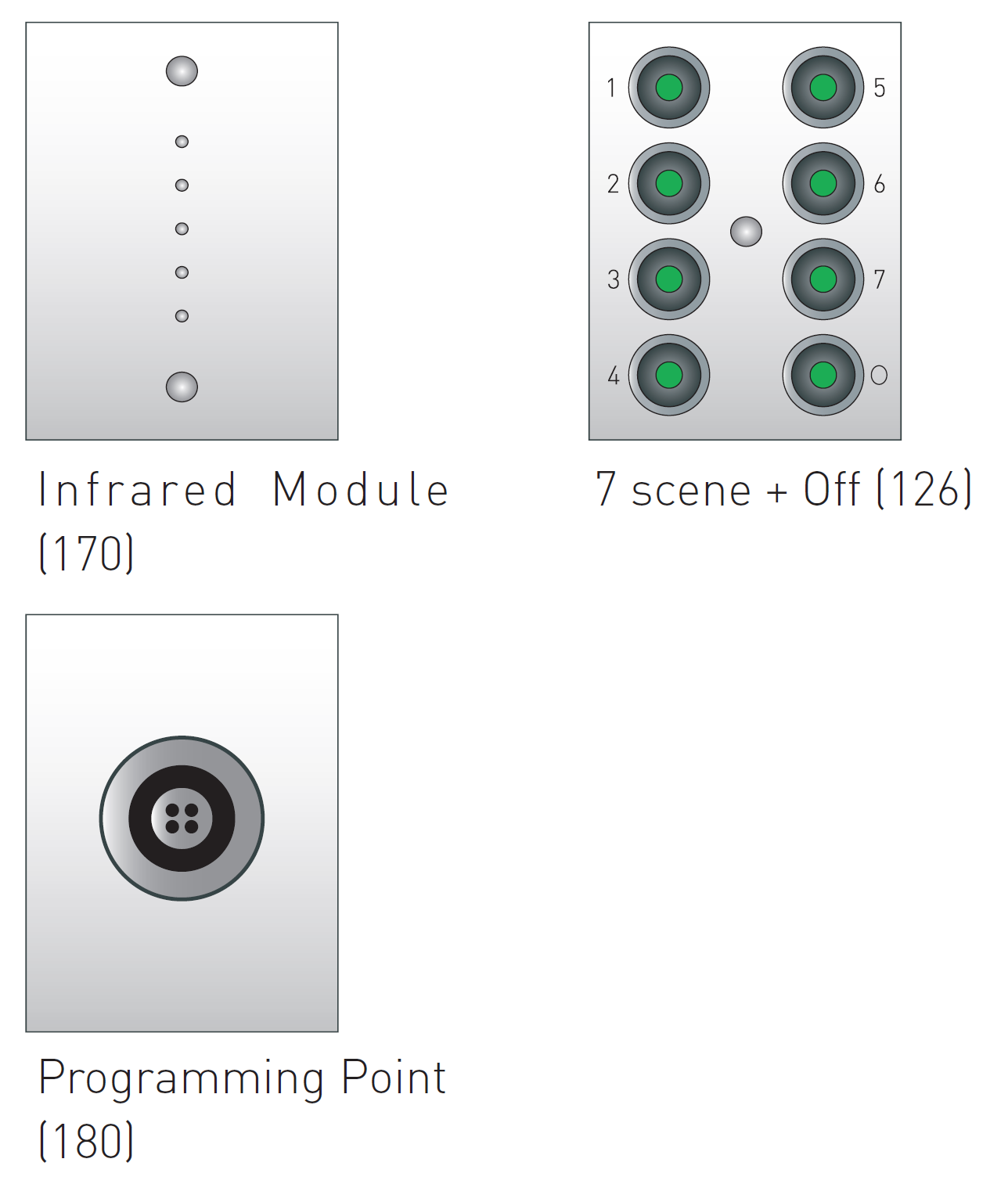

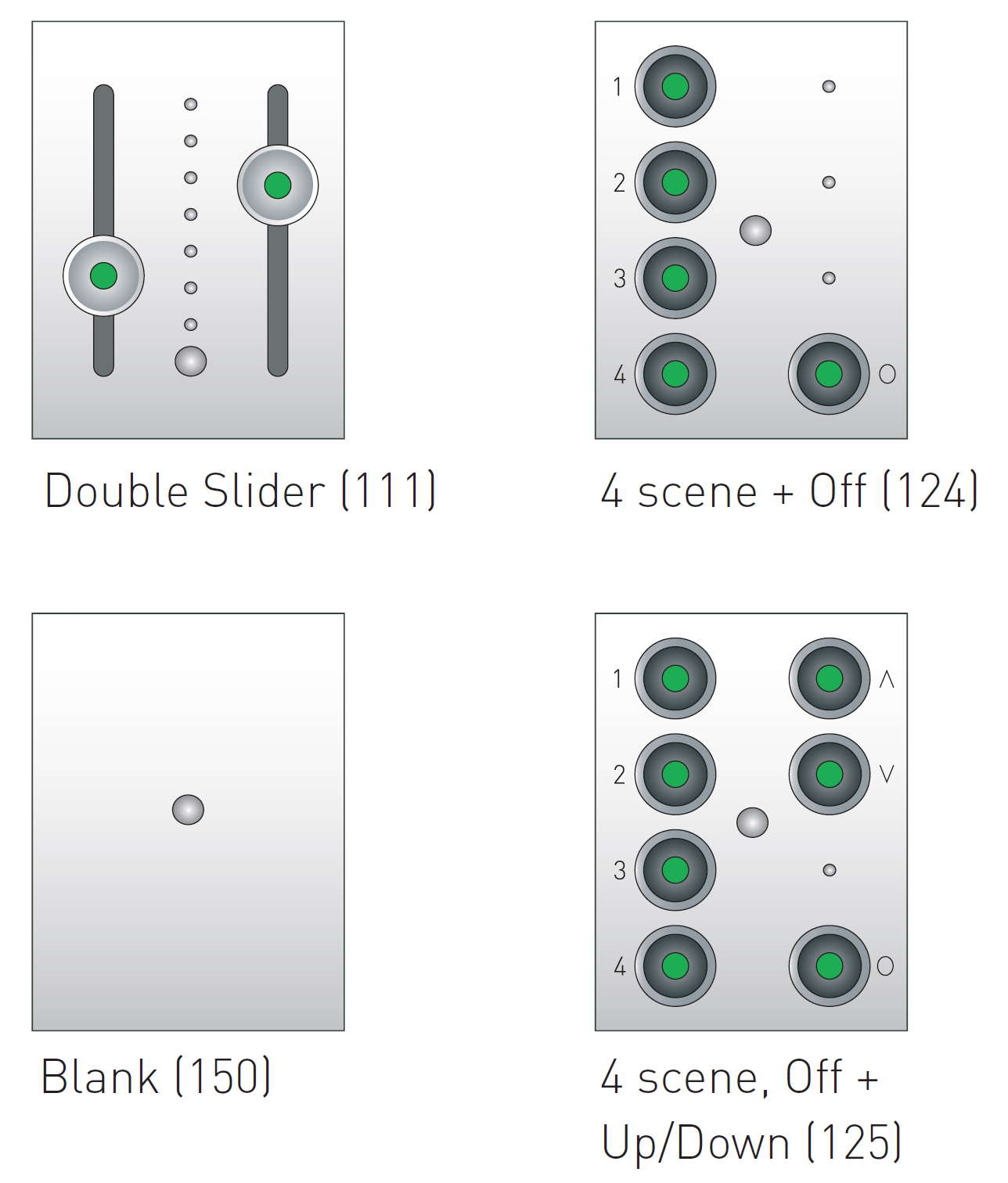

The range includes pushbutton, rotary and slider controls in a range of panel finishes. Each panel is fitted with an indicator LED and an infrared receiver that gives the option of remote operation using a Helvar infrared remote control.
The remote control also allows additional control of the system’s functions and can be used as a programming device on simple systems.
Key Features
- Out-of-box operation, supplied preprogrammed
- Easily reconfigured and fully programmable
- Designed to fit both DIN and UK standard back boxes
- Double-gang version can take three independent modules
Panel Finishes

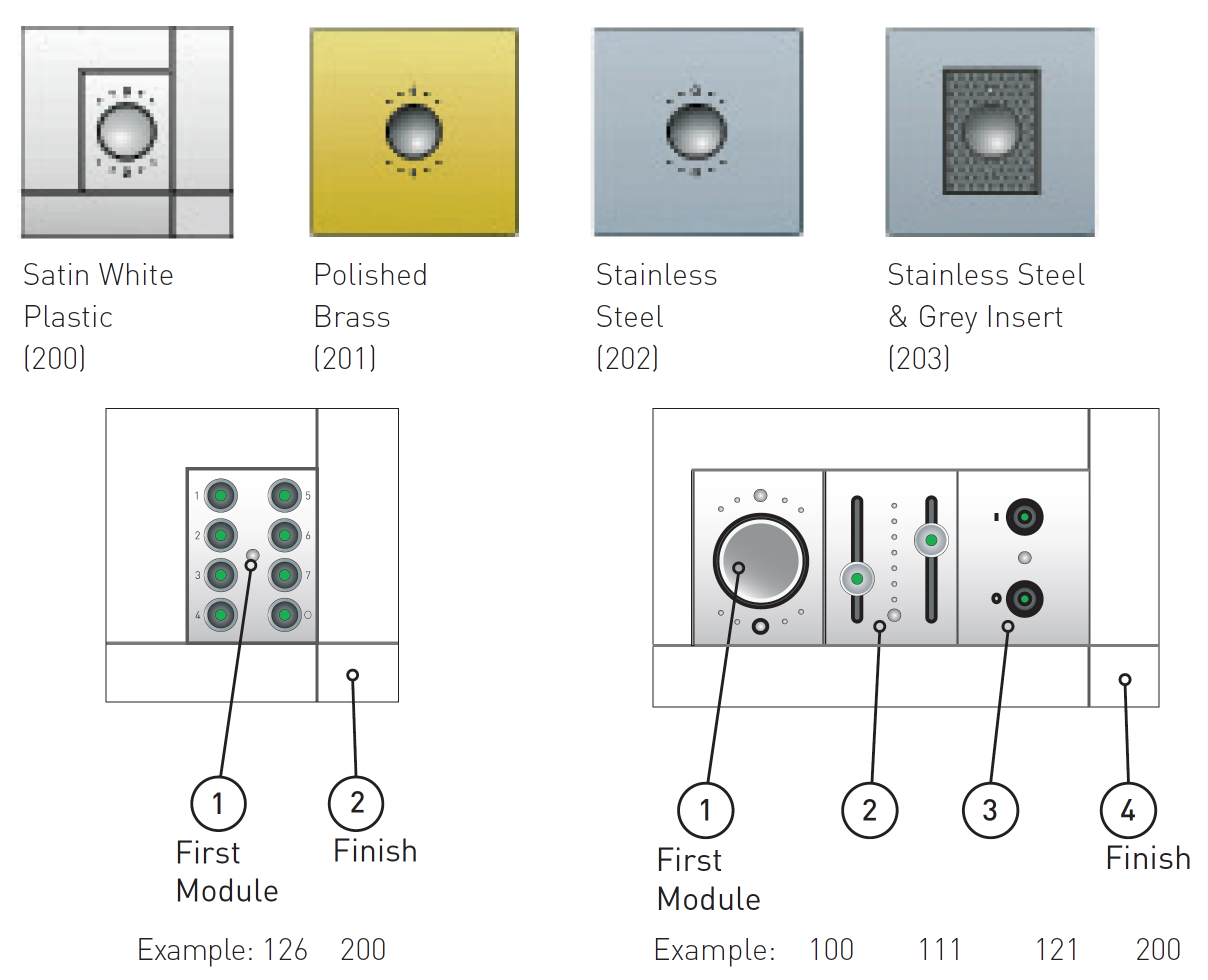

The modular control panels are available in a range of finishes, which are shown below.
Installation Notes
- All DIGIDIM Modular Panels use a data protocol that conforms to the DALI protocol.
- All cabling must be 230 V mains rated.
Technical Data
|
Connections |
|
|
DALI cable: |

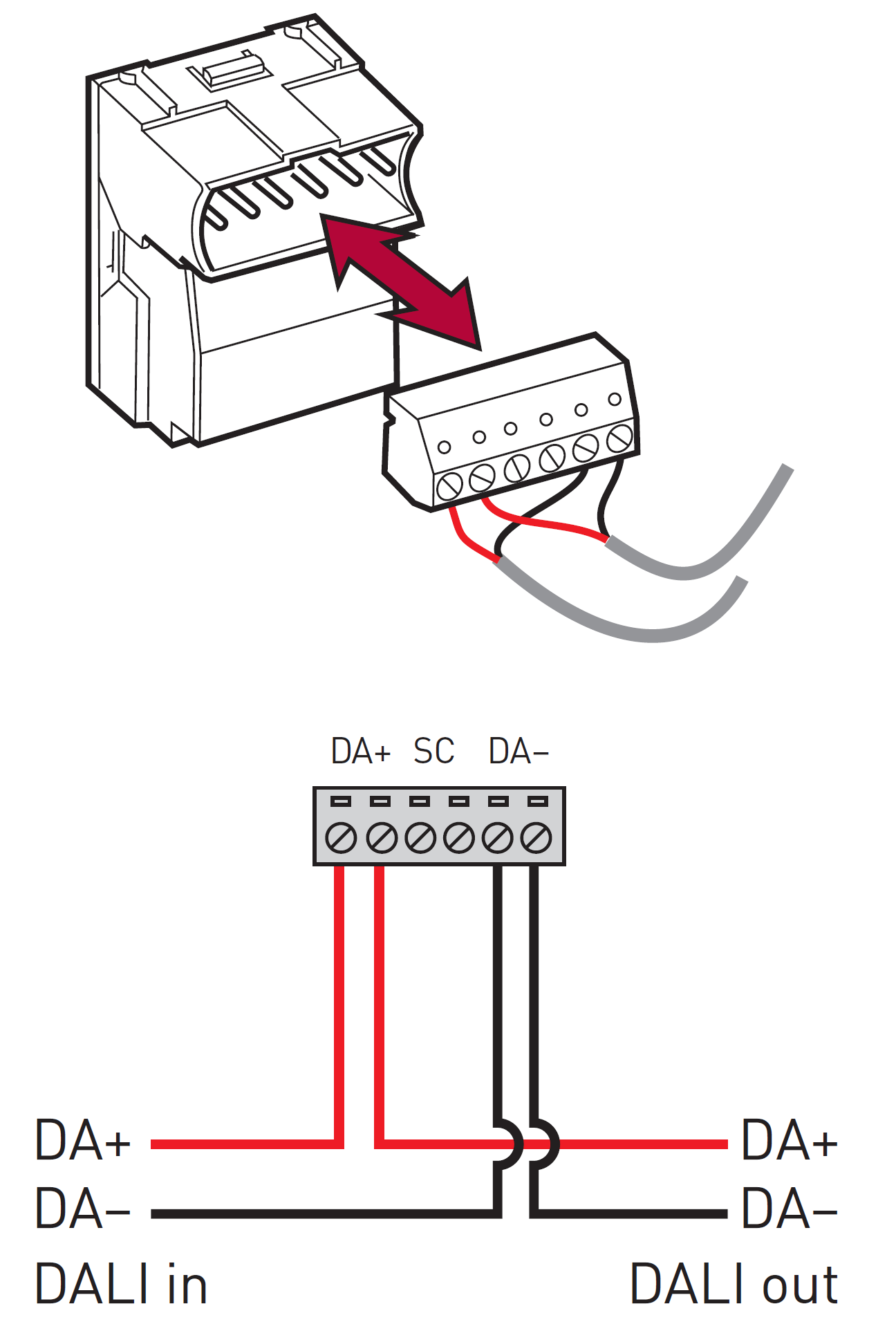

Removable connector blockWire size 0.5 mm² – 2.5 mm² stranded or solid core |
|
Power |
|
|
DALI supply input: |
13 V – 22.5 V |
|
DALI consumption: |
10 mA |
|
Mechanical data |
|
|
Dimensions: |

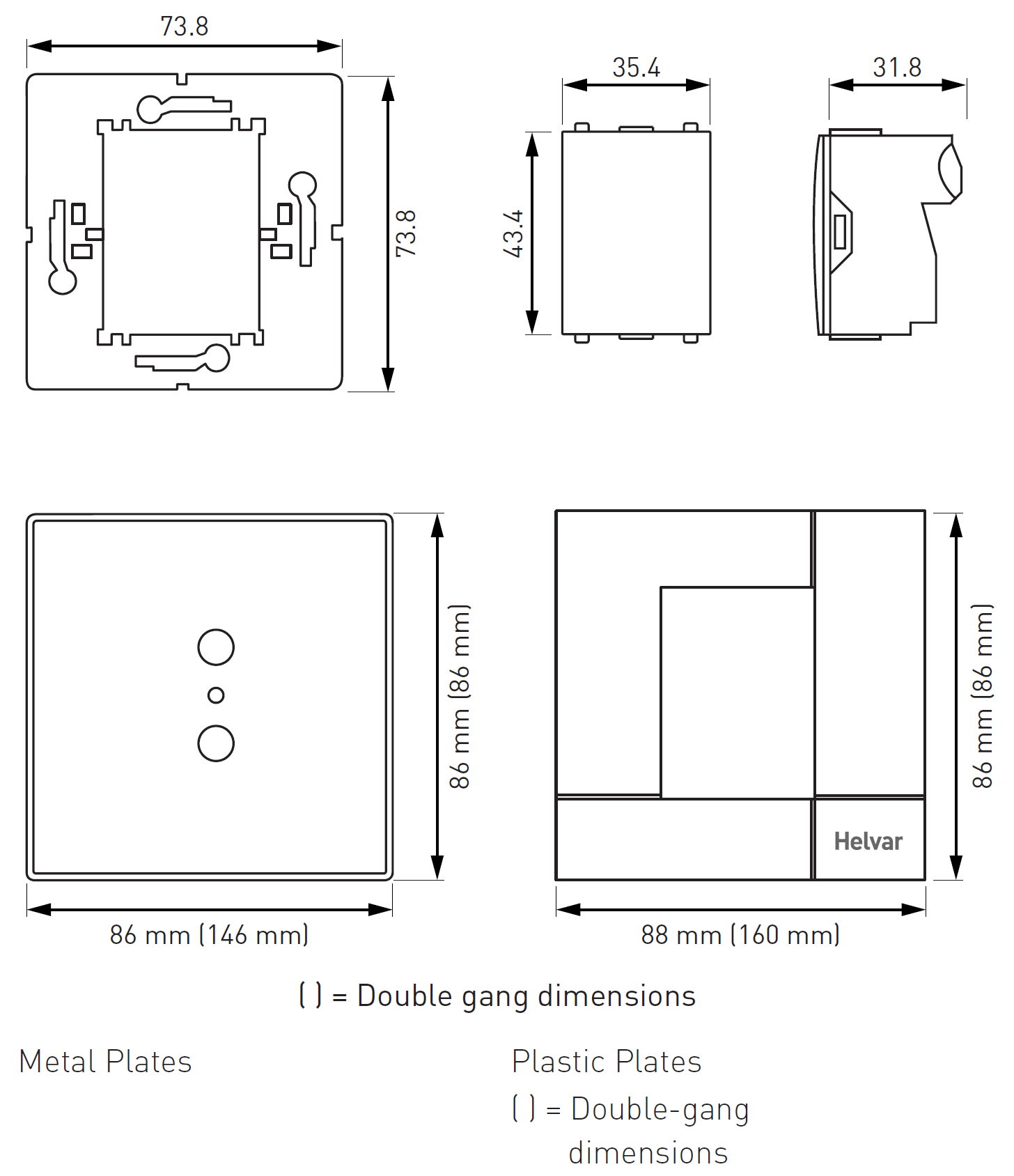

35.4 mm × 31.8 mm × 48.4 mm |
|
Module weight: |
41 g with DALI connector |
|
Complete unit: |
97 g (ON/OFF module with satin white plastic plate) |
|
IP code: |
IP30 |
|
Operating conditions |
|
|
Ambient temperature: |
0 °C to +40 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Storage temperature: |
–10 °C to +70 °C |
|
Conformity and standards |
|
|
EMC emission: |
EN 55015 |
|
EMC immunity: |
EN 61547 |
|
Safety: |
EN 61347-2-11 |
