13xx Modular Panels
The 13xx modular panels are a customisable, DALI-compatible range of user interfaces that allow control of the lighting system. Each module is fitted with indicator LEDs and an infrared receiver that gives the option of remote operation using DIGIDIM hand-held remote controls. The hand-held remote also allows additional control of the system’s functions and can be used as a programming device on simple systems.
Key Features
- Choice of black (B) or white (W) modules.
- Simple connection: out-of-box operation.
- Easily reconfigured and programmable using Helvar Designer and Toolbox.
- Designed to fit DIN and UK standard back boxes.
- Double-gang version can take three independent modules.
- Customisable versions available upon request. Both the button layout of the panels and the images or labels that are printed on each button can be customised. Contact your local Helvar representative for further information.
Module Types
The following modules are available:
|
Module Function |
Product Code White |
Product Code Black |
|

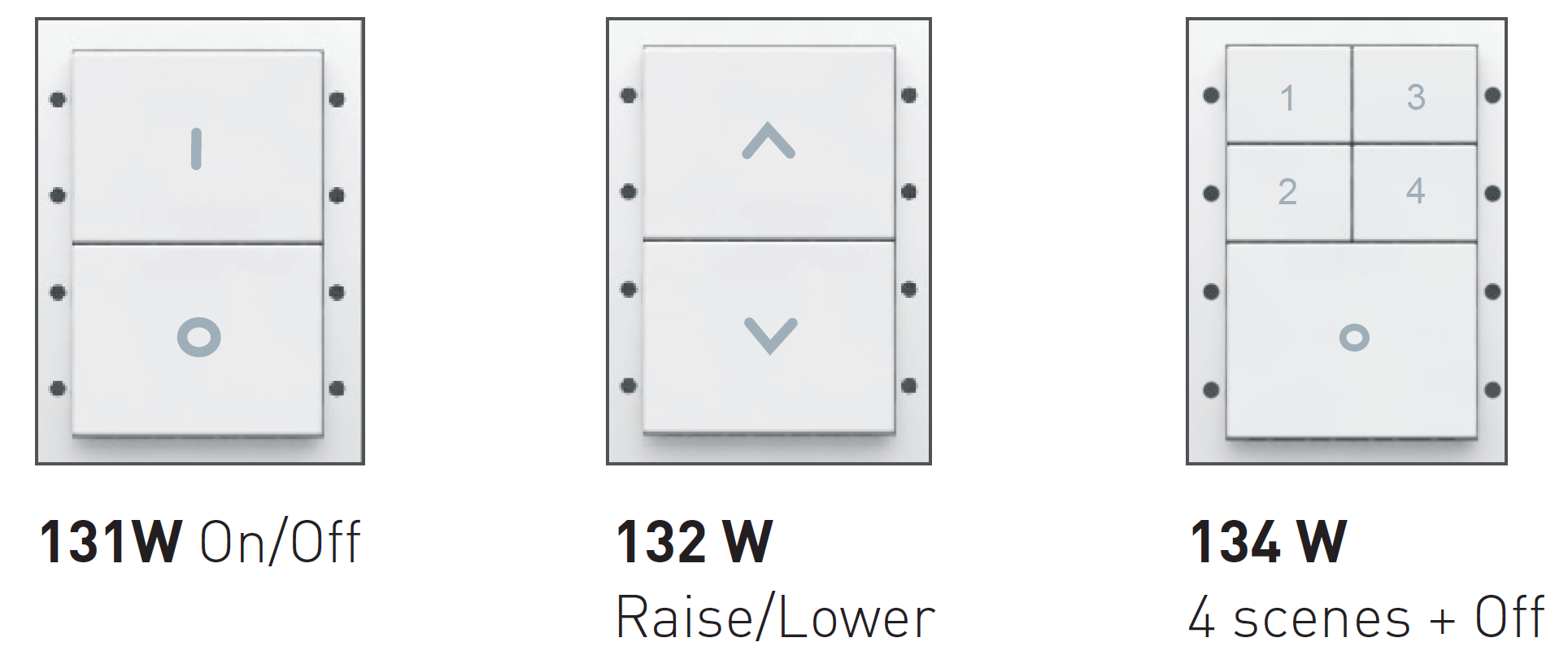

On / Off (2 buttons) |
131 W |
131 B |
|
Raise/Lower (2 buttons) |
132 W |
132 B |
|
4 scenes + Off (5 buttons) |
134 W |
134 B |
|

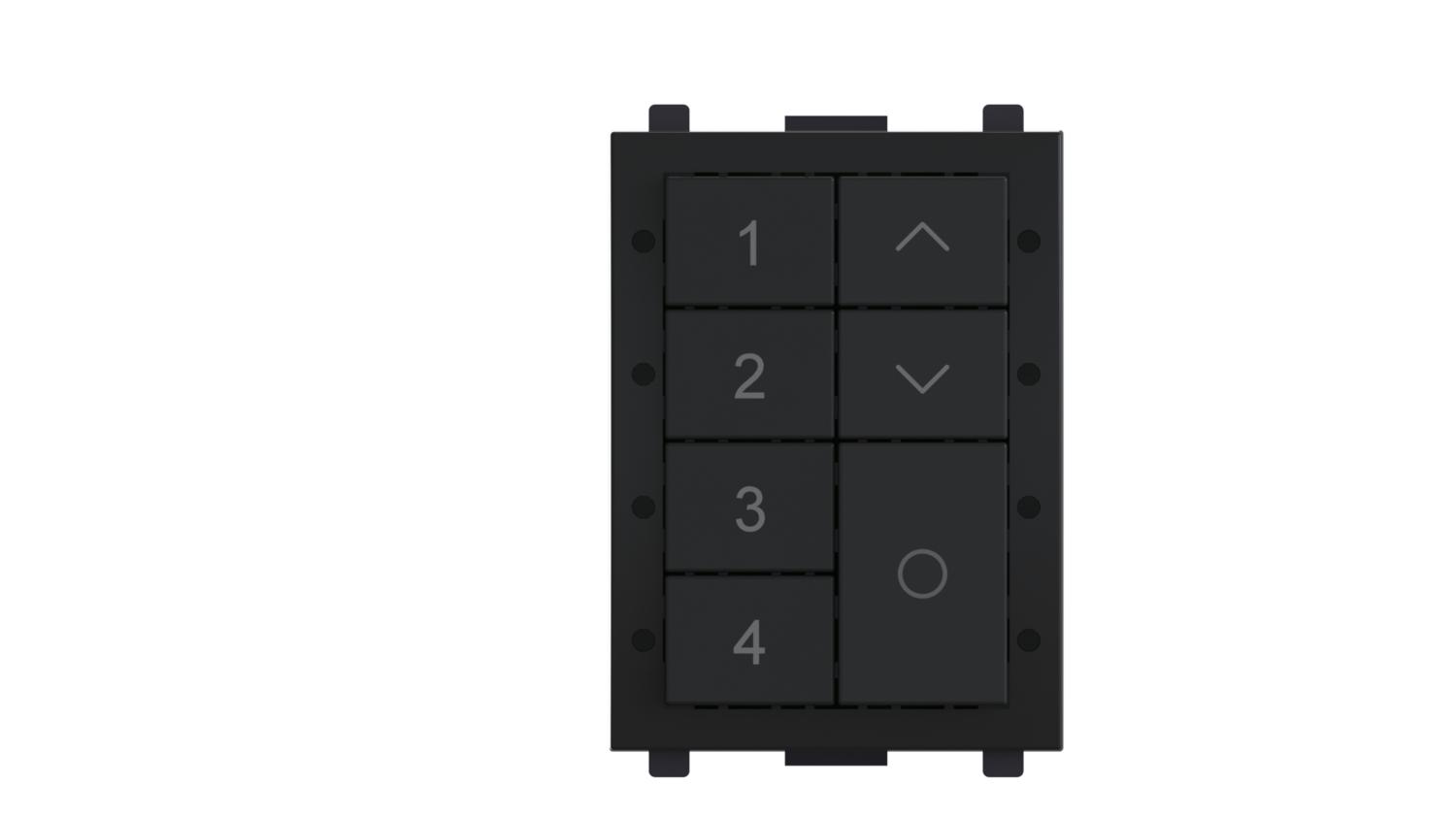

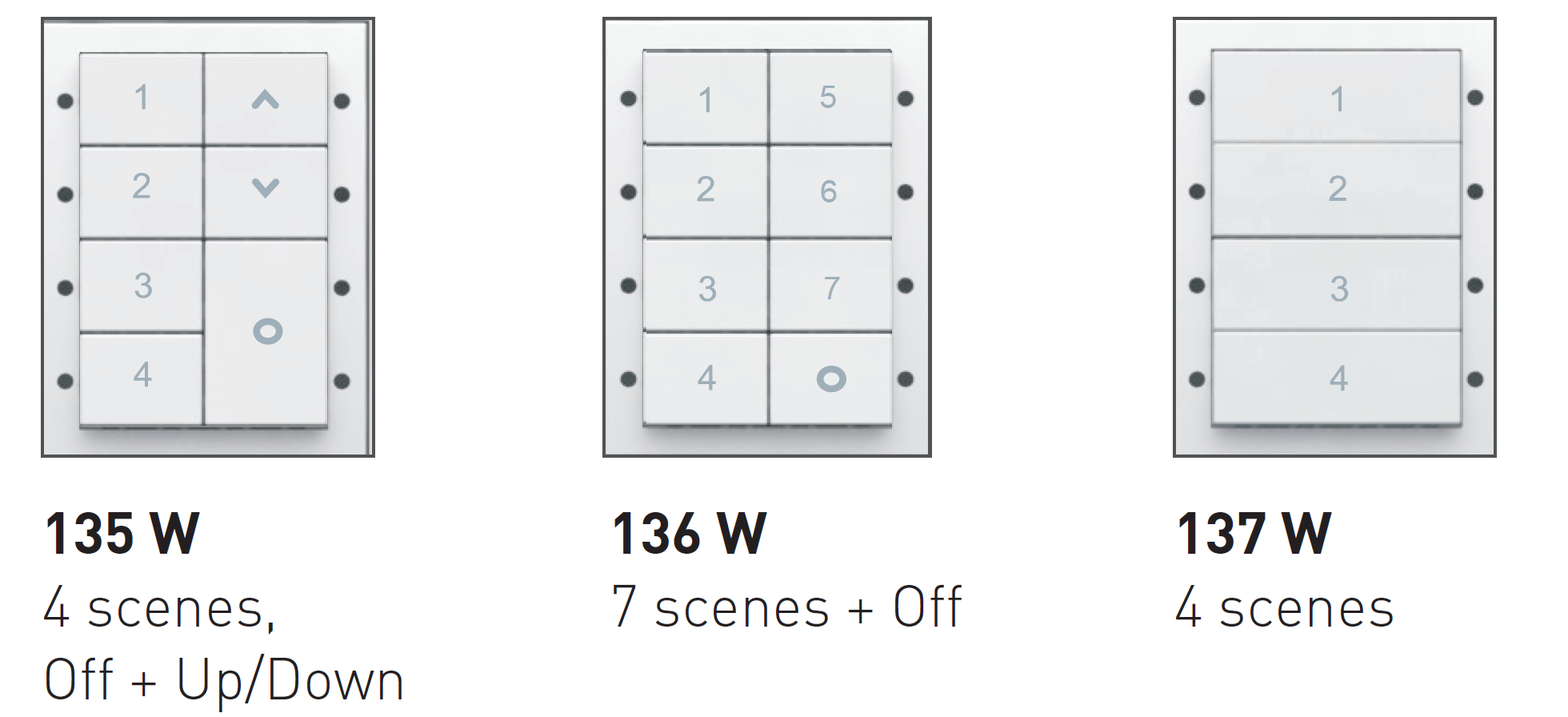

4 scenes, Off + Up/Down (7 buttons) |
135 W |
135 B |
|

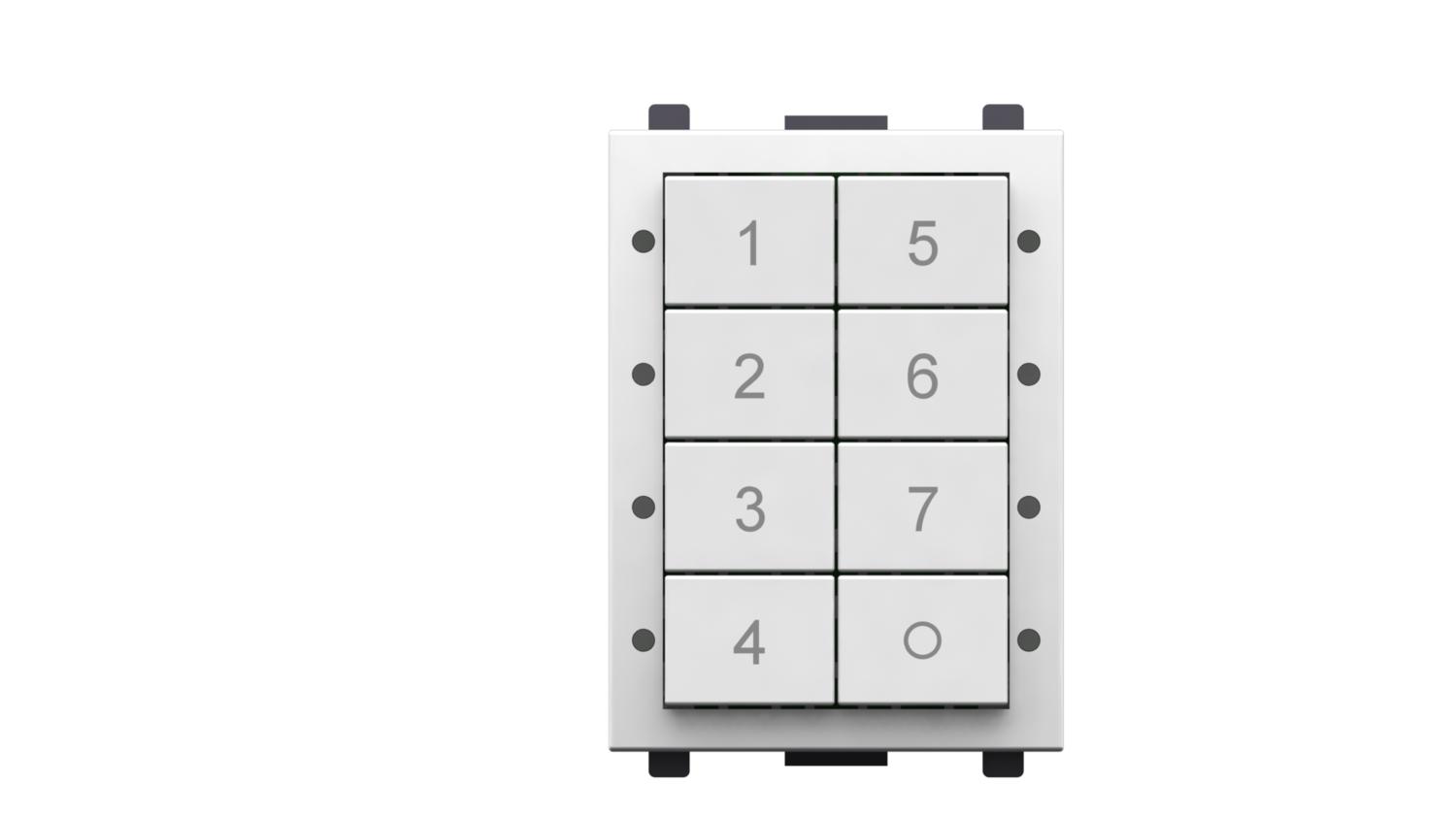

7 scenes + Off (8 buttons) |
136 W |
136 B |
|

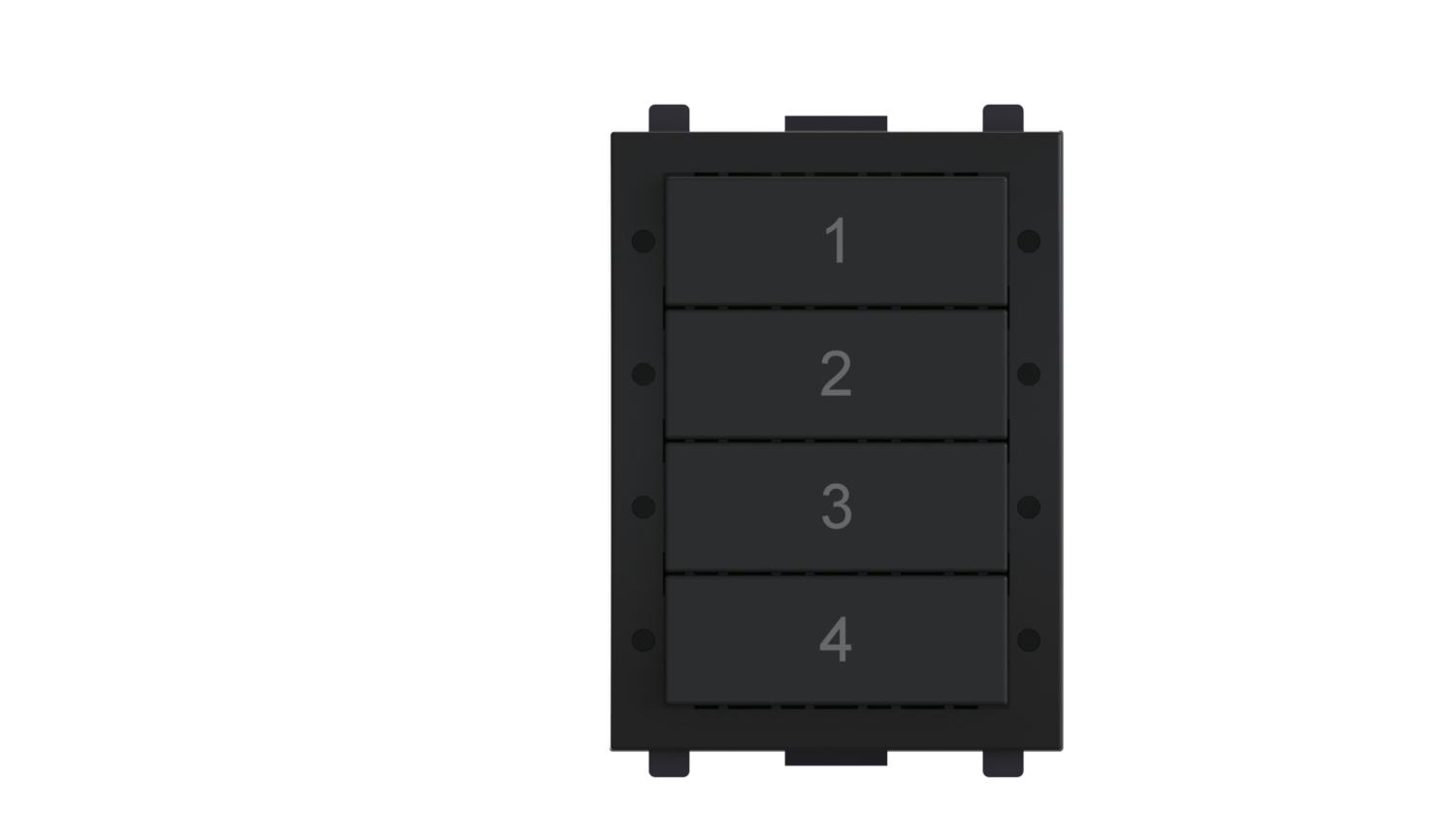

4 scenes (4 buttons) |
137 W |
137 B |
Technical Data
|
Connections |
|
|
DALI cable: |
Removable connector block Wire size: 0.5 mm² – 2.5 mm² solid or stranded |
|
Cable rating: |
All cables must be mains rated. |
|
Power |
|
|
DALI supply input: |
13 V to 22.5 V |
|
DALI consumption: |
10 mA |
|
Operation |
|
|
IR frequency: |
36 kHz |
|
Mechanical data |
|
|
Dimensions: |
35.4 mm × 48.4 mm × 31.8 mm |
|
Module weight: |
41 g with DALI connector |
|
IP code: |
IP30 |
|
Operating conditions |
|
|
Ambient temperature: |
0 °C to +40 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Storage temperature: |
–10 °C to +70 °C |
|
Conformity and standards |
|
|
EMC emission: |
EN 55015 |
|
EMC immunity: |
EN 61547 |
|
Safety: |
EN 61347-2-11 |
|
Environment: |
Complies with WEEE and RoHS directives. |
|
DALI data transfer: |
All DIGIDIM modular panels use a data protocol that conforms to the DALI protocol. |
