LACE - IntiLED

TECHNICAL CHARACTERISTICS

light source:

Nichia

light color:
white (3000K/ 4000K/ 5000К/)/ RGB/ full color
optics:
120°
luminous flux:
up to до 1025 lm/m
wattage:
up to 36 W/m
voltage:

5/24

protection class:
IP 68, 68-Salt
lifespan:
not less than 50 000 hours
operating temperature:
-40°С ... +45°С
control:

DMX-512

bending:
vertical/horizontal bendable
materials:
PETERS® bi-components polyurethane resin UV treatment, PVC outer case, Kapton© LED boards, providing a high level of resistance to mechanical loads
mounting:

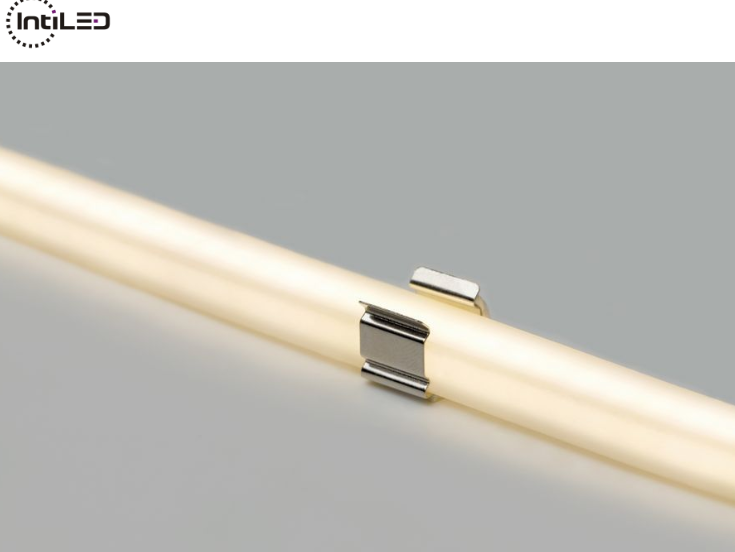

different mounting options available: sylicon clipses and outercases for the curved surfaces, aluminum profiles or steel clipses for the flat surfaces. The power cable exit can be from the end, side and back of the fixture depending on the project
attention:
do not cut! do not bend the profile with radius less than 80mm! no flex in the opposite direction!
