Đặc điểm sản phẩm
The efficient and cost-optimised basic solution

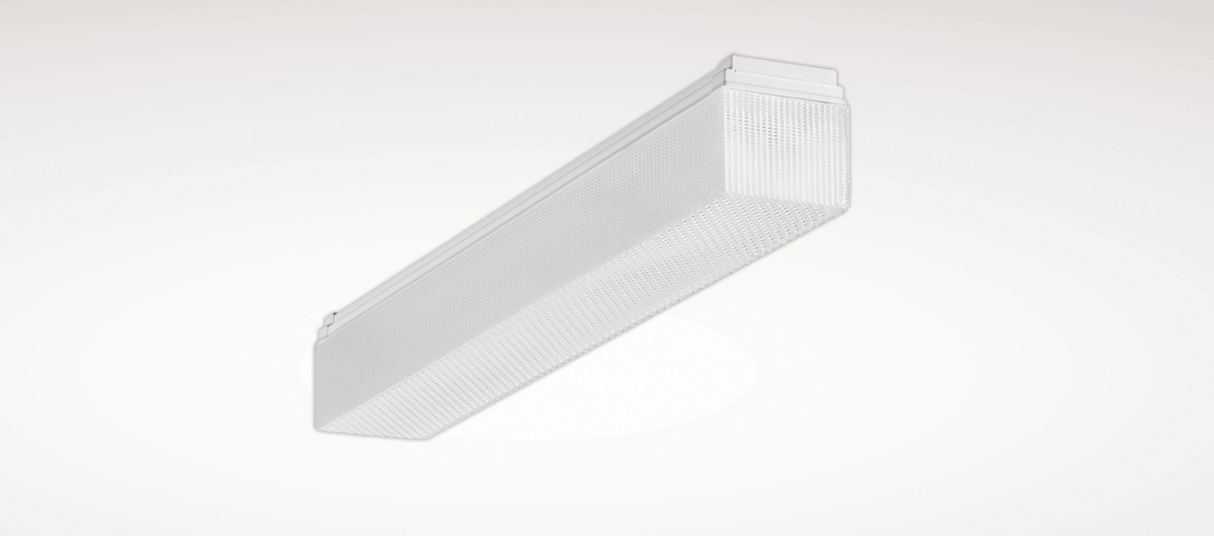

Rectangular surface-mounted luminaires for wall and ceiling mounting, dust-protected, for illuminating sales spaces, ancillary rooms and corridors.
Luminaire type
Surface-mounted LED luminaires for ceiling and wall mounting.
Applications
Sales rooms, Recreation rooms, Exhibition rooms, Corridors, Stairwells.
Optical system
With clear PMMA diffuser, prismatic. Glare evaluation (EN 12464-1) according to UGR < 25. Secure fixing of diffuser with inner spring-tensioned contact clips.
LED system
Luminaire luminous flux 1400 lm, connected load 13,00 W, luminous efficiency of luminaire 108 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 35,000 h, mean rated service life L70(tq 25 °C) = 50,000 h.
Luminaire body
Luminaire body sheet steel. Surface is solvent-free powder-coated white (RAL 9016). End caps of impact-resistant ABS. With integral cable channel on rear for cable routing with offset wall outlets. Side cable entry is in end cap. Dimensions (L x W) 633 mm x 111 mm, luminaire height 101 mm. Permissible ambient temperature (ta): -20 °C - +25 °C.
