Description

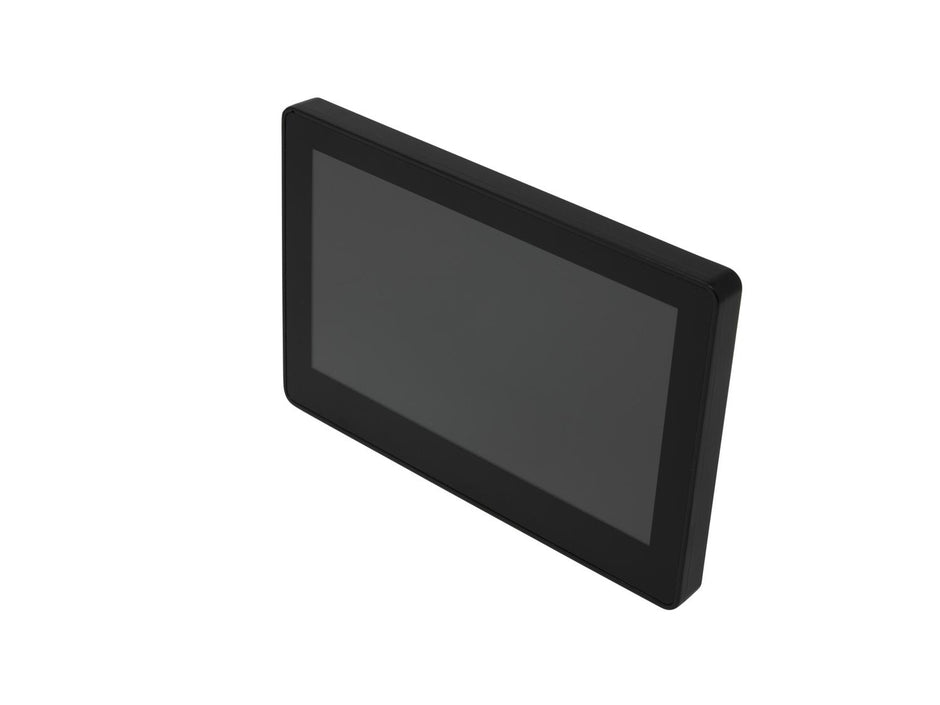

The SceneTouch7 Panel is a 7″ capacitive touch, full-colour, high-resolution lighting control panel designed to work with Helvar’s router system over Ethernet. An easy-to-use, gesture-controllable and intuitive interface that is customisable to different applications via the SceneStudio online design tool.
The product can be installed in solid or plasterboard walls using the supplied metal back box.
Key Features
• Capacitive touch lighting control panel
• 7″ High-resolution colour touch screen
• Gesture controllable
• Ethernet LAN port
• Wi-Fi
• DC power input (PSU included)
• Suitable for solid and plasterboard walls

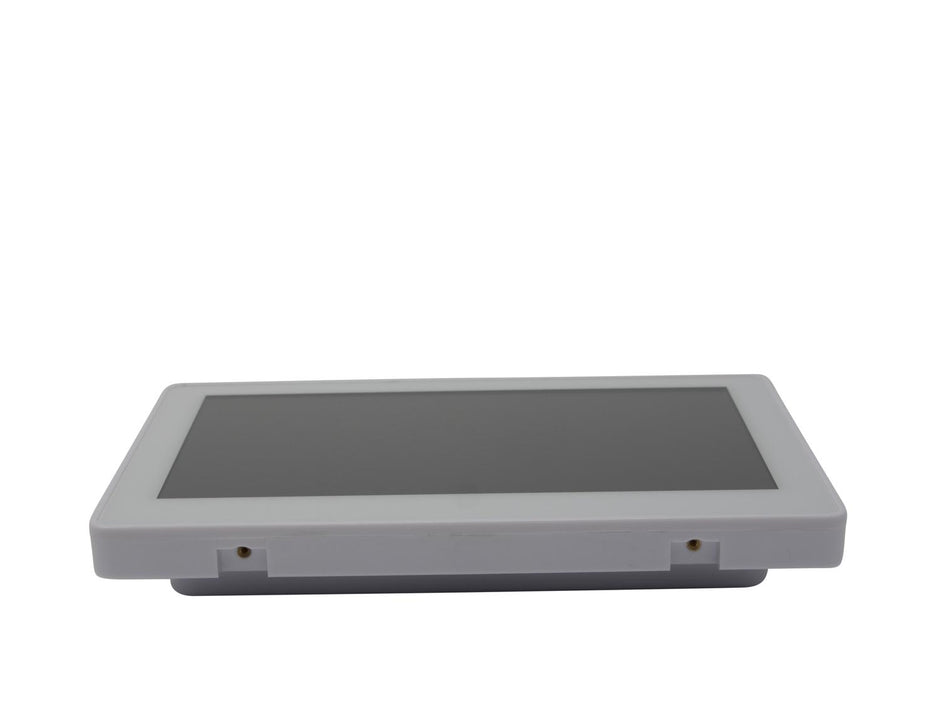

• Available in black or white
Technical Data
|
Display |
|
|
Screen: |
7˝ IPS |
|
Resolution: |
1024 × 600 |
|
Brightness: |
350 cd/m² |
|
Power |
|
|
Input voltage: |
9 VDC – 24 VDC |
|
Typical power consumption: |
6 W |
|
Connectivity |
|
|
LAN: |

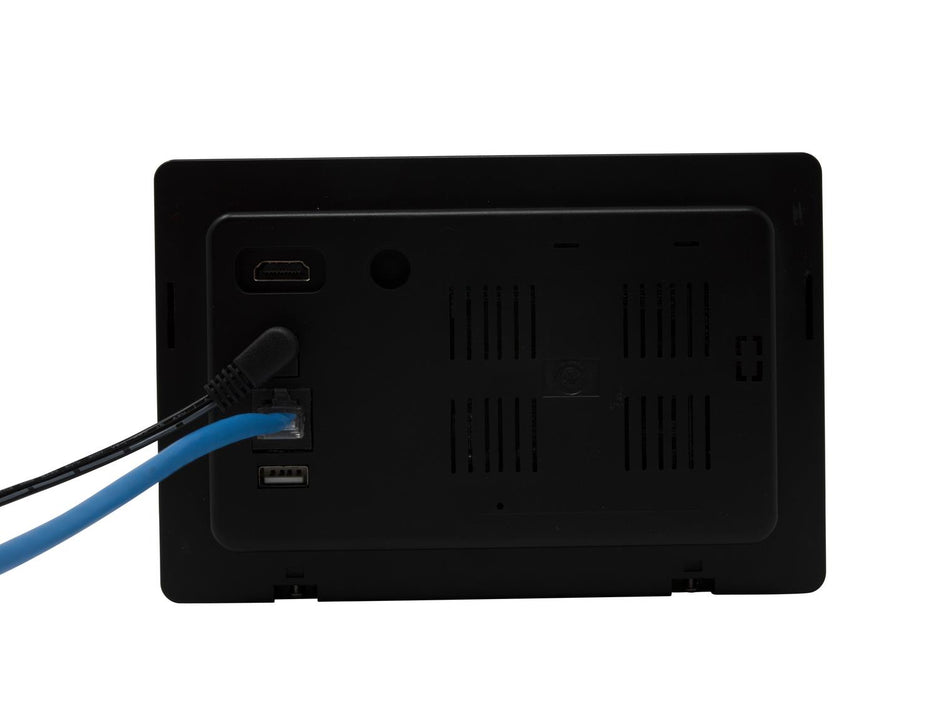

1 x RJ45 10/100 Mb/s, Cat 5E up to 100 m. For router network. |
|
Wi-Fi: |
802.11b/g/n |
|
USB interface: |
USB 2.0 |
|
Bluetooth®: |
V2.1 + EDR/BT v3.0/BT v3.0 + HS/BT v4.0 |
Mechanical data
|
Dimensions: |
181.5 mm × 121.5 mm × 25.8 mm |
|
Mounting: |
In-wall (solid and plasterboard walls) |
|
Weight: |
350 g |
|
IP code: |
IP40 (user access) |
|
Operating and storage conditions |
|
|
Ambient temperature: |
0 °C to +40 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Storage temperature: |
–20 °C to +70 °C |
|
Conformity and standards |
|
|
RED: |
EN 300 328EN 301 489-1EN 301 489-17 |
|
Safety: |
EN 60950-1 |
|
Environment: |
Complies with WEEE and RoHS directives. |
