444 Mini Input Unit
DIGIDIM Mini Input Unit (444)
The Mini Input Unit is a DALI-compatible interface, designed to allow customer specified switches, sensors, time clocks or other on/off control devices to be incorporated into a DIGIDIM lighting control system.
The Mini Input Unit is a small, prewired, encapsulated printed circuit board and is suitable for inclusion into all standard size back boxes together with a suitable mains-rated switch

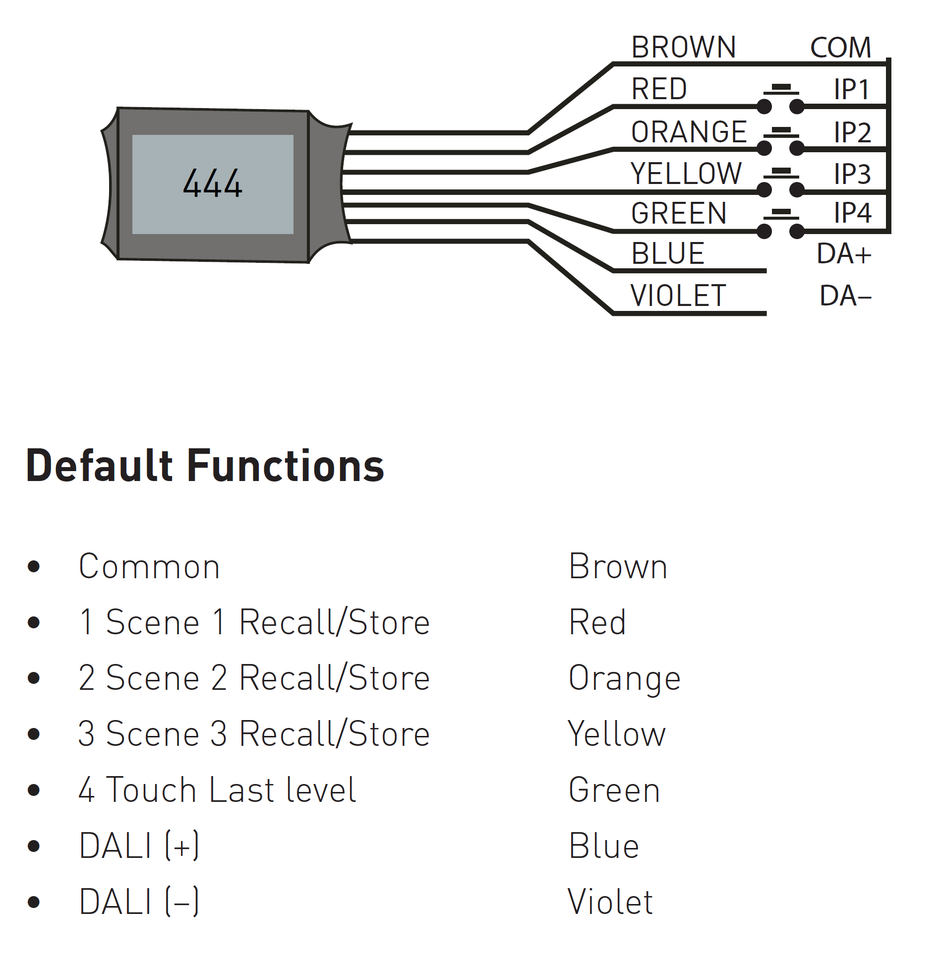

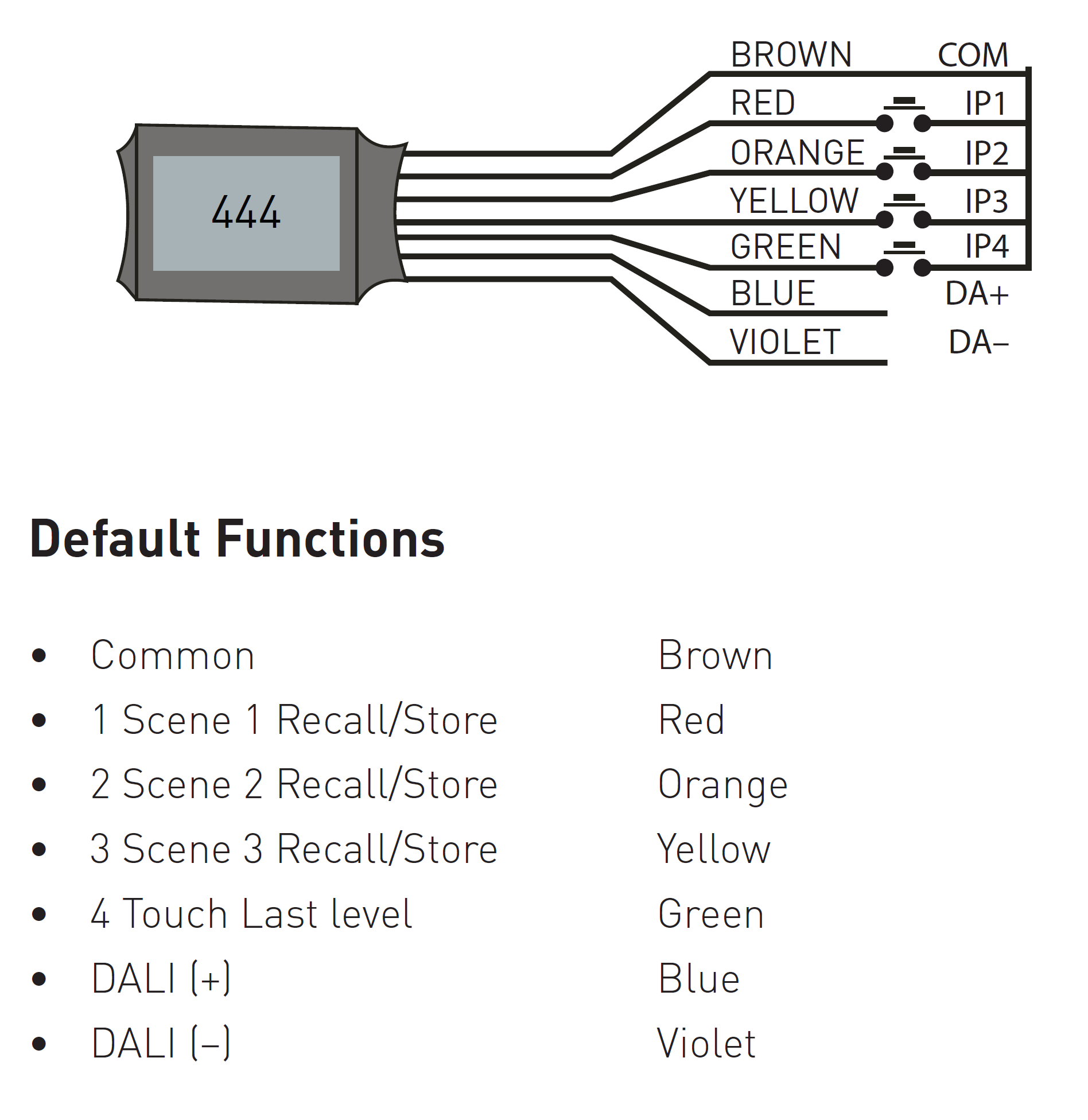

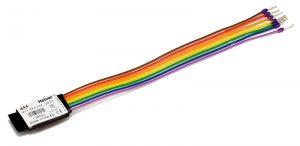

Mini Input Unit

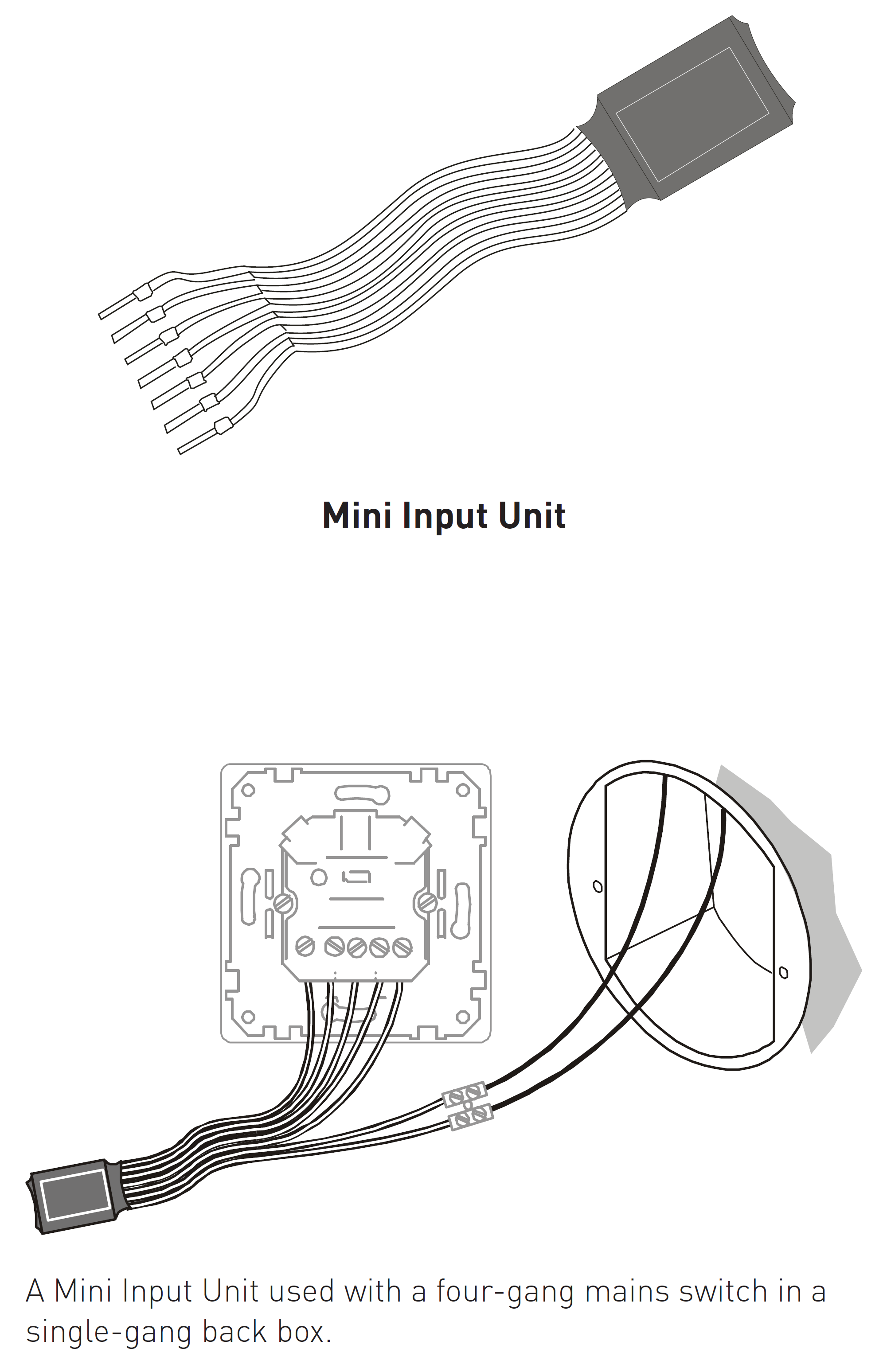

A Mini Input Unit used with a four-gang mains switch in a single-gang back box.
Key Features
- Preconfigured with touch dimmer inputs for two groups.
- Fits into all standard size back boxes and architrave style back boxes.
- Touch dimming with a momentary push switch.
- Can be used with momentary or latching switches.
- Fully programmable using DIGIDIM Toolbox software.
Technical Data
|
Connections |
|
|
Inputs: |
4 inputs (active low)COM Input Ground |
|
Overload protection: |
± 7 V |
|
Short-circuit current: |
0.5 mA maximum |
|
Debounce period: |
50 ms |
|
Voltage-free switched inputs: |
5 V nominal with switch open, must be less than 0.3 V with switch closed. |
|
Isolation: |
No isolation from DALI network:switches must provide user protection. |
|
Cable requirements |
|
|
DALI: |
DALI Ribbon cable terminated with 1.2 mm ferrules. |
|
Cable length |
170 mmCaution: Do not increase the length of the wires. This can cause interference problems. |
|
Power |
|
|
DALI supply output: |
None (Use external DALI power supply.) |
|
DALI consumption: |
10 mA |
|
Mechanical data |
|
|
Dimensions: |
Encapsulated printed circuit board |
|
Weight: |
10 g |
|
IP code: |
IP20 |
|
Mounting: |
For installation in a suitably enclosed location only. |
|
Operating conditions |
|
|
Ambient temperature: |
0 °C to +40 °C |
|
Relative humidity: |
Max. 90 %, noncondensing |
|
Storage temperature: |
−10 °C to +70 °C |
|
Conformity and standards |
|
|
EMC emission: |
EN 55015 |
|
EMC immunity: |
EN 61547 |
|
Safety: |
EN 61347-2-11 |
|
Environment: |
Complies with WEEE and RoHS directives. |
