TRILUX 8501RB2l/120-blue

Product description

Luminaire type

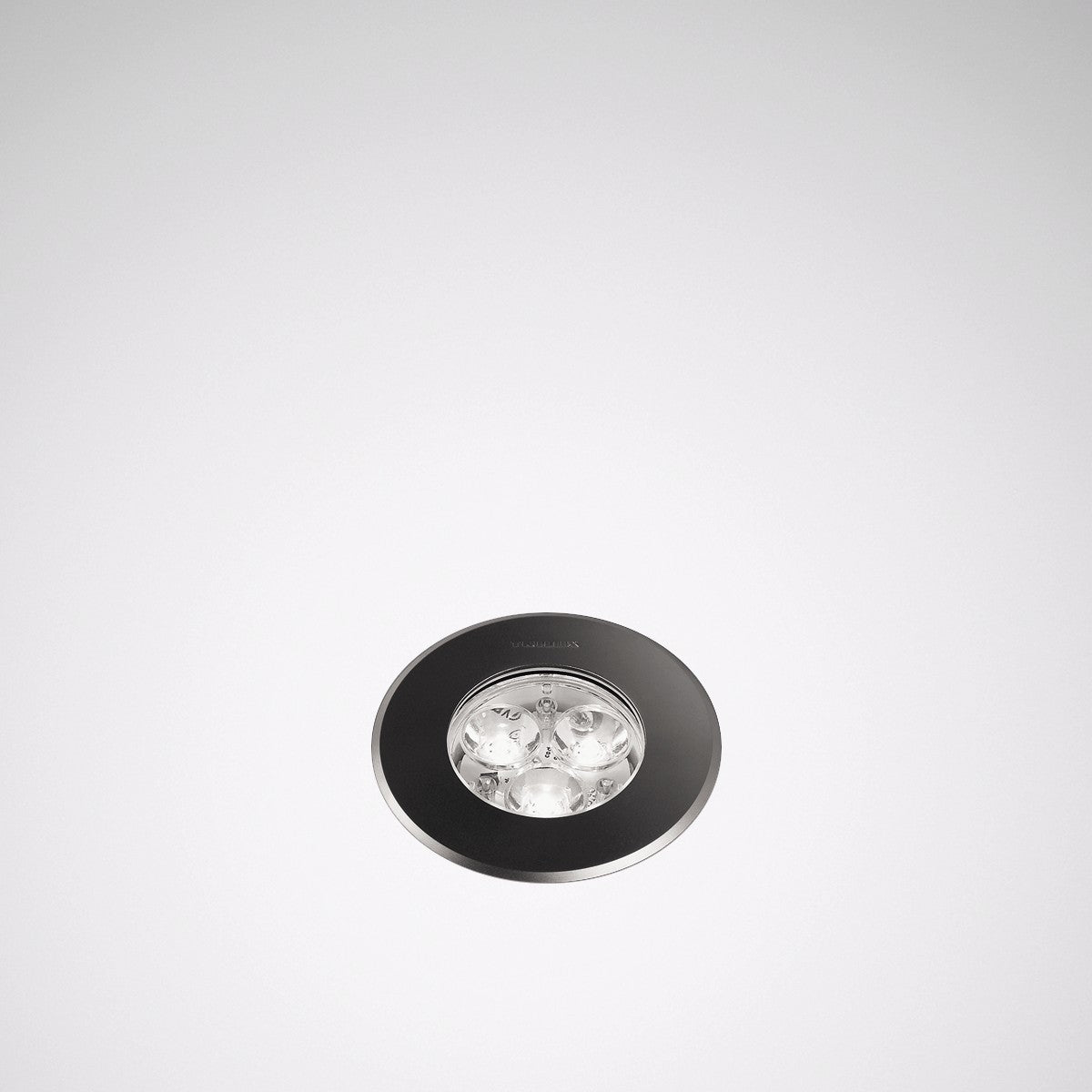

LEDGround-recessed spotlight for accent lighting, walkable and driveable.

Applications
Pedestrian zones, Arcades, Passages, Paths in parks and green areas, Residential facilities, Stairs, Access areas, Car parks, Light around the house, Accent lighting.

Mounting methods
for ground recessing. On-site, a foundation suitable for the load with adequate drainage must be ensured. Please order ground recessing bowl separately as accessory.

Optical system
As MLT version (Multi-Lens Technology), consisting of highly efficient UV and temperature-resistant lens systems in 4-fold configurations. With rotationally symmetrical wide angle light distribution. beam angle 50°.

LED system
LED system configured with 3 LEDs. Luminaire luminous flux 120 lm, connected load 8,00 W, luminous efficiency of luminaire 15 lm/W. Light colour blue. Further LED light colours available on request. Mean rated service life L80(tq 35 °C) = 50,000 h.

Luminaire body
Spotlight housing of die-cast aluminium, colour deep black, similar to RAL 9005, powder-coated. With fitted stainless steel cover ring, round. Cover of 15 mm thick, hardened glass, clear. Can be rolled over to 2000 kg. Ground recessing bowl of weather-resistant PVC tube. With luminaire mounting ring of glass-fibre reinforced PA6.

Electrical connection
Wired ready for connection. With connection cable fed outwards, 2 x 1.5 mm², sealed with appropriate protection rating. Inner connection compartment sealed with epoxy resin.

Electrical version
With electronic transformer, dimmable. Dimmable with leading edge dimmer. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
