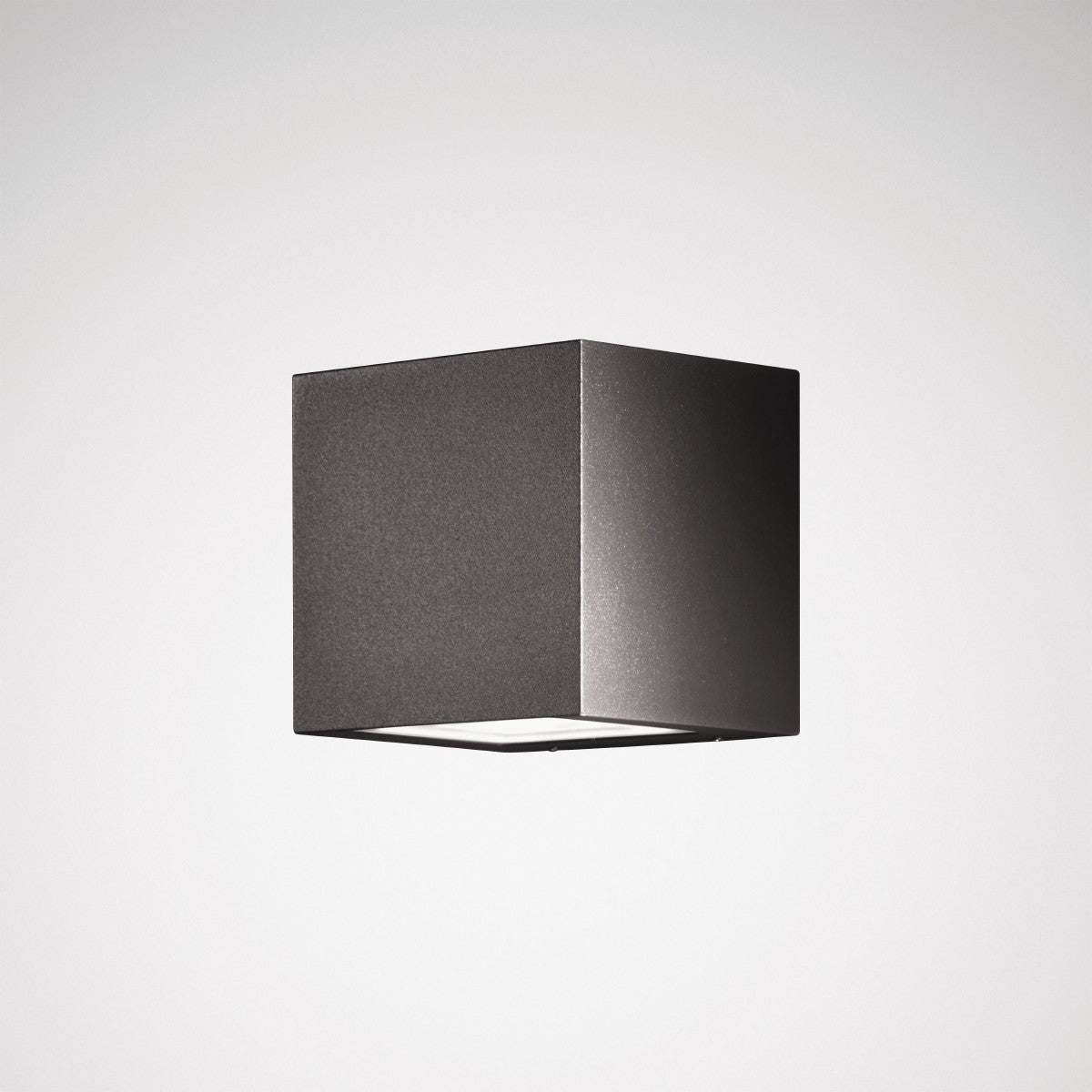

Luminaire type Cubic, decorative LED ceiling luminaire with IP65 protection rating
Applications For decorative, accentuating lighting solutions in outdoor areas, for building access areas, facades. Can also be used holistically inside buildings.
Mounting methods Surface-mounted luminaire for ceiling mounting. Luminaire is fixed with cast aluminium mounting plate.
Optical system Specular optic of photometrically high-efficiency aluminium. Cover of frosted glass. With direct light distribution. With rotationally symmetrical wide angle light distribution.
LED system Luminaire luminous flux 2500 lm, connected load 27,00 W, luminous efficiency of luminaire 93 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Mean rated service life L80(tq 25 °C) = 50,000 h.
Luminaire body Luminaire body of die-cast aluminium. Luminaire body anodised, primed and powder-coated. Colour anthracite, similar to DB 703. Dimensions (L x W): 150 mm x 150 mm, luminaire height 150 mm. On request the luminaire body can be provided without added cost in the following colours: black textured (Akzo Nobel 8118669, similar to RAL 9005), white textured (Akzo Nobel 8158870, similar to RAL 9016), grey textured (Akzo Nobel 8129595, similar to RAL 9006). Other colour variants are available for an additional charge in accordance with the RAL or DB colour code. Cover of hardened, semi-specular glass.
Electrical version With electronic transformer, digitally dimmable (DALI). The LED system with control gear unit is suitable for operation on direct voltage supply grids. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
