TRILUX Skeo Q-S1 RB15L

Possibilities squared around buildings

With the diverse Skeo Q LED range of luminaires the complete sector of light around the building can be carried out with a uniform design – ranging from facades to paths and entrances. The luminaires feature not only a linear design but also excellent lighting technology.



Luminaire type

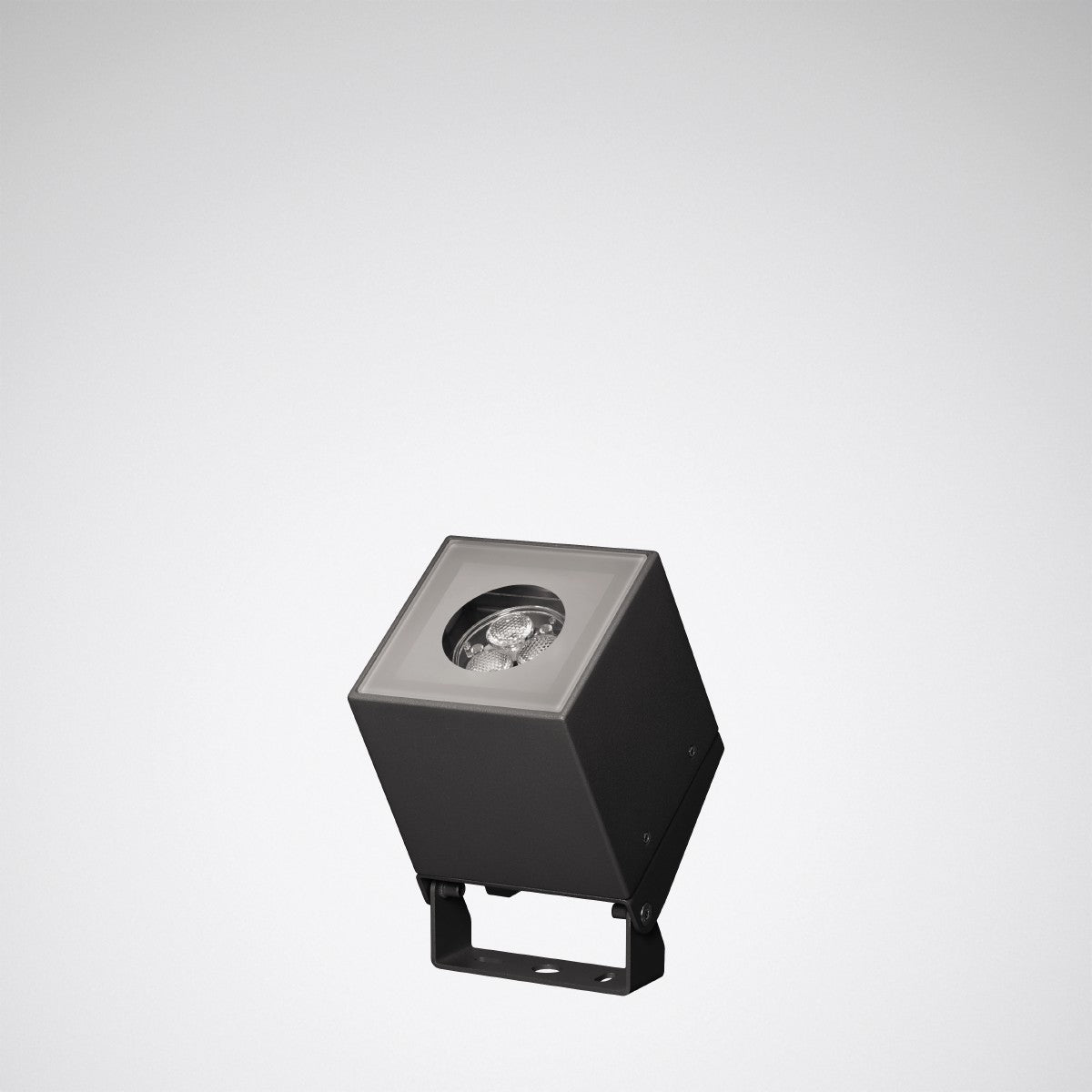

Pivotable surface-mounted LED spotlight with square cross-section and fixing bracket for outdoor applications.

Applications
For decorative, accentuating lighting solutions in outdoor areas, for building access areas, facades.

Mounting methods
For suspended or vertical mounting to solid surfaces and walls.

Optical system
High quality optical lens system. With rotationally symmetrical wide angle light distribution. beam angle 50°. Light emission aperture cover of hardened, highly transparent glass.

LED system
LED system consisting of 3 high-efficiency LEDs. Luminaire luminous flux 450 lm, connected load 6,00 W, luminous efficiency of luminaire 75 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Further LED light colours available on request. Mean rated service life L80(tq 25 °C) = 50,000 h.

Luminaire body
Luminaire housing of aluminium profile, end elements of die-cast aluminium. With housing screws of stainless steel. Luminaire housing highly weather resistant, powder-coated. Colour anthracite, similar to DB 703. Further colours available on request. Dimensions (L x W): 100 mm x 100 mm, luminaire height 500 mm.

Electrical version
With electronic transformer, switchable. The LED system with control gear unit is suitable for operation on direct voltage supply grids. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
