A FILIGREE RECESSED LUMINAIRE FOR BIG LIGHT ACCENTS

Luminaire type

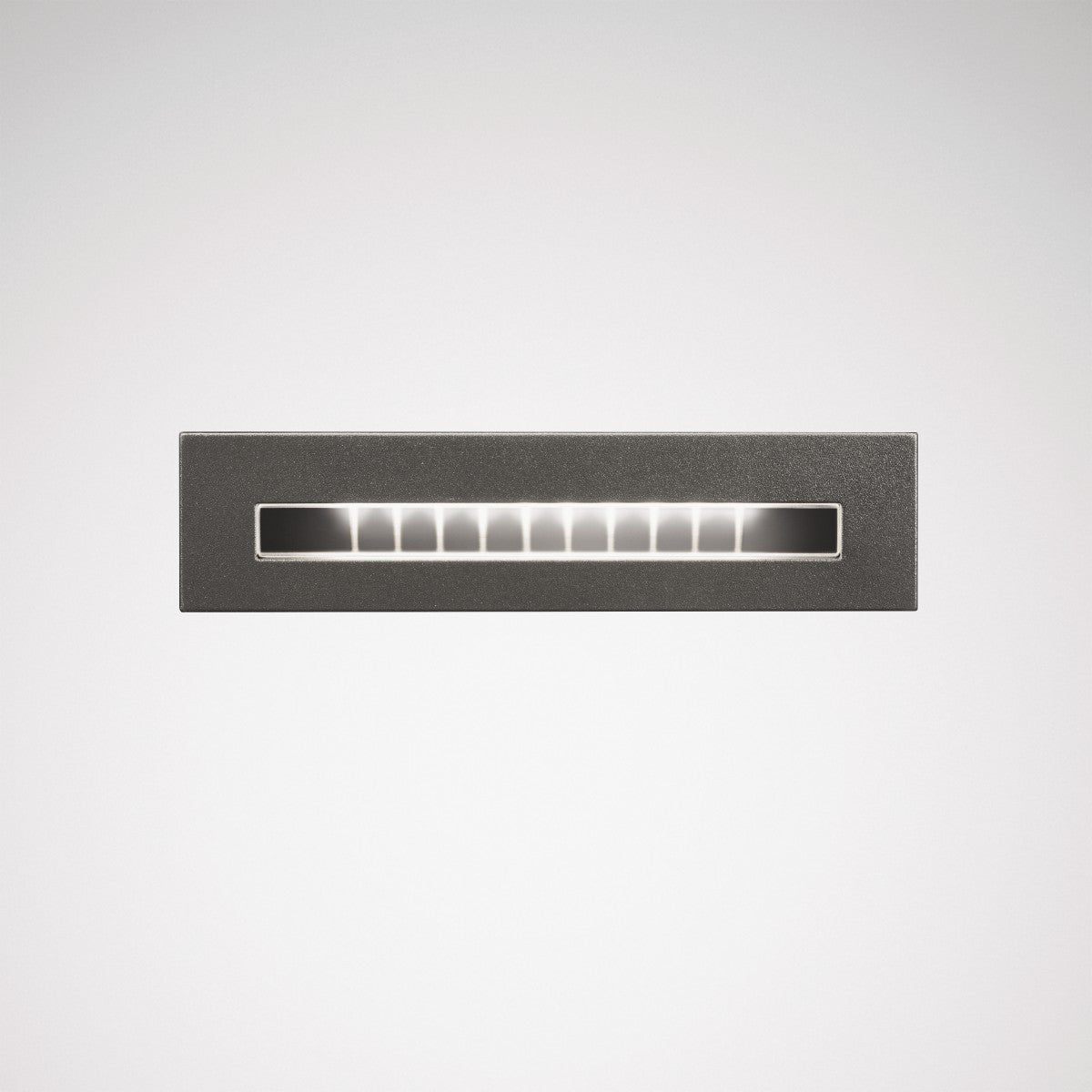

Decorative wall luminaire of rectangular design.

Applications
Arcades, Passages, Residential facilities, Stairs, Access areas, Light around the house.

Mounting methods
For installation with a mounting enclosure in solid walls of stone or poroton. Recessing flush with wall. Recess depth > 72 mm. Suitable mounting enclosure is available as a separately ordered accessory. For plastering in or sealing in wall.

Optical system
Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetrical medium-wide light intensity distribution. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Retrofitting a rear shielding is possible, available as accessory to be ordered separately.

LED system
Luminaire luminous flux 100 lm, connected load 5,00 W, luminous efficiency of luminaire 20 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) R_a > 80. Mean rated service life L80(t_q 25 °C) = 50,000 h.

Luminaire body

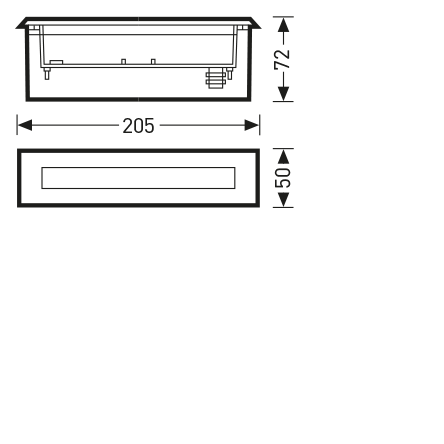

Luminaire body of die-cast aluminium. High impact-resistance. Colour anthracite, similar to DB 703 with metal effect, powder-coated, highly weather resistant. Luminaire length 72 mm, Luminaire width 205 mm. On request the luminaire body can be provided without added cost in the following colours: black textured (Akzo Nobel 8118669, similar to RAL 9005), white textured (Akzo Nobel 8158870, similar to RAL 9016), grey textured (Akzo Nobel 8129595, similar to RAL 9006). Other colour variants are available for an additional charge in accordance with the RAL or DB colour code.

Electrical version
With electronic transformer, switchable. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
